Aeotec Nano Shutter

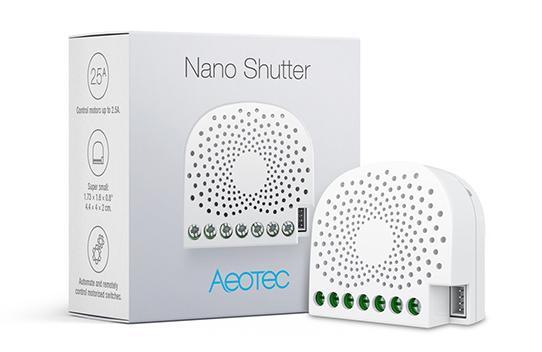

Aeotec Nano Shutter is an easy-to-install, affordable Z-wave device that automatically integrates your motor driven home accessories.

Aeotec Nano Shutter is a motor-controller that connects to your existing motor-powered devices (motorized shutters, blinds, curtains, windows, etc.) and makes them available for control, automation and scheduling through Z-Wave. To install it, you can wire it directly to the motor and/or any existing wall switch that controls the motor.

Aeotec Nano Shutter has an integrated security standard S2 (Security2). For any motor that controls access points, such as doors and protective covers, the Z-Wave S2 is crucial. The S2 enhances the Nano Shutter with next-generation anti-hacking features, including AES-128 bit encryption and ECDH key exchange.

Aeotec Nano Shutter е с интегриран стандарт за безопасност S2 (Security2). За всеки двигател, който контролира точките за достъп, като врати и защитни капаци, Z-Wave S2 е от решаващо значение. S2 подобрява Nano Shutter със следващо поколение анти-хакерски функции, включително AES-128 битово криптиране и ECDH обмен на ключове.

It is a Z-Wave Plus device which has up to 250% faster response time and up to 67% better wireless range compared to previous generations Z-Wave.

* For indoor use only. Should be installed at dry place in fireproof flush box. Should not be installed in metal boxes which may affect the Z-Wave signal.

Main features:

• Dimensions: 42.5 x 40 x 20 mm
• Z-Wave repeater: Yes
• Security features: S2
• Power: 120 – 240VAC  50 / 60Hz
• Max current: 2.5A
• Self consumption: <0.8W
• Operating temperature: 0°C до 40°C
• Operating humidity: 8% до 80%
• Wireless range: up to 150 open space
