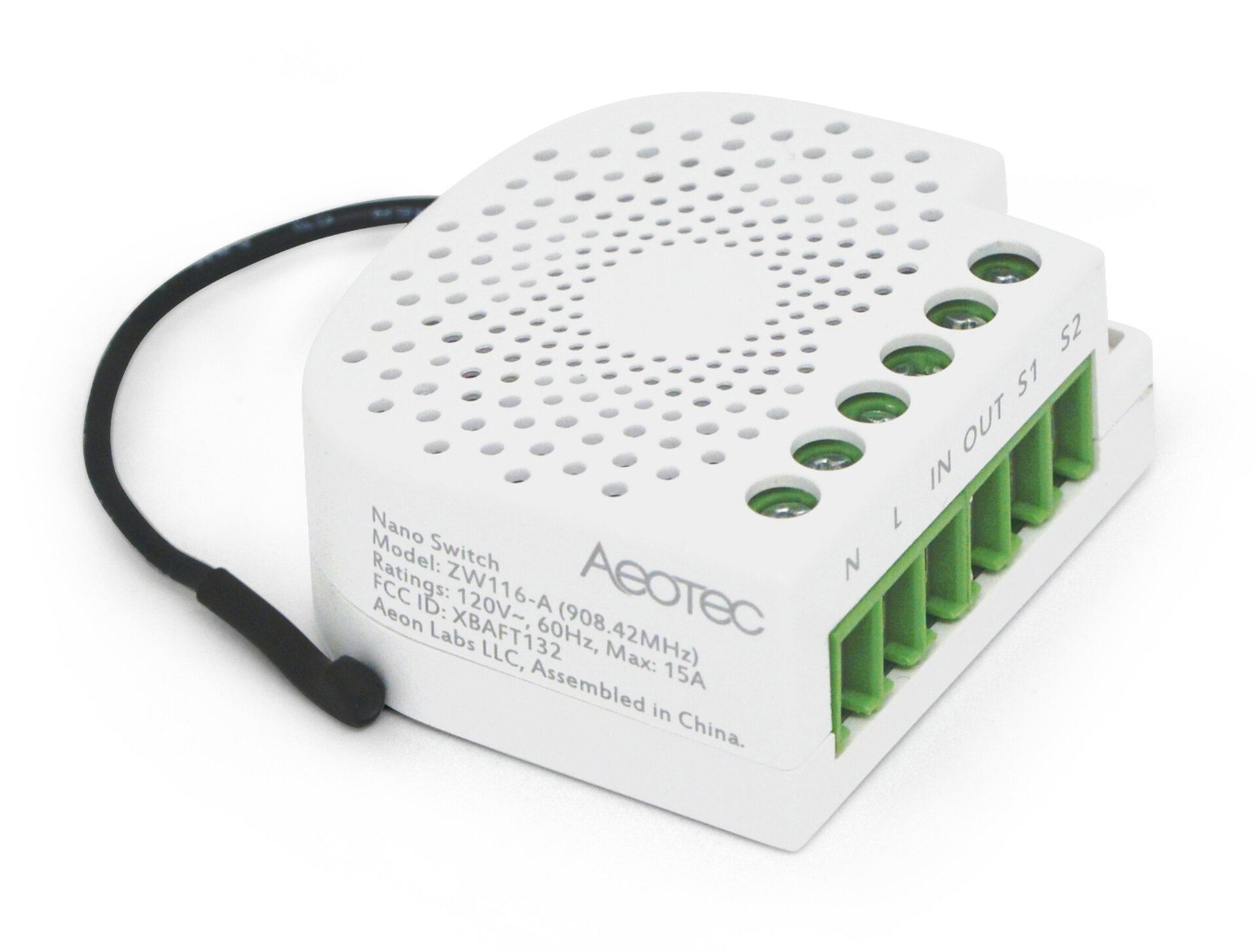

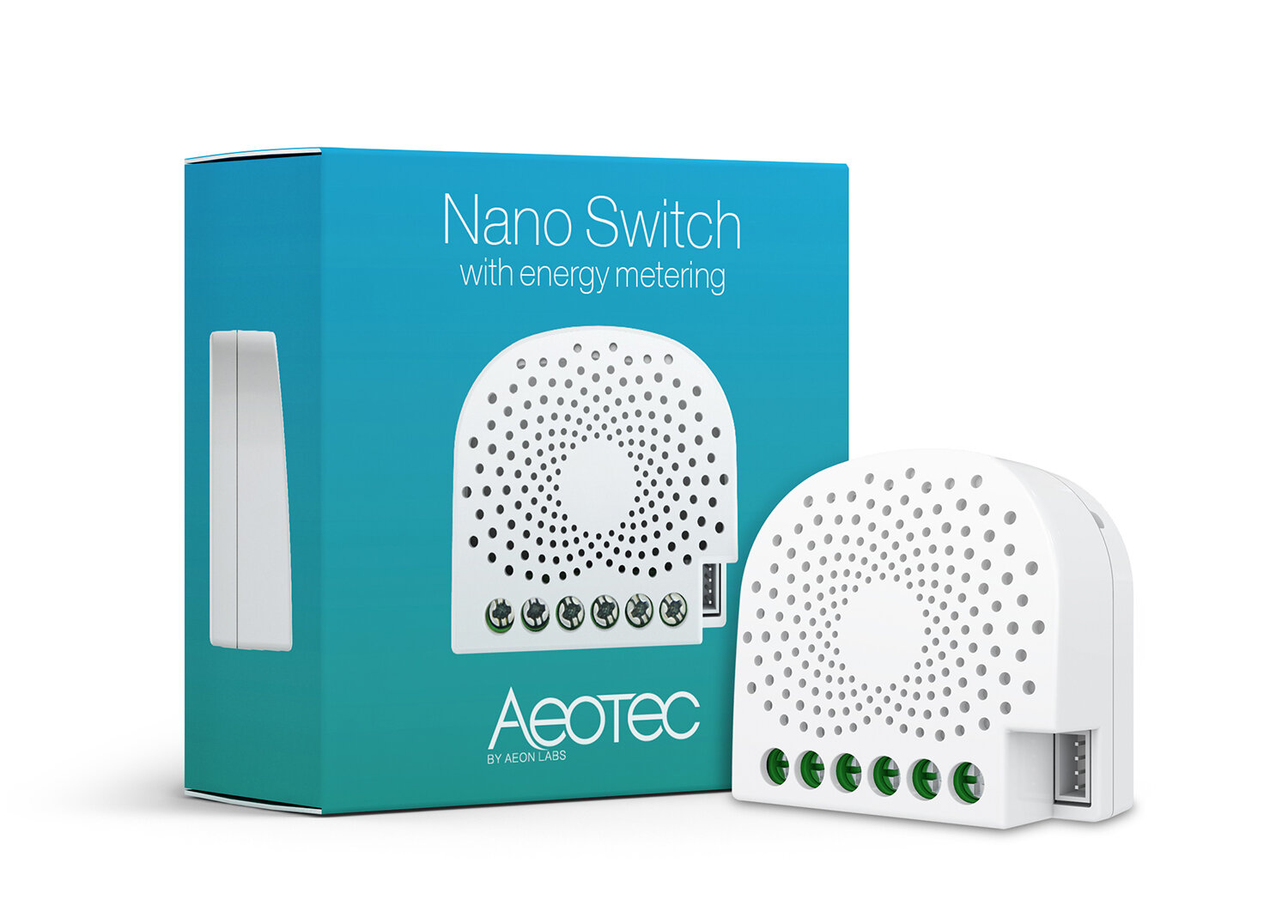

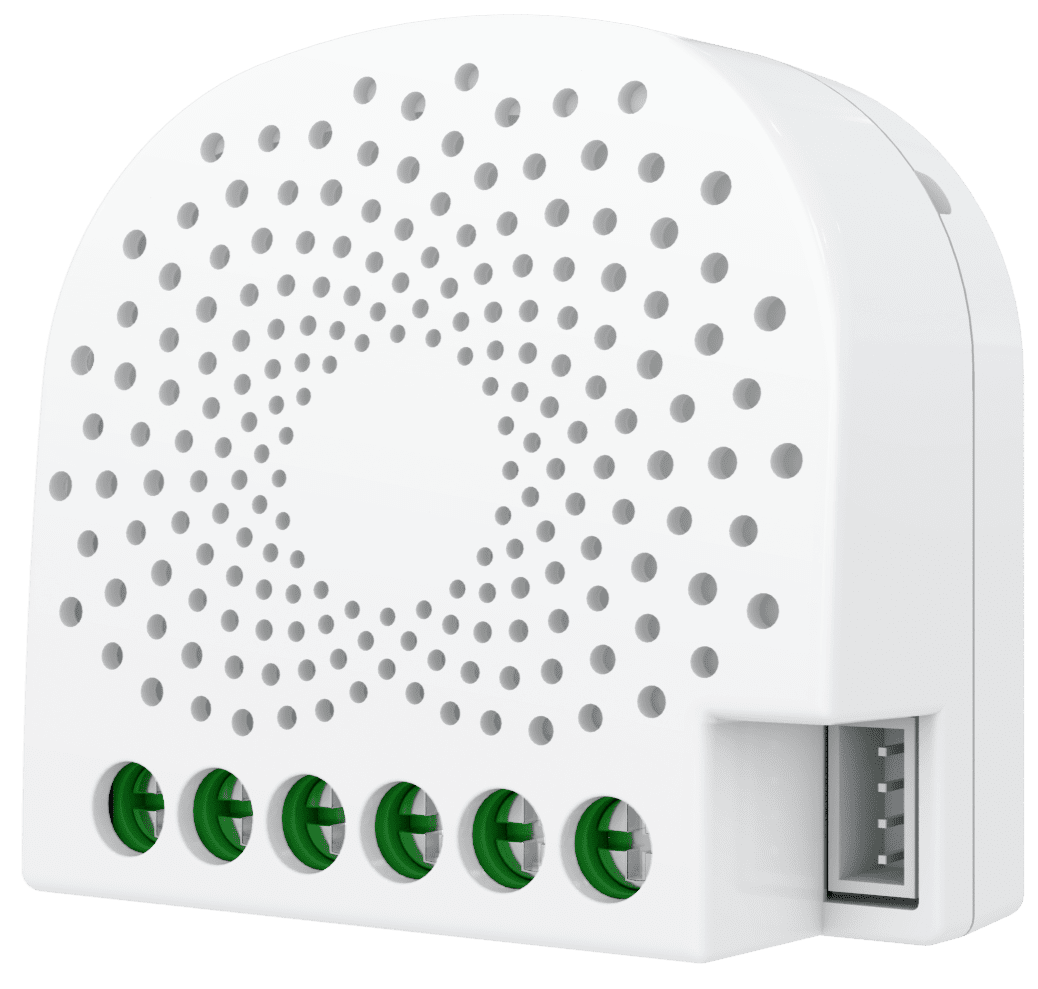

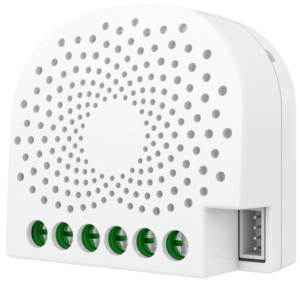

Aeotec Nano Switch with Power Metering

Aeotec Nano Switch with Power Metering is a single relay that can be integrated into all non-dimmable electrical installations (lighting, sockets …) to be integrated into the Z-Wave network. In this way, the connected load can be switched both wirelessly via Z-Wave and locally via an existing wall switch. The relay has an integrated power measurement function, which allows to detect the exact energy consumption of the connected load.

The compact radio module (60% smaller than its previous Micro Smart Switch) is placed in the wall box just behind the normal wall switch. The solution works with all key designs. It is recommended to use wall boxes with a depth of 65 mm. But even smaller boxes with a depth of only 45 mm can be used if there is enough space behind the key. The available space depends on the size of the switch, the size of the wall box and the amount of additional wiring placed in this box.

Features:

• Maximum load: 2300W
• Integrates existing installations (lighting, sockets) into the Z-Wave network
• Energy measurement
• Voltage: 230V, 50Hz
• Wiring: Zero wire required
• Wireless technology: Z-Wave Plus
