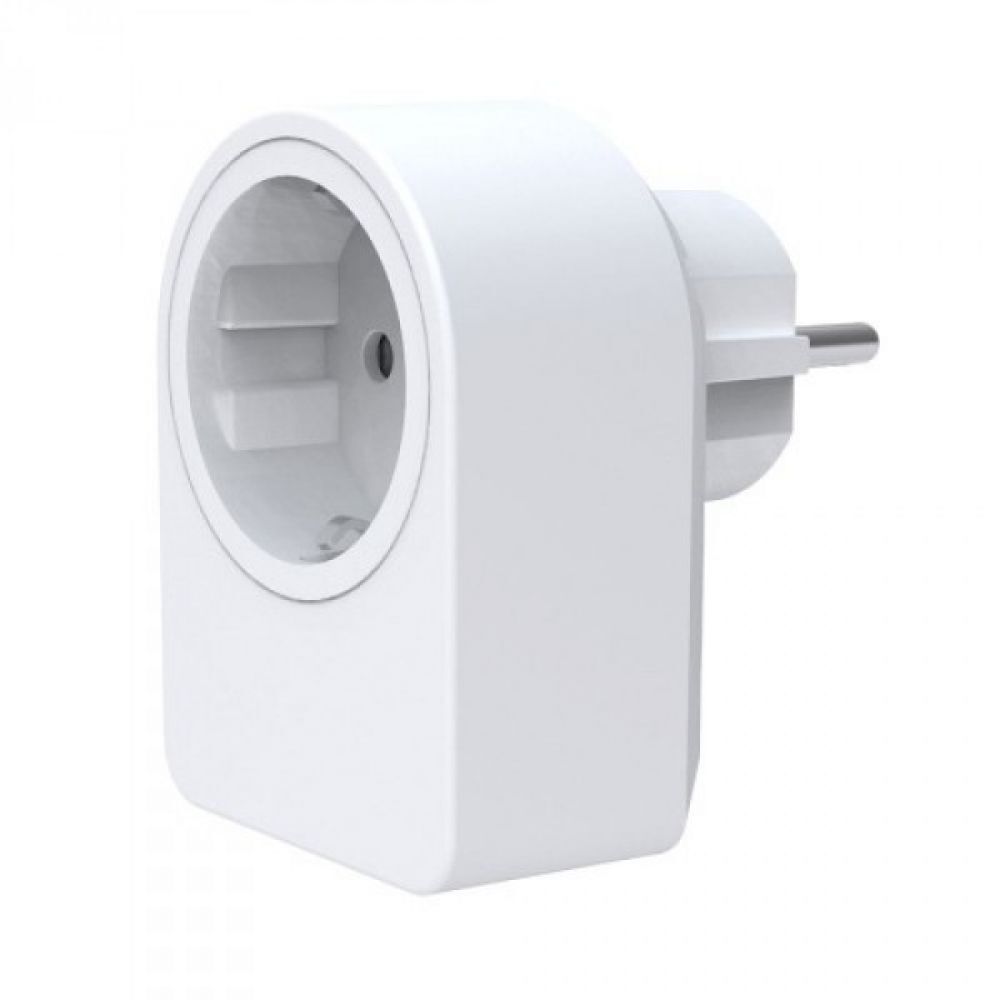

Aeotec’s Smart Switch Gen5 – Aeon Labs

Aeotec’s Smart Switch Gen5 allows you to control lighting or other electrical devices via Z-Wave commands. It is designed to operate with a maximum power of 3500W

It can be controlled via remote control, PC software or any Z-Wave controller in your network.

This module has the function of measuring energy consumption – instantaneous power in W and total energy consumption in kWh.

It is designed with the latest Z-Wave 500 series chip, providing a 50% increase in radio range and 250% increase in communication speed.

The Z-Wave module acts as a wireless repeater with other modules to provide full coverage of your home, if you already have an existing network you need a Z-Wave controller to integrate the module into it.

Features:

• Remote control of the lighting or appliance.
• Measurement of current and total consumption
• Charging control via built-in button
• Built-in LED status of the button
• 50% smaller than the original Aeon Labs Smart Switch
• Overload protection
• Part of the Aeon Labs Gen5 range
• Secure radio communication via AES-128
• Z-Wave 500 series chip
• 250% faster communication than standard Z-Wave devices
• Optimized antenna range – Up to 150m
• Easy to use and install
