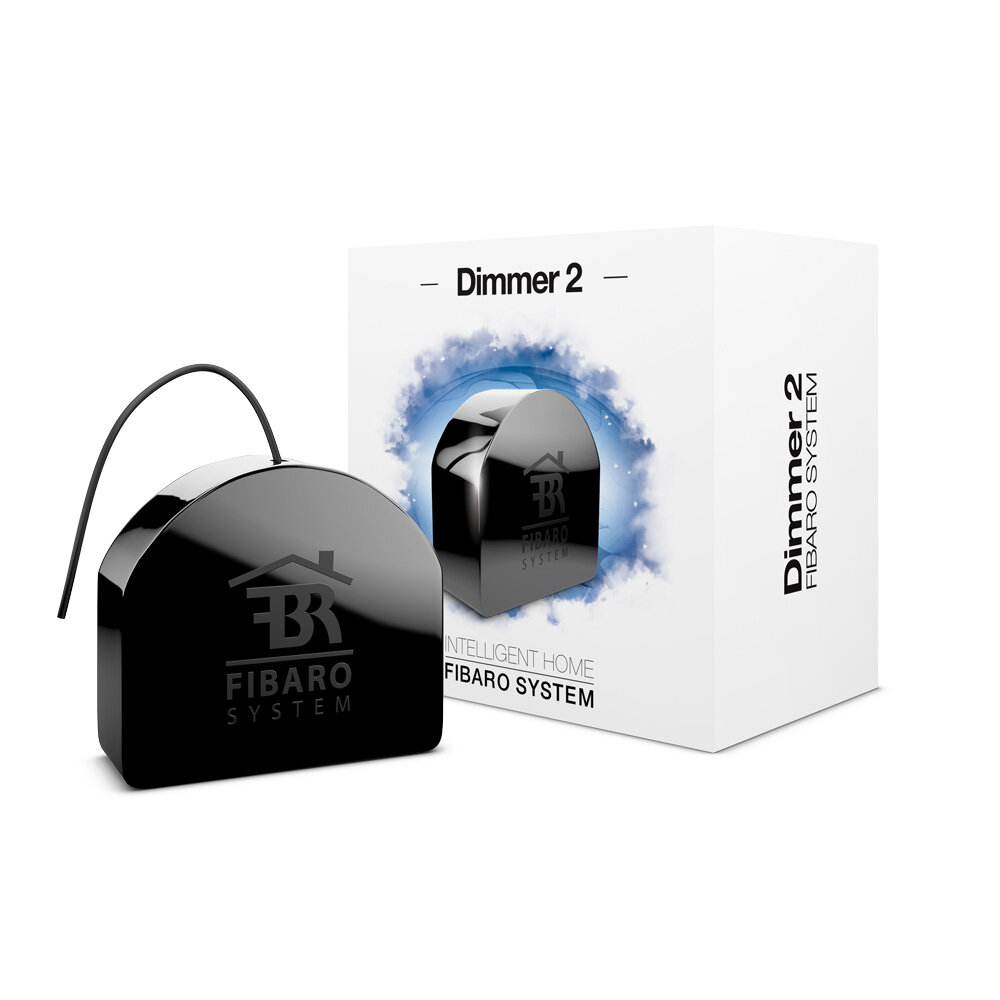

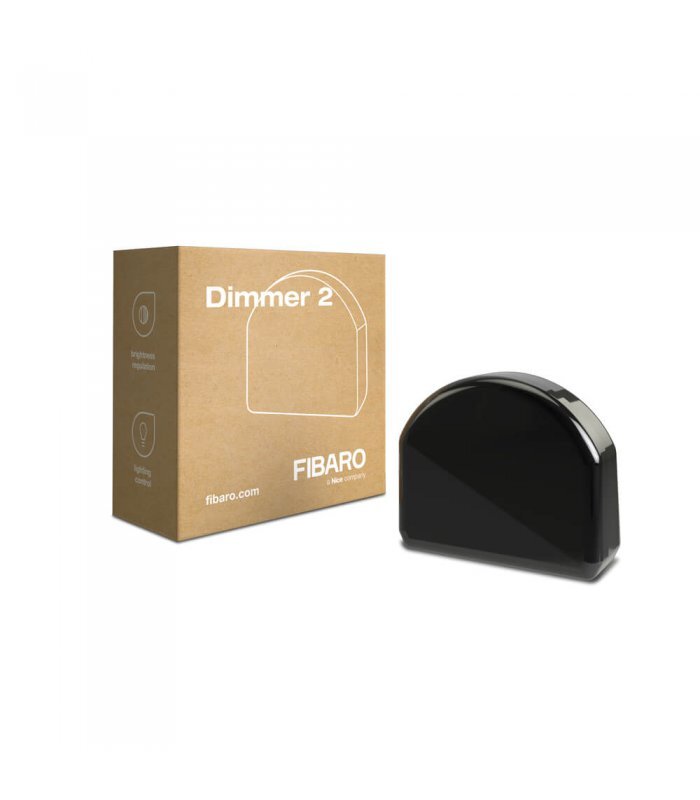

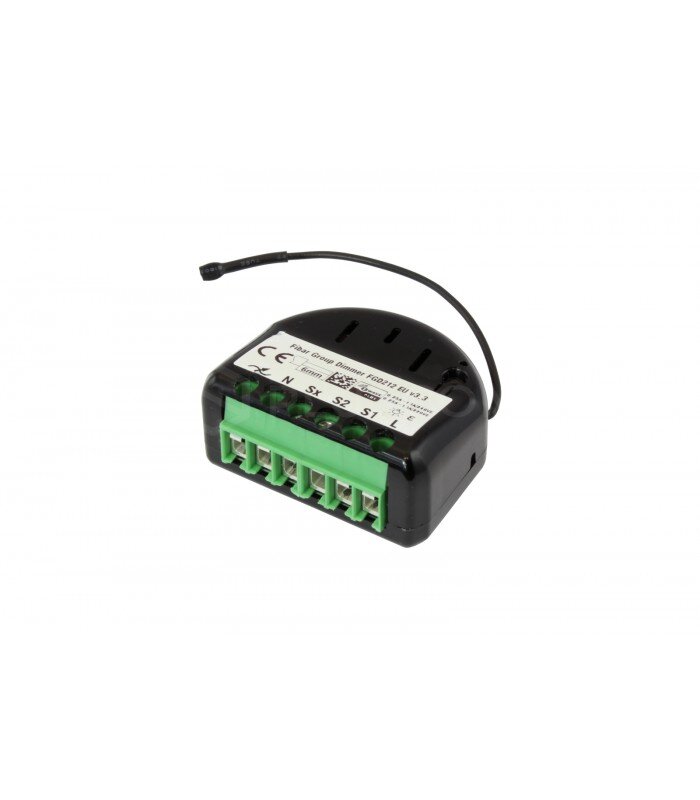

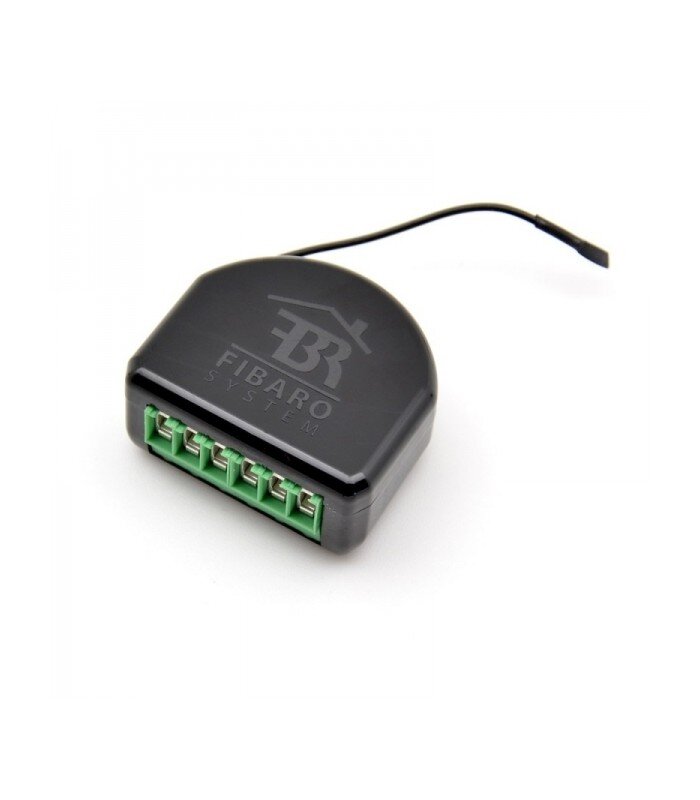

Fibaro Dimmer 2

Fibaro Dimmer 2 is a universal dimmer with built-in power measurement. The device allows remote control of many different light sources, while also extending the life of the bulbs and reducing the use of electricity.

It has automatic overload protection and has a “soft start” function. Works as a dimmer, with two-wire or three-wire connection. For older luminaires, only the on / off function can work.

There is a built-in RGB LED light that helps identify if the device is within range of a network, making installation very easy.

As a dimmer it works with: Conventional fluorescent lighting fixtures; Halogen luminaires operating at 230V; Halogen luminaires operating at 12V; Dimmable LED lighting fixtures

Features:

• Power supply: 100-240V~ 50/60Hz
• Power consumption: < 1.3W
• Operational temperature: 0-35°C
• For installation in boxes: Ø ≥ 50mm
• Operational current: 0.25-1.1A
• Device temperature protection: 105°C
• Radio protocol: Z-Wave (500 series chip)
• Radio signal power: up to 1mW
• Radio frequency: 868.4
• Range: up to 50 m outdoors, up to 40 m indoors (depending on building materials)
• Dimensions (L x W x H): 42.5 x 38.25 x 20.3 mm
