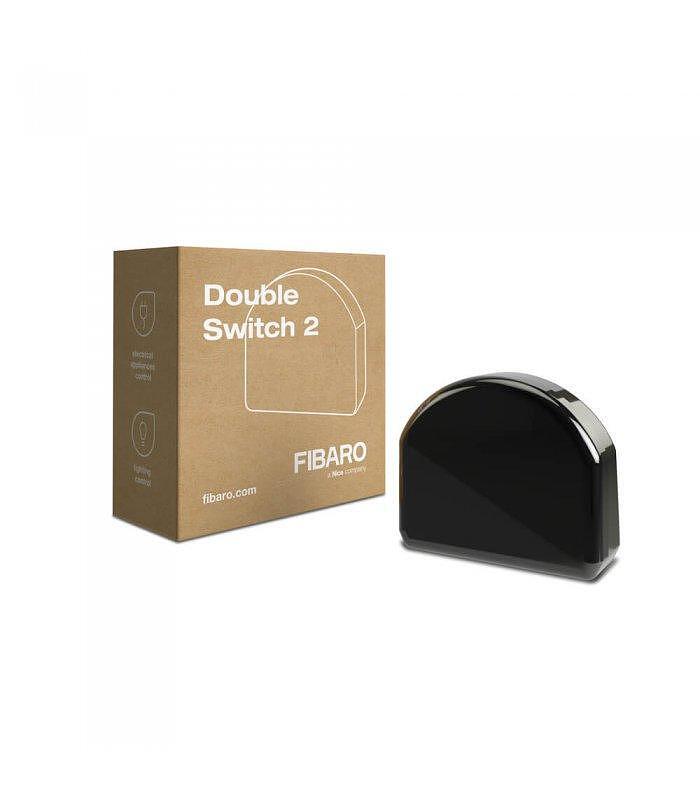

Fibaro Double Switch 2

Fibaro Double Switch 2 is designed for installation in standard wall console boxes and / or behind existing electrical switches. It is possible to turn on and off two independent circuits with a total consumption of up to 1.5 kW. The relays can be controlled both by Z-Wave and by a standard electrical switch connected directly to this module.

Advantages:

     Control via electric key, other Fibaro devices or Z-Wave hub
     Low power consumption <0.8W
     Radio signal power up to 1mW
     Maximum load (per channel): 6.5A (resistive)
     Maximum total load: 10A (resistive)
     Microprocessor control
     The smallest device of this type in the world!
     Mounting in a standard cantilever box with a diameter of ≥50mm

Features:

• Power supply: 100-240V~ 50/60 Hz
• Maximum load (per channel): 6.5A (Resistive)
• Maximum total load: 10A (Resistive)
• Operating temperature: 0-35°C
• For installation in boxes: Ø ≥ 50mm, depth ≥ 60mm
• Radio protocol: Z-Wave (500 series chip)
• Radio signal power: up to 5dBm
• Radio frequency: 868.4 MHz EU;
• Range: up to 50m outdoors, up to 40m indoors (depending on terrain and building structure)
• Dimensions (L x W x H): 42.5 x 38.25 x 20.3 mm
