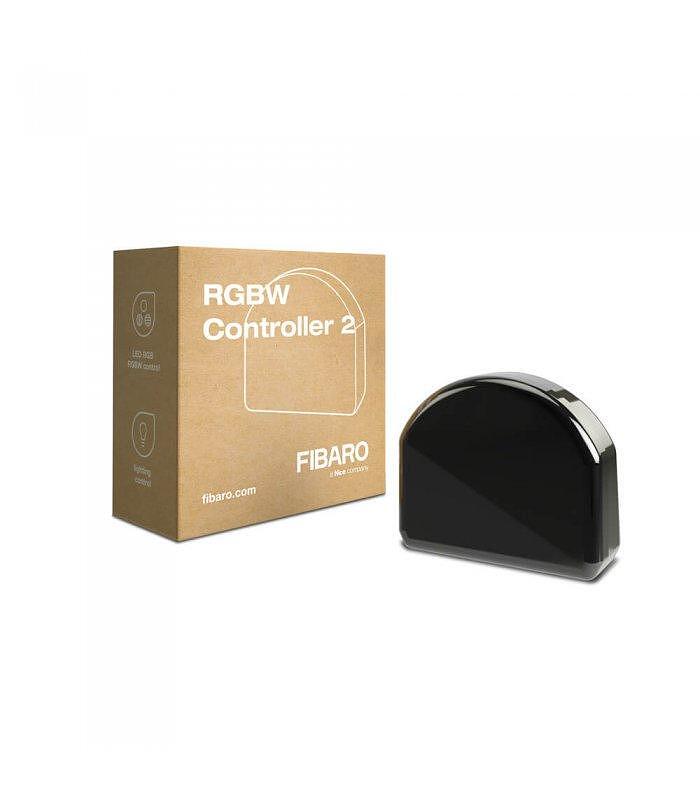

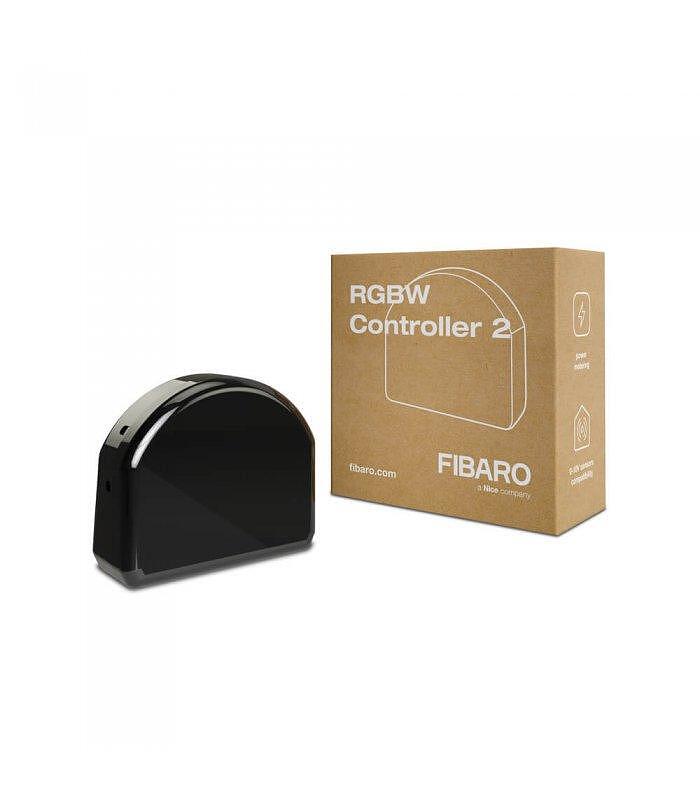

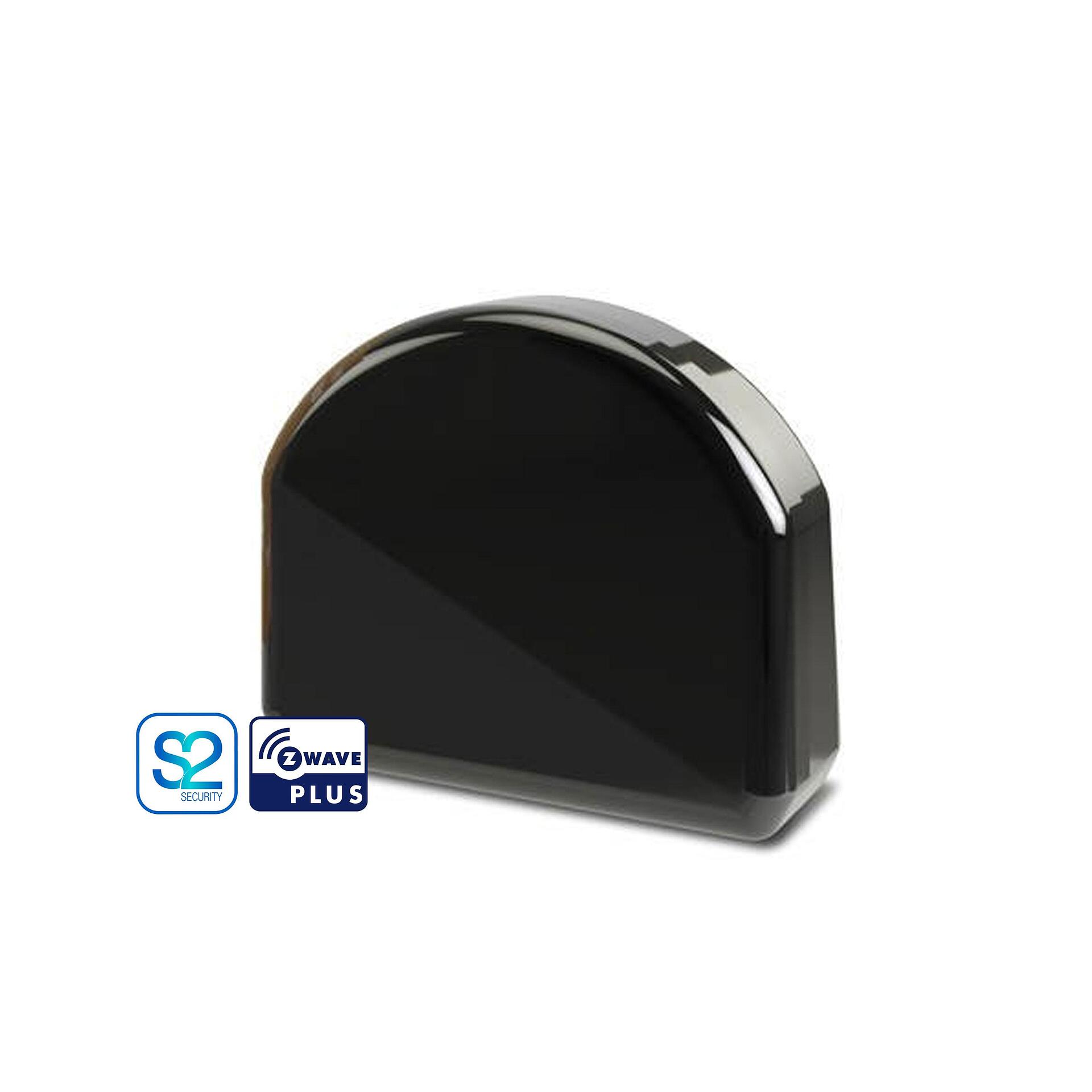

Fibaro RGBW Controller 2 is a universal RGB / RGBW controller compatible with Z-Wave Plus. The FIBARO RGBW 2 controller uses a PWM output signal that allows it to control LED, RGB, RGBW, halogen lights and other resistive loads. It can also measure the active power and energy consumed by the load.
Controlled devices can be supplied with 12 or 24 V DC. The inputs support torque switches and 0-10 V analog sensors, such as temperature sensors, humidity sensors, light sensors and more.
Fibaro RGBW Controller 2 is an inconspicuous module that allows you to combine the colors of the lights in your home. Helps create a climate for work, focus or a moment of relaxation.
Technical specifications :
- Power supply: 12 / 24V DC ± 10%
- Rated load current: 6A per channel, total 12A for all outputs
- Output power: 144W combined for 12V, 288W combined for 24V
- Inputs: 4 inputs, 0-10V (configurable download) or binary
- Outputs: 4 outputs, PWM
- PWM frequency: 244Hz
- Maximum length of wires: 2m
- Operating temperature: 0–40 ° C
- Storage temperature: -40–60 ° C
- Radio protocol: Z-Wave (500 series chip)
- Radio frequency: 868.4 / 869.85 MHz EU
- Transmission power: EIRP max. + 2dBm
- Range: up to 50 m outdoors, up to 40 m indoors (depending on the terrain and structure of the building)
- Recommended conductor cross-sectional area: 0.2–2.0 mm2 (24–14 AWG) (depending on load current)
- Dimensions (L x W x H): 42.35 x 36.90 x 17.5 mm
