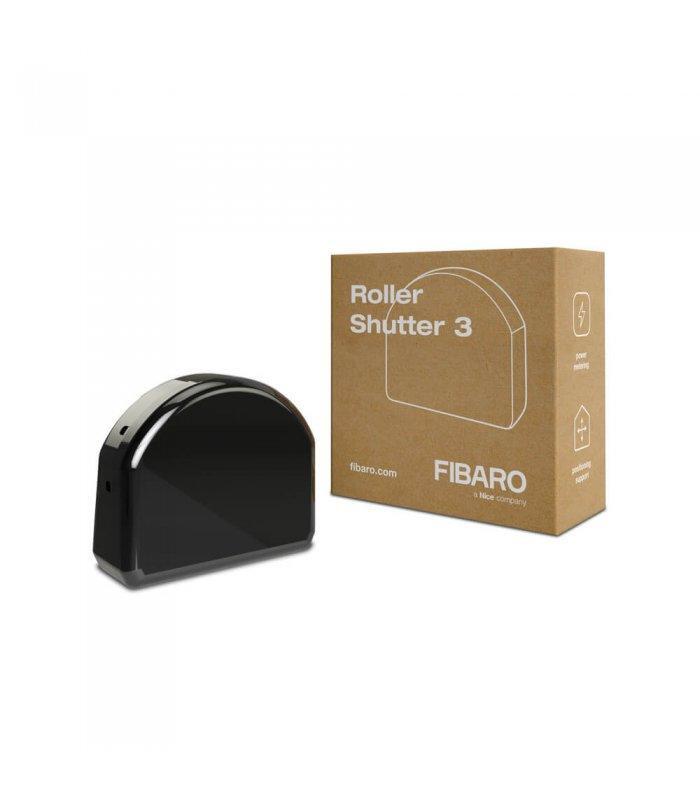

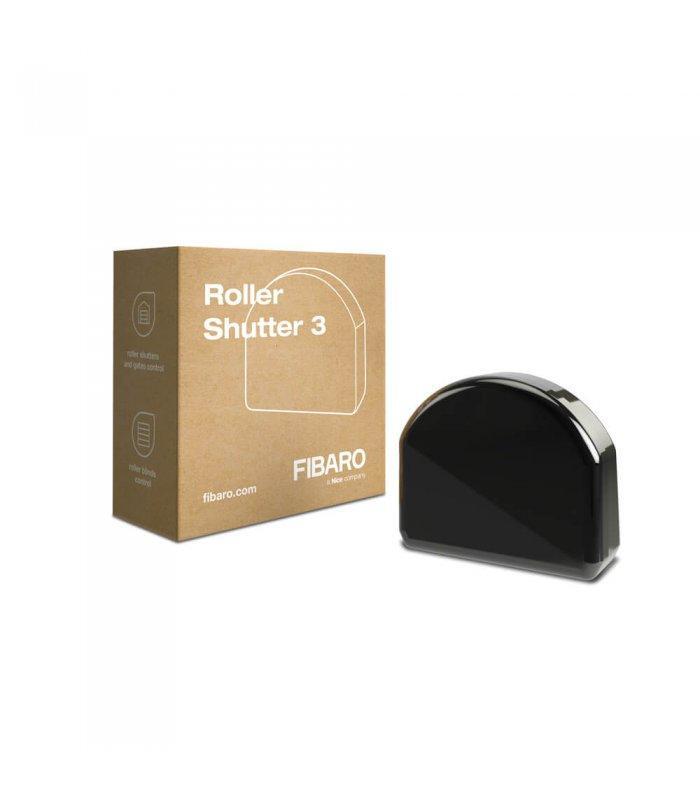

Fibaro Roller Shutter 3 is the third generation Z-Wave Plus module from the Fibaro Group for wireless control of blinds, shutters, garage doors and awnings. It’s small size and improved firmware allow easy installation and ensure compatibility with all types of electric (AC) motors! You no longer need to know what type of engine you need to drive, or whether it uses a mechanical or electrical braking system. Fibaro Roller Shutter 3 works with any AC motor!
The perfect calibration of the Fibaro Roller Shutter 3 module ensures that the module accurately recognizes the position or condition of your blinds or doors. The calibration system prevents incorrect detection of the open / closed position.
To improve control, Fibaro Roller Shutter 3 has five modes that allow it to perfectly control any roller blinds, shutters or garage doors according to your needs. You can select a wireless control mode that exactly matches the type and functionality of your device. The controller (Fibaro Home Center) displays each mode with its own icon and configuration.
Another useful feature of this Z-Wave module is its ability to measure power. Like many other Fibaro Z-Wave devices, the Roller Shutter 3 can also measure the actual and total power consumption of any connected device. Your energy consumption will always be under control and you can use the power more efficiently!
Features:
- Power supply: 100-240V ~ 50 / 60Hz,
- Rated load current: 4.2A for lamps and resistive loads, 1.7A for motors with compensated power factor (inductive loads)
- Supported motor type: single-phase AC motors
- Required limit switches: electronic and mechanical
- Power consumption: up to 0.8W
- Operating temperature: 0 ° C – 35 ° C
- For mounting in boxes: Ø = 50 mm, depth ≥ 60 mm
- Radio protocol: Z-Wave (500 series chip)
- Radio signal power: up to 5dBm,
- Radio frequency: 868.42 MHz Z-Wave Plus
- Range: up to 50 m outdoors, up to 40 m indoors (depending on the terrain and structure of the building)
- External dimensions (L x W x H) 42.5 mm x 38.25 mm x 20.3 mm
