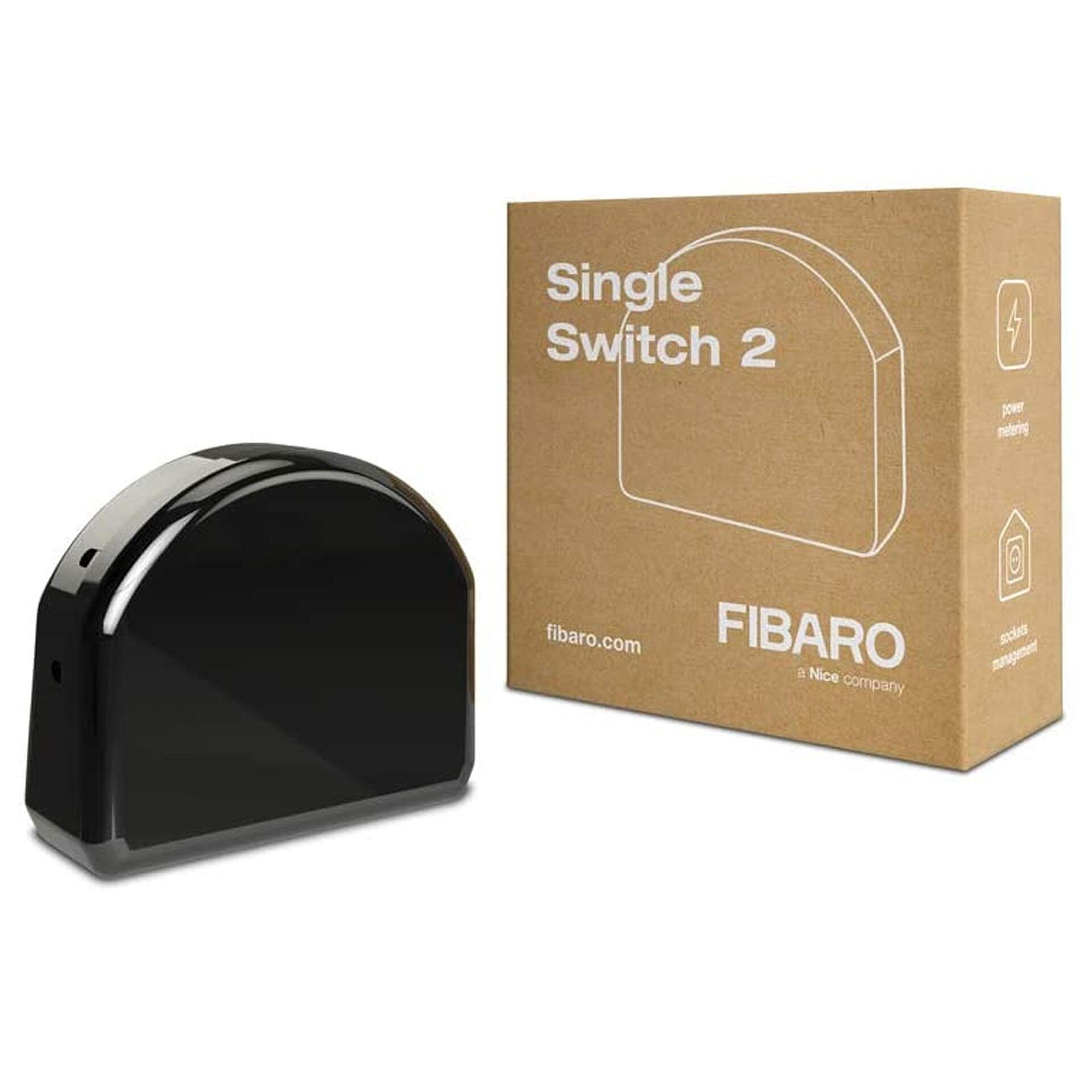

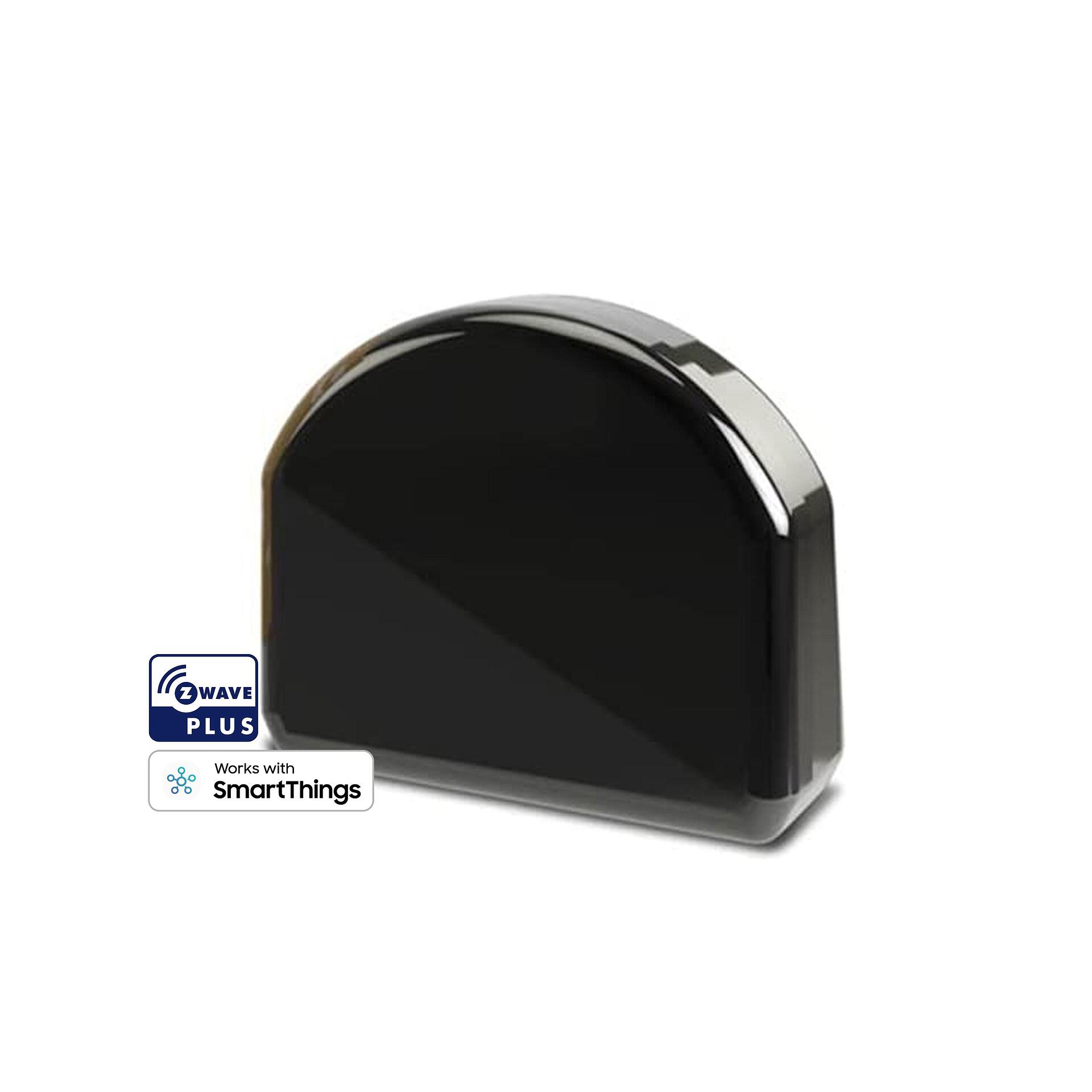

Fibaro Single Switch 2

Fibaro Single Switch 2 is designed to start and stop electrical appliances. The module can be controlled both via the Z-Wave network and via a simple switch. There is a built-in RGB LED, which during the installation process shows whether the module has been added or removed from the network. It also indicates whether the calibration or update was successful.

It has many safety measures to protect it from voltage drop, overheating or overload. In the event of any of these events, the system will send you a notification immediately.

This module is intended for connection to a three-wire network, which means that a neutral conductor must be present in the console box.

Features:

• Power supply: 100-240V~ 50/60 Hz
• Rated load current: 6.5A – resistive loads; 5A – tungsten loads
• Operating temperature: 0-35°C
• For installation in boxes: Ø ≥ 50mm, depth ≥ 60mm
• Radio protocol: Z-Wave (500 series chip)
• Radio signal power: up to 5dBm
• Radio frequency: 868.4 MHz EU;
• Range: up to 50m outdoors, up to 40m indoors (depending on terrain and building structure)
• Dimensions (L x W x H): 42.5 x 38.25 x 20.3 mm
