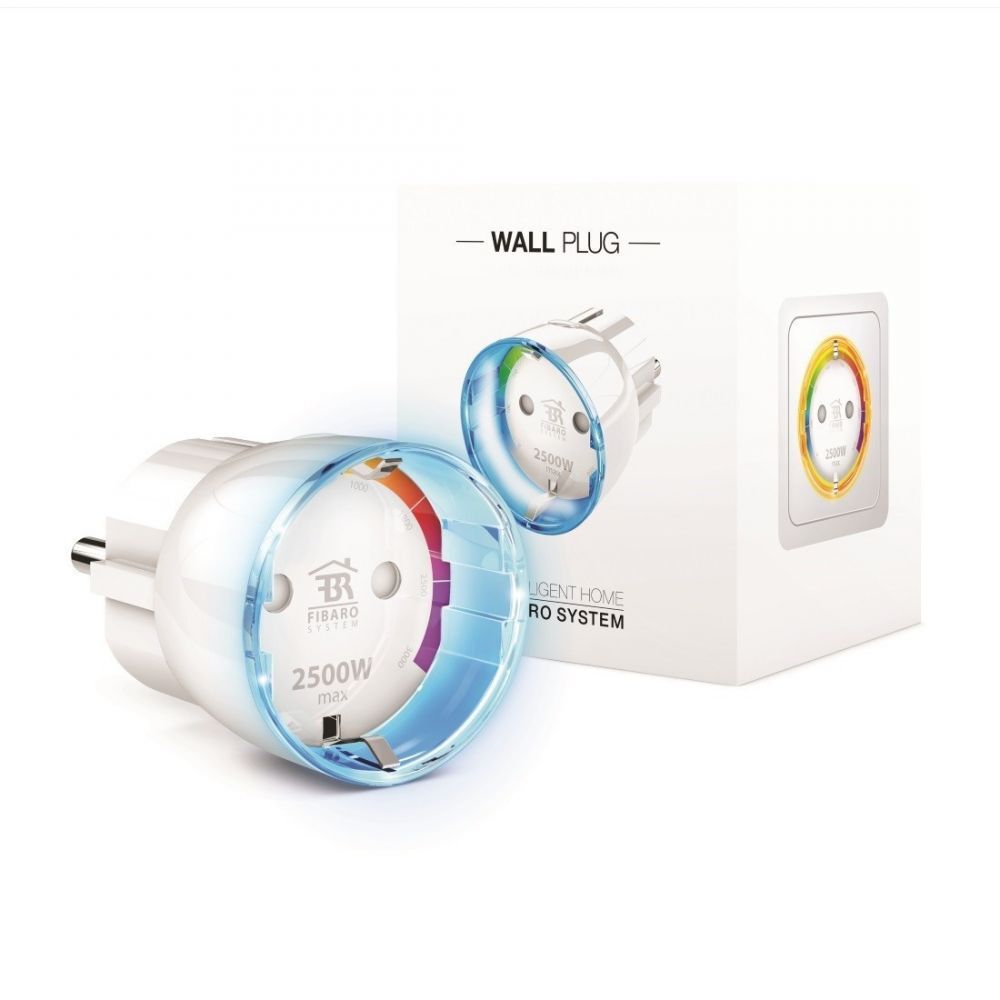

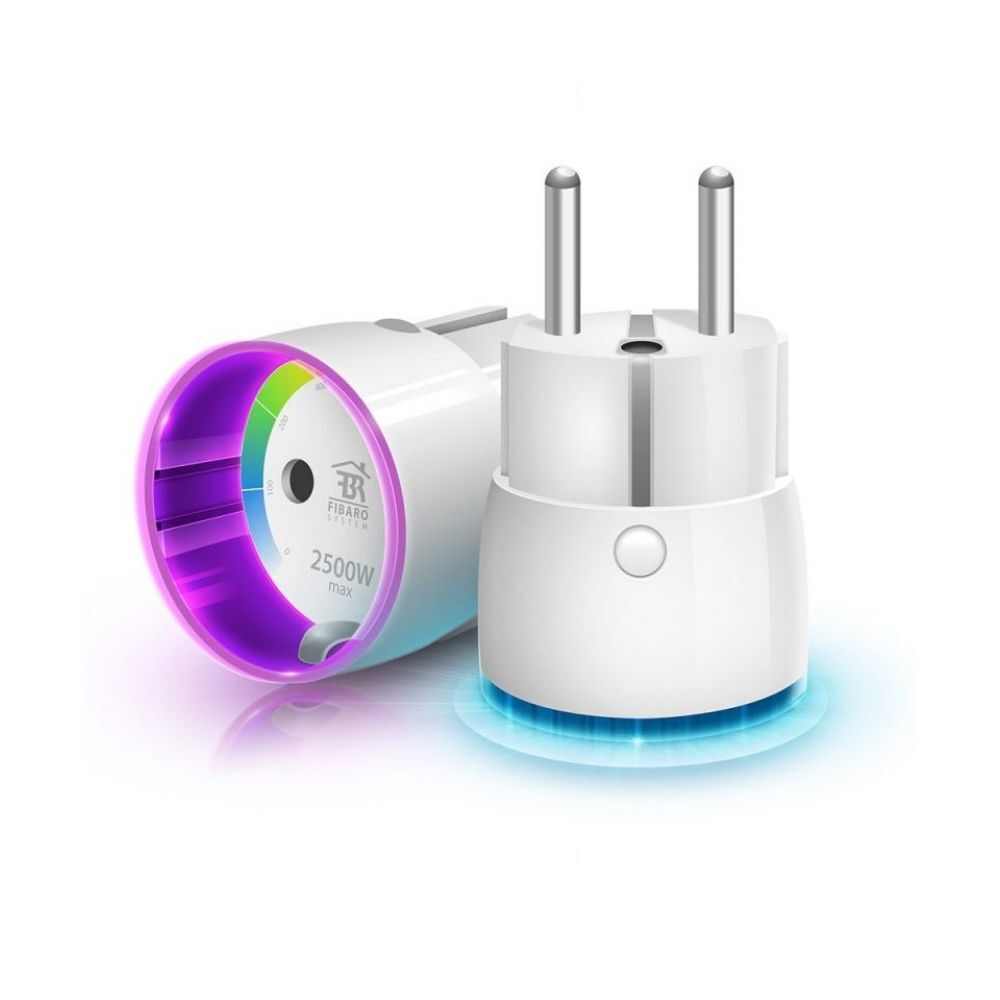

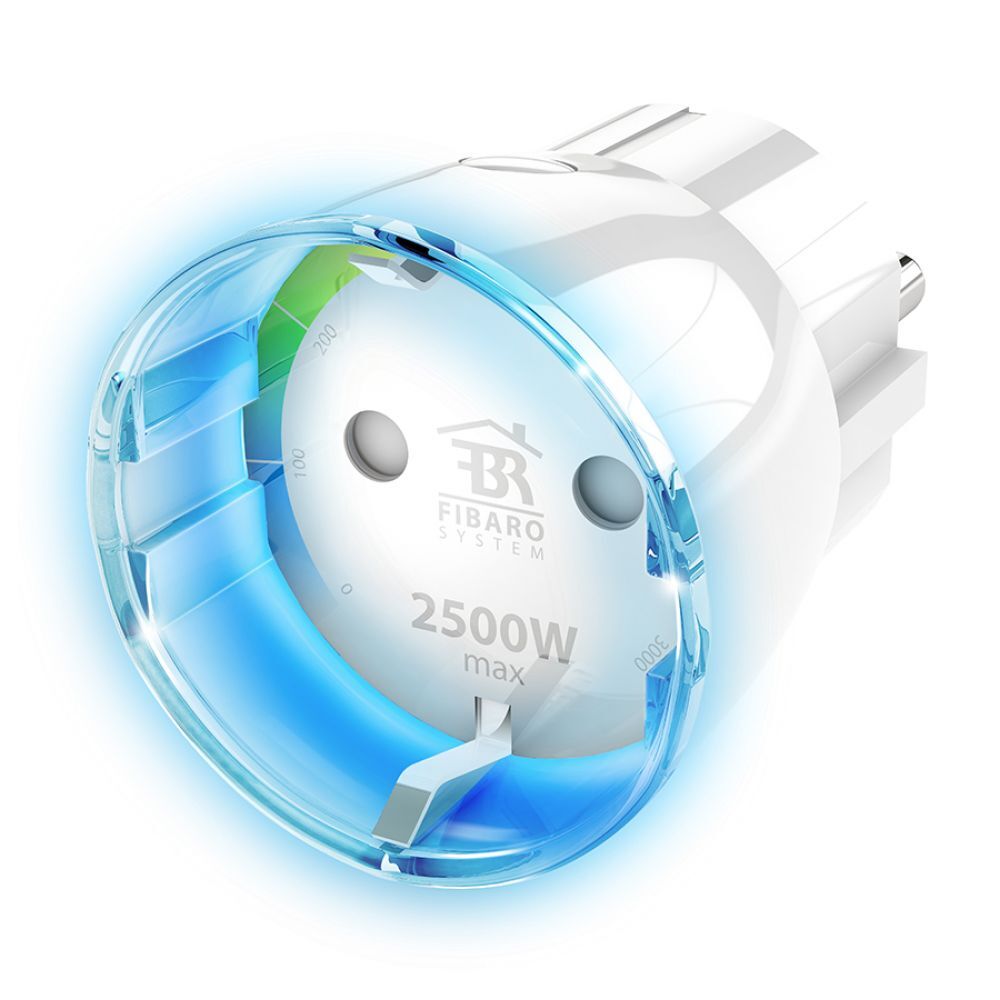

Fibaro Wall Plug

The smallest Z-Wave wall socket in the world!

The Fibaro Smart Socket is an extremely compact intelligent module that allows you to control lighting or other electrical devices via Z-Wave commands. It is designed to operate with a maximum power of 2500W.

This module has the function of measuring energy consumption. In this way, the instantaneous consumption and total consumption values ​​are sent to the Z-Wave hub. There is a visual indicator that allows you to see the power consumption: the green LED ring shows low power consumption, while the red LED ring shows very high power consumption.

This module also offers the ability to test the coverage in the Z-Wave network. All you have to do is hold on to the module button for a few seconds, after which the LED lights up in light purple, which means that the system is in test mode, which allows you to see the current coverage from the color shown.

       The most compact Z-Wave wall outlet on the market
       Switching lighting or appliances on / off
       Measurement of electricity consumption
       Warns in case of overload (> 2500W)
       Warns at temperatures> 55 ° C
       Power control via built-in button
       Shows real-time power consumption
       Coating test mode in the Z-Wave network
       Child protection
       Easy to use and install

Features:

• Power supply: 230V AC, 50/60 Hz
• Rated load current (for resistive load): 11A – continuous load
• Power consumption: up to 1.6W
• Power output (for resistive load): 2.5kW at continuous load
• Radio protocol: Z-Wave (500 series chip)
• Radio frequency: 868.4 MHz EU
• Range:up to 50m outdoors up to 40m indoors (depending on terrain and building structure)
• Operating temperature: 0 – 40°C
• Dimensions (Diameter x Height): 43 x 65 mm
