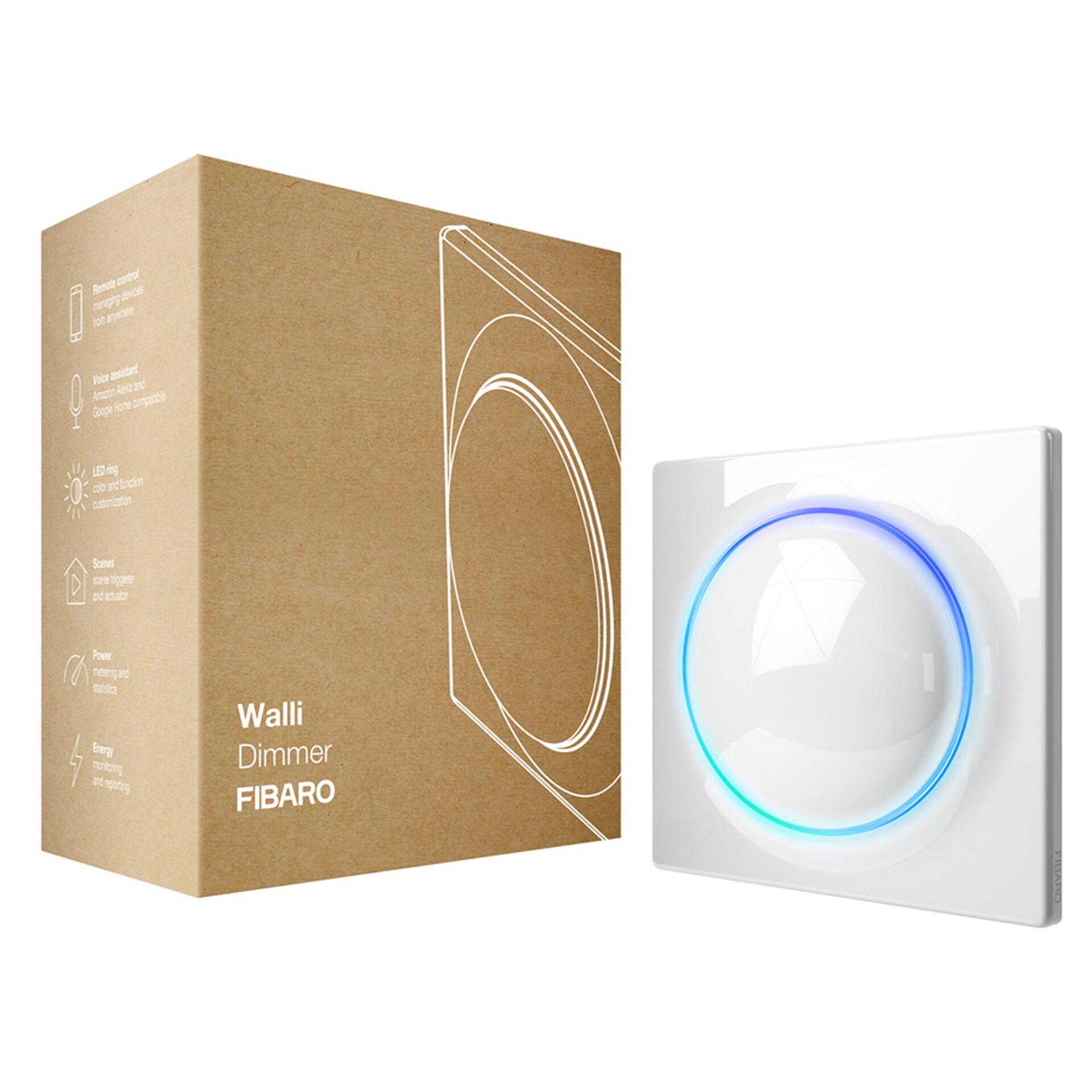

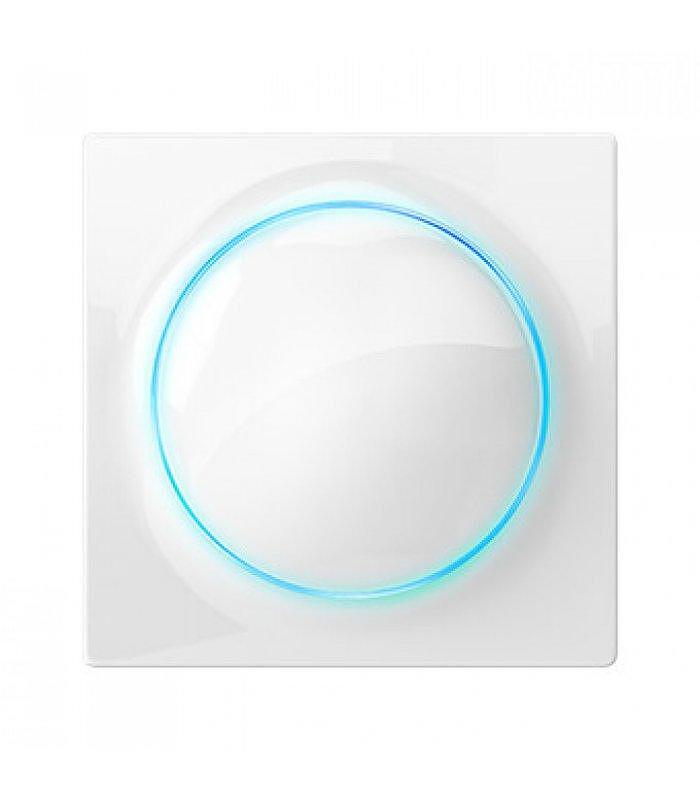

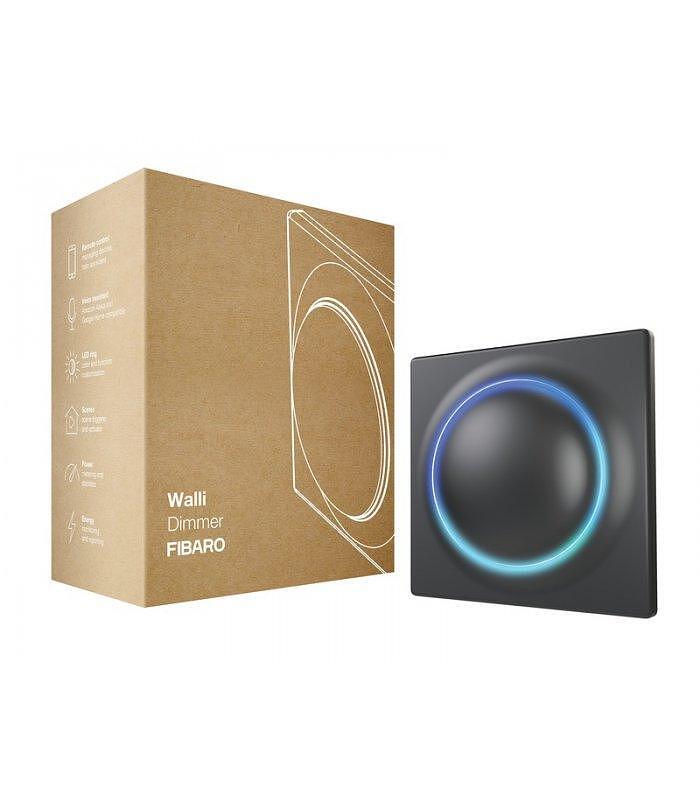

FIBARO Walli Dimmer

FIBARO Walli Dimmer is an intelligent wall dimmer designed to control and dim the lighting using the Z-Wave network.
The best Z-Wave Plus wall dimmer for wireless control and dimming.

It measures the active power and energy consumed by the controlled load.

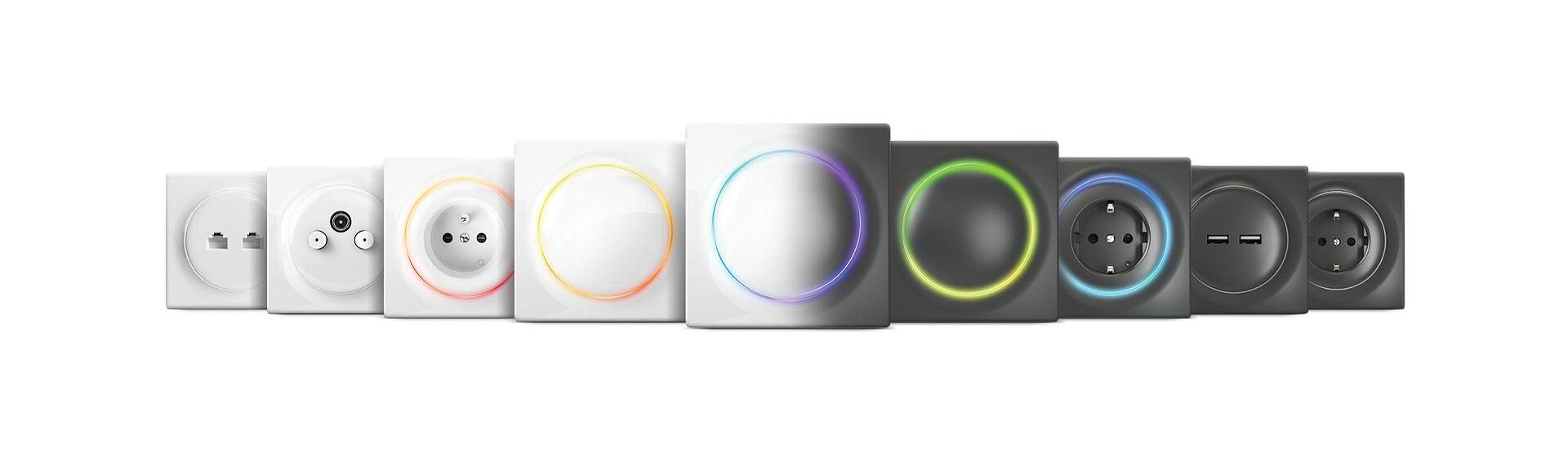

You can install it with FIBARO frame or other compatible: GIRA System 55 (Standard 55, E2, Event, Event Clear), Legrand Céliane or Schneider Odace.

Features:

• Dimensions: 86 mm, 86 mm, 51 mm
• Power supply: 110-230V ~ 50/60 Hz
• Recommended external overcurrent protection: 10A circuit breaker type B (EU)
• Recommended conductors: cross-sectional area between 1.5-4.0 mm2
• For mounting in boxes: Ø = 60 mm, depth ≥ 40 mm
• Operating temperature: 0-35 ° C
• Ambient humidity: 10–95% RH without condensationCompatible load types:
• Resistance loads:
  • Conventional incandescent and halogen light sources
  • Resistive-capacitive loads Fluorescent lamp (compact / with electronic ballast), electronic transformer, LED
  • Resistive-inductive loads Ferromagnetic transformers
• Rated current load:
  • 50-350W – resistive loads (incandescent and halogen)
  • 50-300VA – resistive-capacitive loads (fluorescent lamp, electronic transformer, LED)
  • 50-300VA – resistive-inductive loads (ferromagnetic transformers)
  • 5-50W – with bypass 2: fluorescent lamp or LED
• Number of controlled loads: 1
• Active element: semiconductor electronic switch ε
• Radio protocol: Z-Wave
• Transmission power: EIRP max 6dBm
• Radio frequency: 868.4 or 869.85 MHz EU
