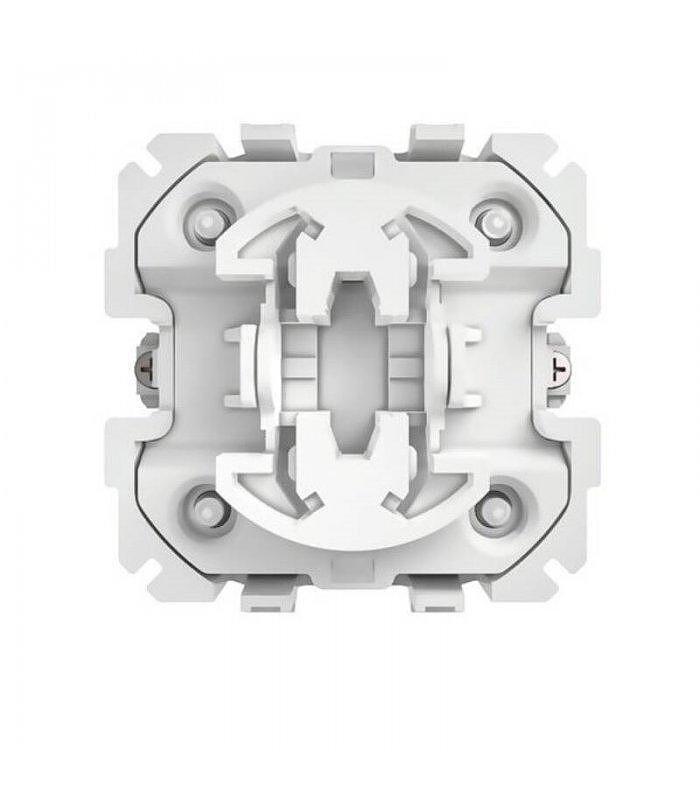

Fibaro Walli Dimmer Unit

Fibaro Walli Dimmer Unit is intelligent lighting dimmer that works with commercially available lighting source. Equipped with functionalities known from FIBARO modules. Can be used with FIBARO Walli covers or other compatible: GIRA – System 55 (Standard 55, E2, Event, Event Clear), Legrand – Céliane, Schneider – Odace.

Technical Characteristics:

• Power Supply: 110-230V~50/60 Hz
• Recommended external overcurrent protection: 10A type B circuit breaker (EU), 13A type B circuit breaker (Sweden)
• Recommended wires: cross-section area between 1.5-4.0mm2
• For installation in boxes: Ø = 60mm, depth ≥ 40mm
• Operating temperature: 0-35 °C
• Ambient humidity: 10–95% RH without condensation
  • Compatible load types:
  • Resistive loads Conventional incandescent and halogen light sources
  • Resistive-capacitive loads Fluorescent tube lamp (compact / with electronic ballast), electronic transformer, LED
  • Resistive-inductive loads Ferromagnetic transformers
• Rated load current:
  • 50-350W – resistive loads(incandescent and halogen)
  • 50-300VA – resistive-capacitive loads(fluorescent tube lamp, electronic transformer, LED)
  • 50-300VA – resistive-inductive loads(ferromagnetic transformers)
• 5-50W – with Bypass 2: fluorescent tube lamp or LED
• Number of controlled loads: 1
• Active element: semiconductor electronic switch ε
• Radio protocol: Z-Wave
• Transmit power: EIRP max 6dBm
• Radio frequency: 868.4 or 869.85 MHz EU
• Range: up to 40m indoors(depending on terrain and building structure)
