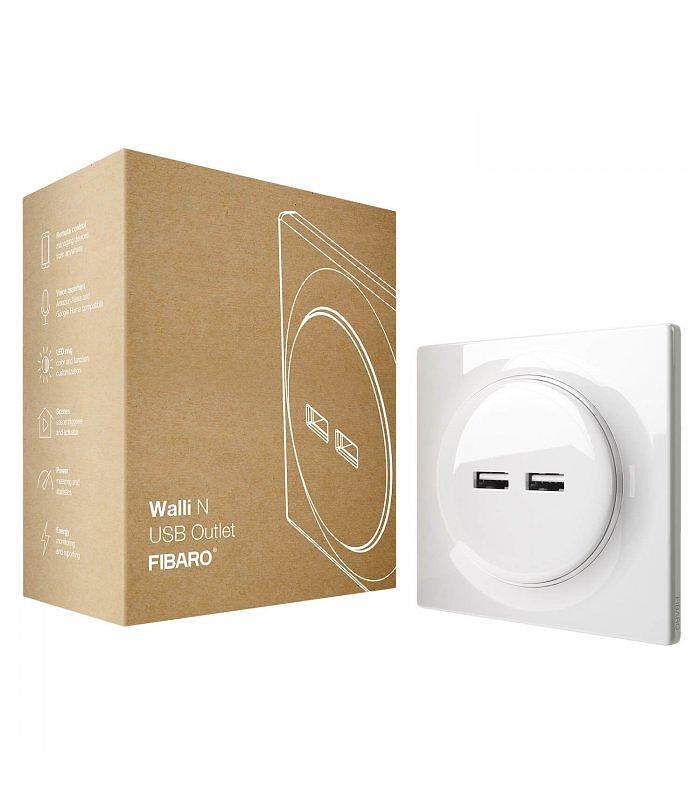

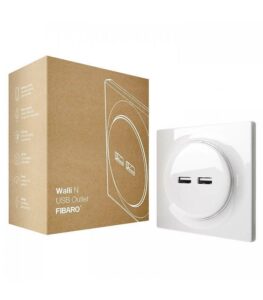

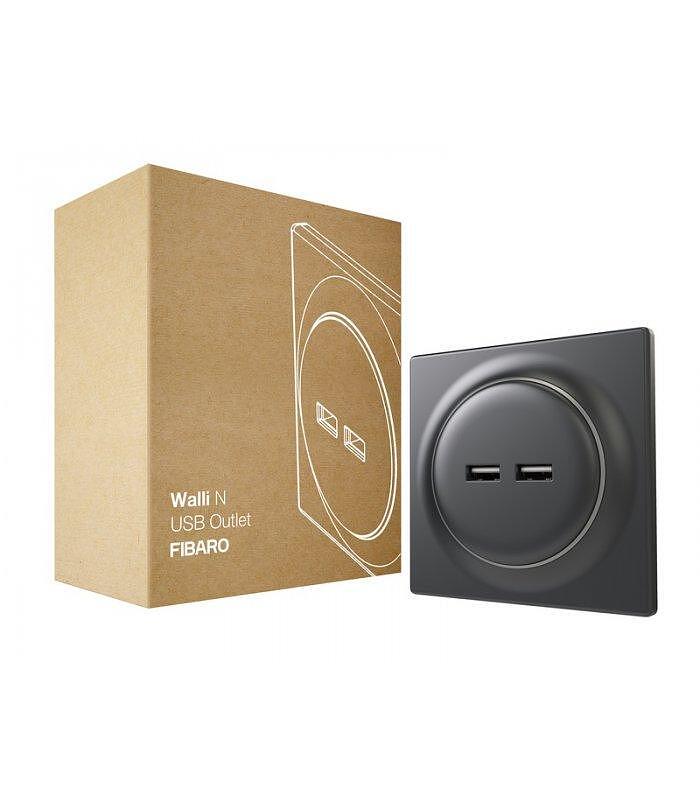

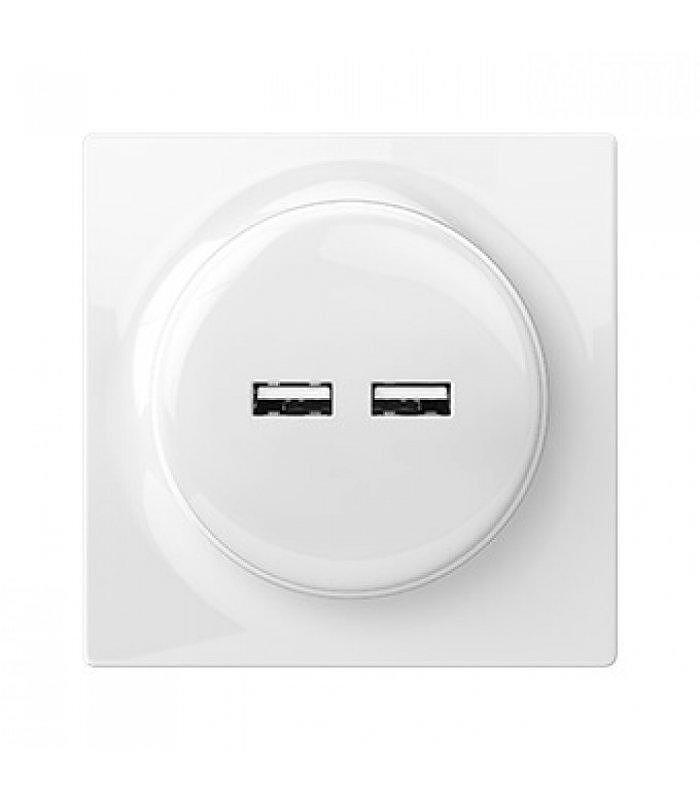

FIBARO Walli N USB

FIBARO Walli N USB is a device designed to maintain the same design as devices in the FIBARO Walli series.

FIBARO Walli N USB is not a Z-Wave device and does not support any communication protocol. The output cannot be controlled remotely using the controller.

Features:

• Dimensions: 86 mm, 86 mm, 42 mm
• Power supply: 100-240V ~ 50/60 Hz
• Internal protection: output overvoltage protection, short circuit protection, thermal shutdown
• Standby power consumption: max 0.3W
• Recommended cross-sectional area of ​​the wires: 1.5-4.0mm2
• For mounting in boxes: Ø = 60 mm, depth ≥ 40 mm
• Operating temperature: 0-40 ° C
• Ambient humidity: 0–90% RH without condensation
• Output: 2x5V DC max 2400mA total
• Number of outputs: 2

* The set contains: USB charging module; Double cover of the USB socket; Single frame FG-Wx-PP-0001; Mounting frame FG-Wx-AS-4001
