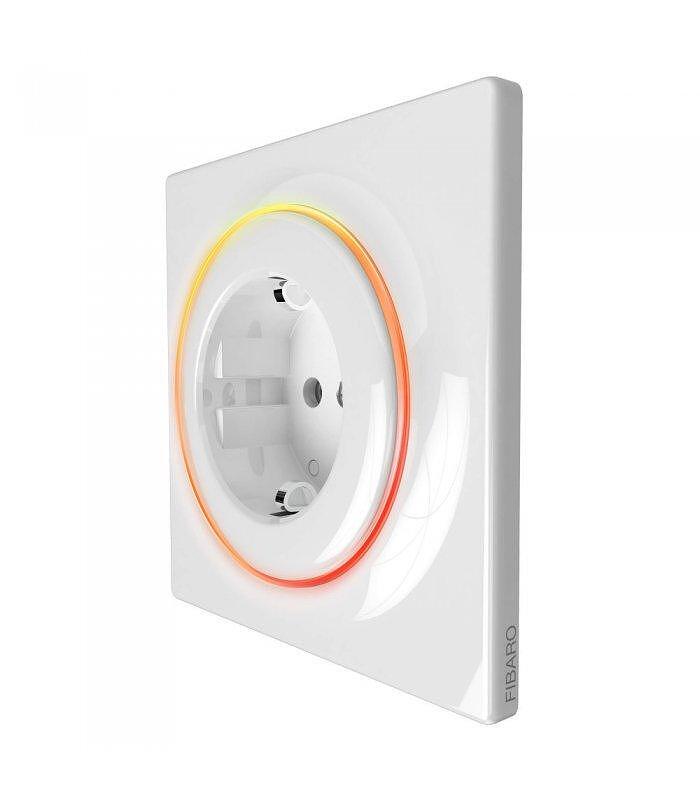

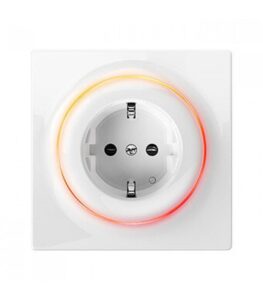

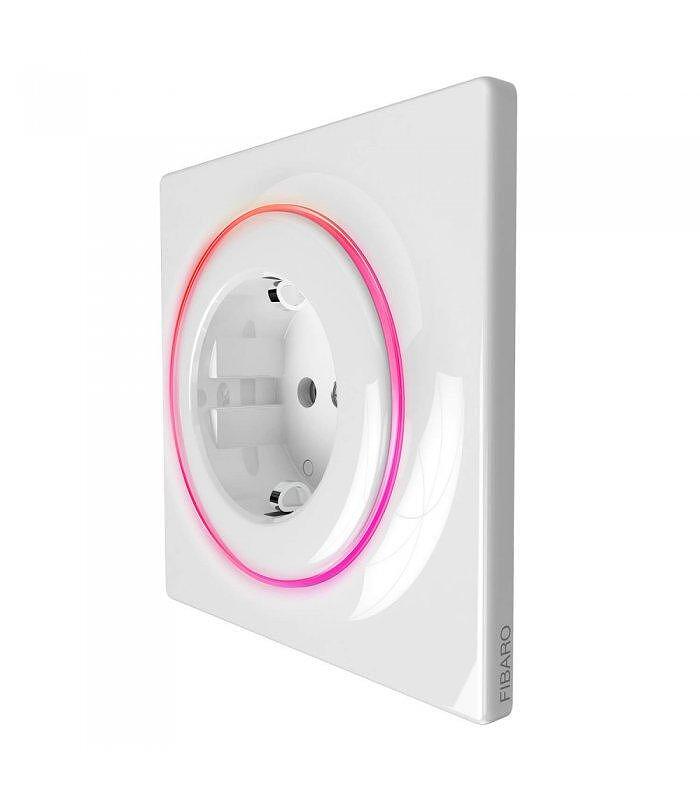

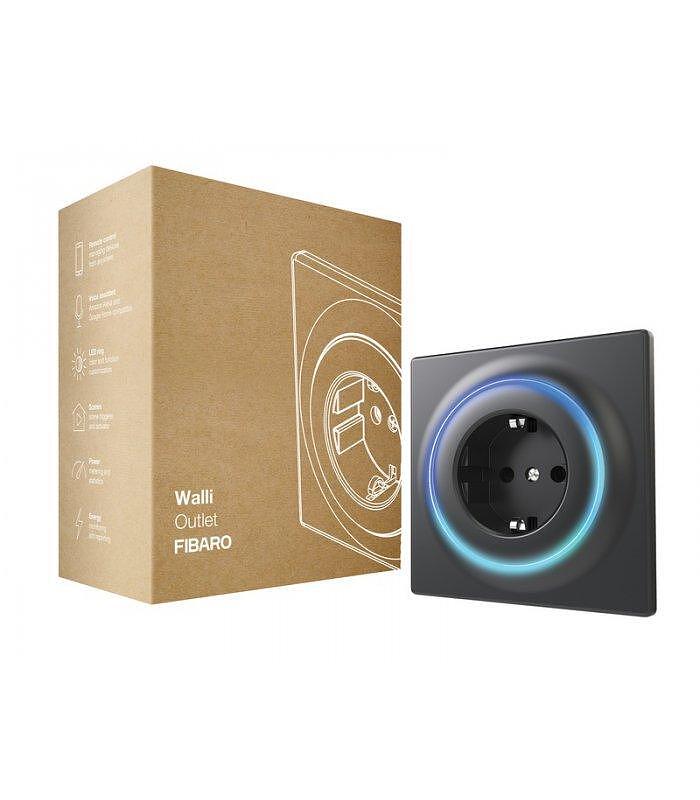

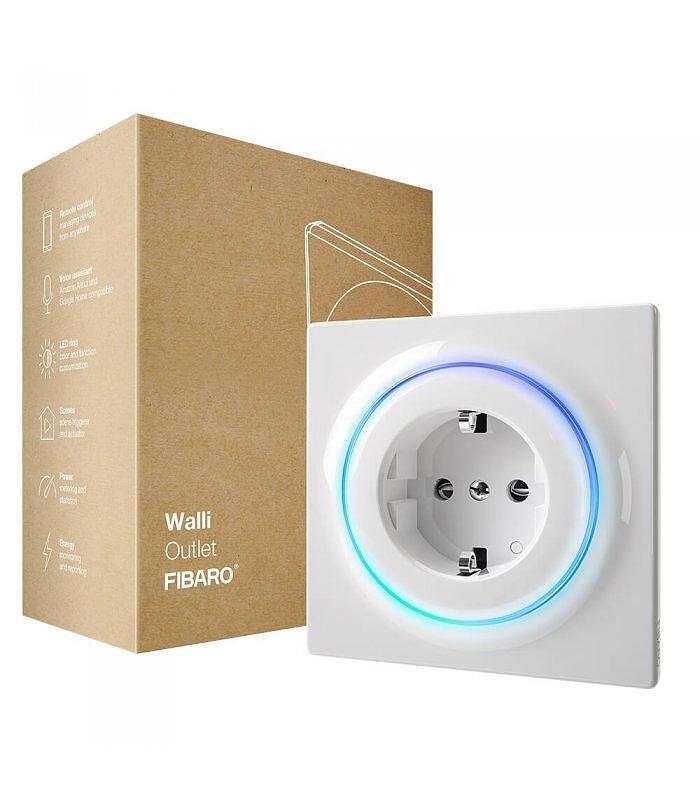

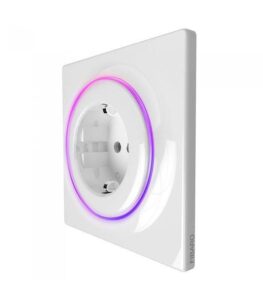

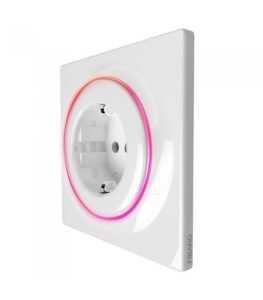

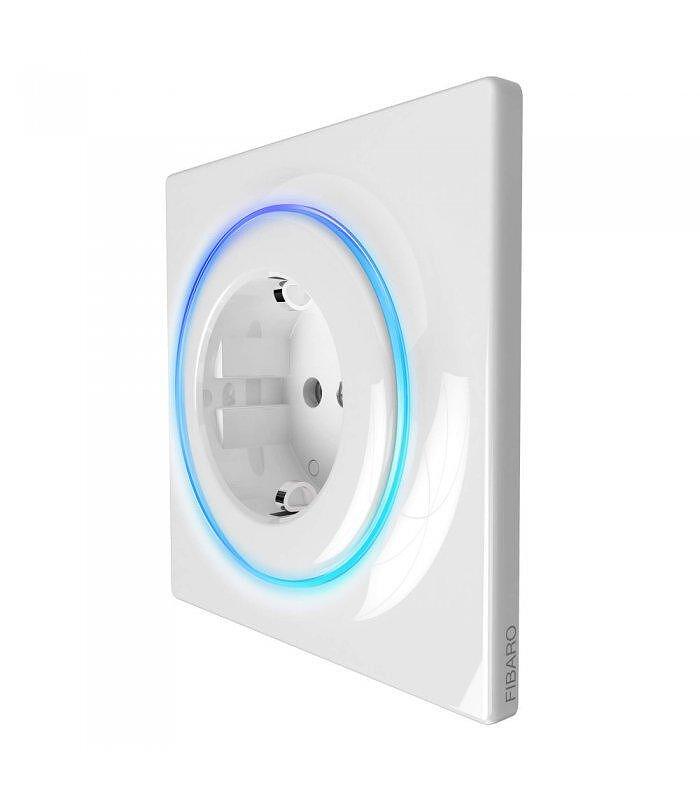

FIBARO Walli Outlet type F

FIBARO Wall Outlet is an intelligent electrical outlet designed to control electrical devices via a Z-Wave network.

It measures the active power and energy consumed by the controlled load.

You can install it with FIBARO frame or other compatible: GIRA System 55 (Standard 55, E2, Event, Event Clear), Legrand Céliane or Schneider Odace.

Features:

• Dimensions: Height 86 mm, Width 86 mm, Depth 48 mm
• Power supply: 110-230V ~ 50/60 Hz
• Recommended external overcurrent protection: circuit breaker 16A type B
• Recommended wires: 1.5-4.0mm2
• For mounting in boxes: Ø = 60 mm, depth ≥ 50 mm
• Operating temperature: 0-40 ° C
• Ambient humidity: 10–90% RH without condensation
• Rated load current:
  • 16A – resistive loads (incandescent bulbs)
  • 16A – inductive general purpose (cosφ = 0.75-0.8)
  • 4A – highly inductive loads (cosφ <0.35)
  • 4A – electric motors
  • 4A – electronic ballasts
• Number of outputs: 1
• Radio protocol: Z-Wave
• Transmission power: EIRP max 6dBm
• Radio frequency: 868.4 or 869.85 MHz EU
• Range: up to 40 m indoors (depending on the terrain and construction structure)
