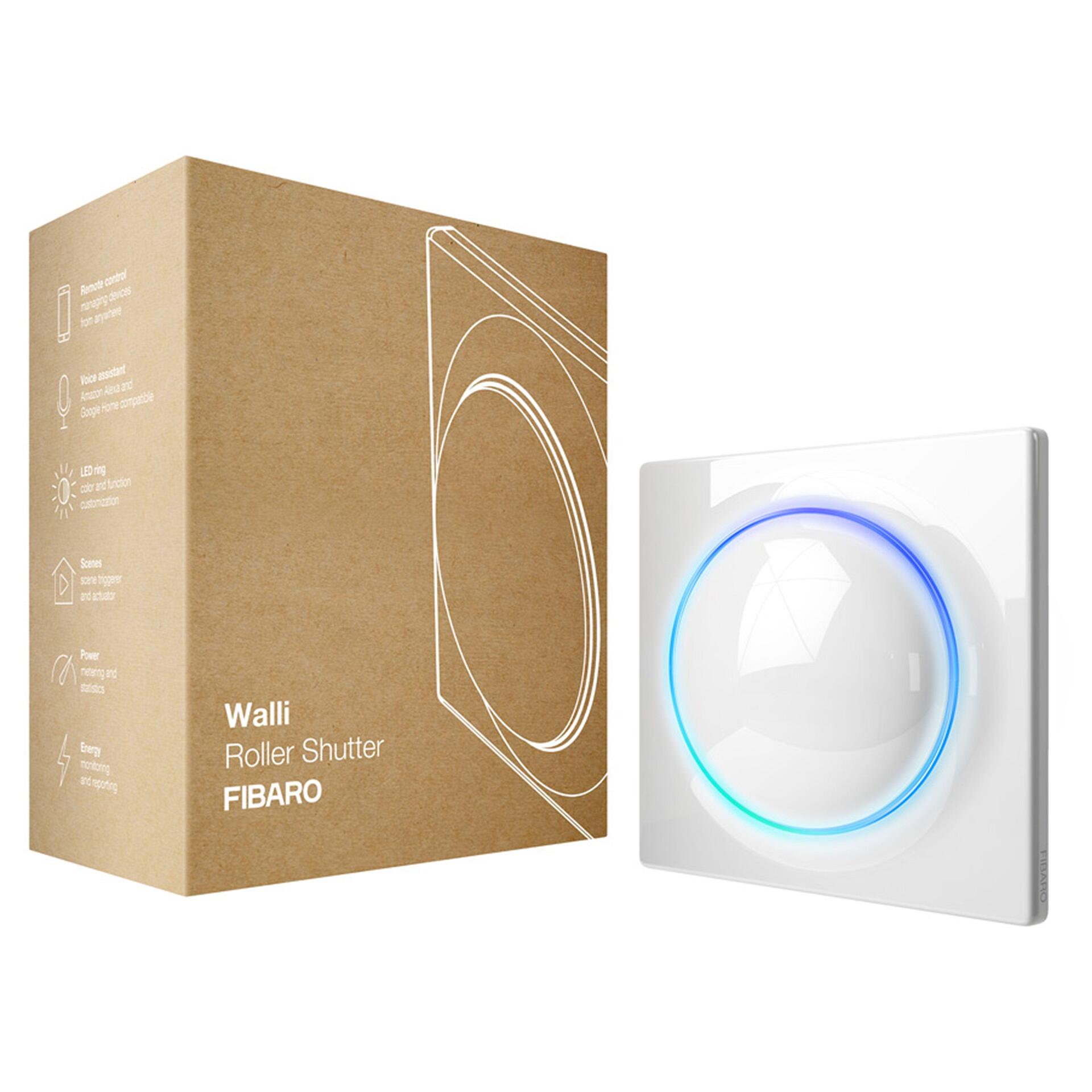

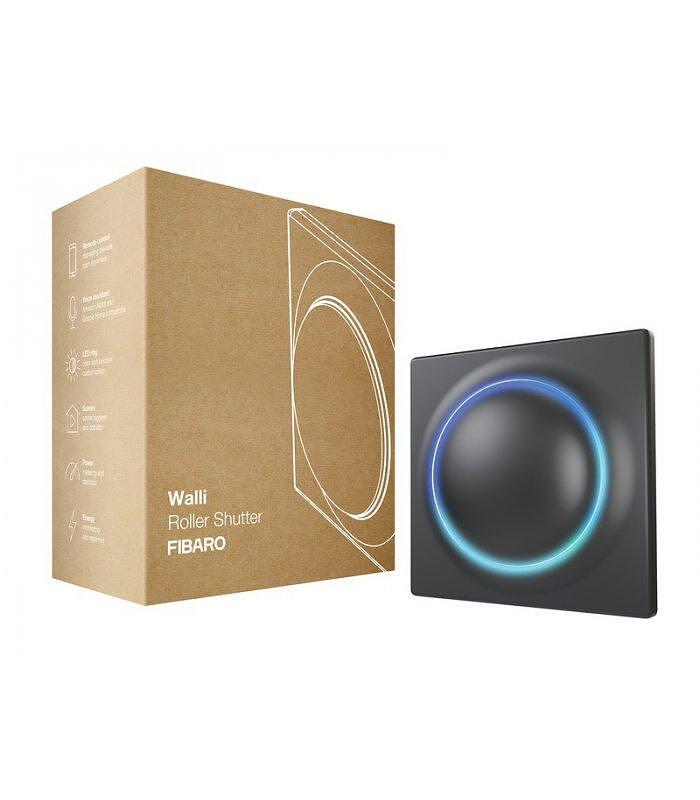

FIBARO Walli Roller Shutter

FIBARO Wall Roller Shutter is an intelligent wall switch designed to control roller blinds, awnings, Venetian blinds and other single-phase devices powered by AC via Z-Wave network.
It measures the active power and energy consumed by the controlled load.

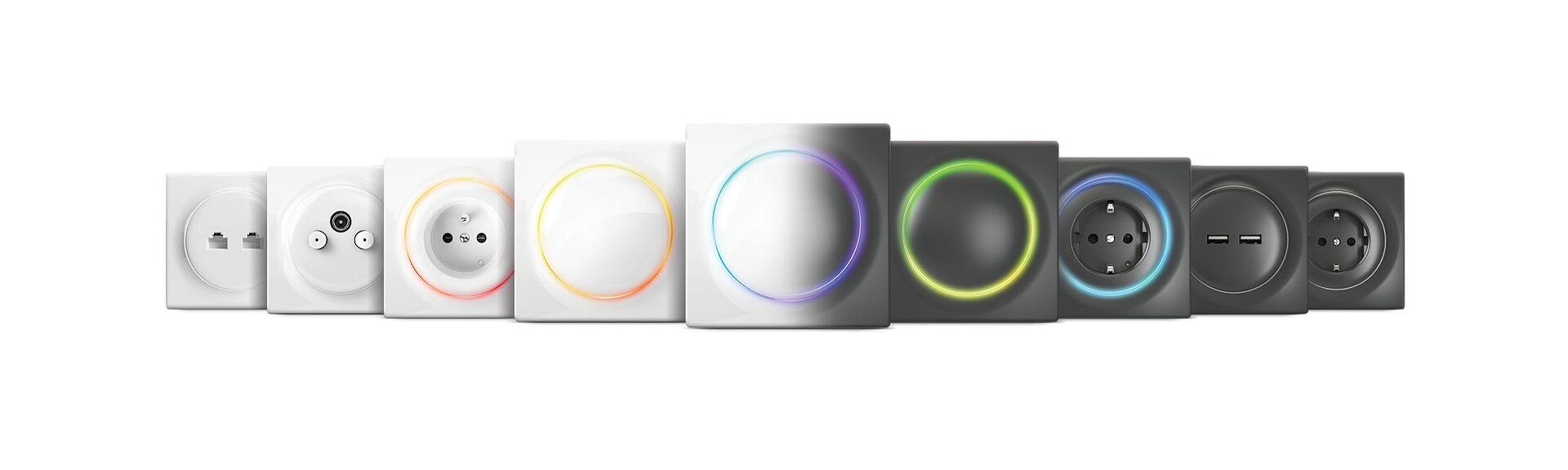

You can install it with FIBARO frame or other compatible: GIRA System 55 (Standard 55, E2, Event, Event Clear), Legrand Céliane or Schneider Odace.

Features:

• Dimensions: 86 mm, 86 mm, 51 mm
• Power supply: 110-230V ~ 50/60 Hz
• Recommended external overcurrent protection: 10A circuit breaker type B (EU)
• Active element: micro gap relay μ
• Required limit switches: electronic or mechanical
• Recommended conductors: cross-sectional area between 1.5-4.0 mm2
• For mounting in boxes: Ø = 60 mm, depth ≥ 40 mm
• Operating temperature: 0-35 ° C
• Ambient humidity: 10–95% RH without condensation
• Rated load current: 4A – for motors with compensated power factor (inductive), 13A – for resistive loads
• Compatible types of load: single-phase AC motors, resistive
• Radio protocol: Z-Wave
• Transmission power: EIRP max 6dBm
• Radio frequency: 868.4 or 869.85 MHz EU
• Range: up to 40 m indoors (depending on the terrain and construction structure)

* The set contains: Device for blinds FG-WREU111-AS-8001; Single frame FG-Wx-PP-0001; Button FG-WDSEU221-AS-8100; Mounting frame FG-Wx-AS-4001
