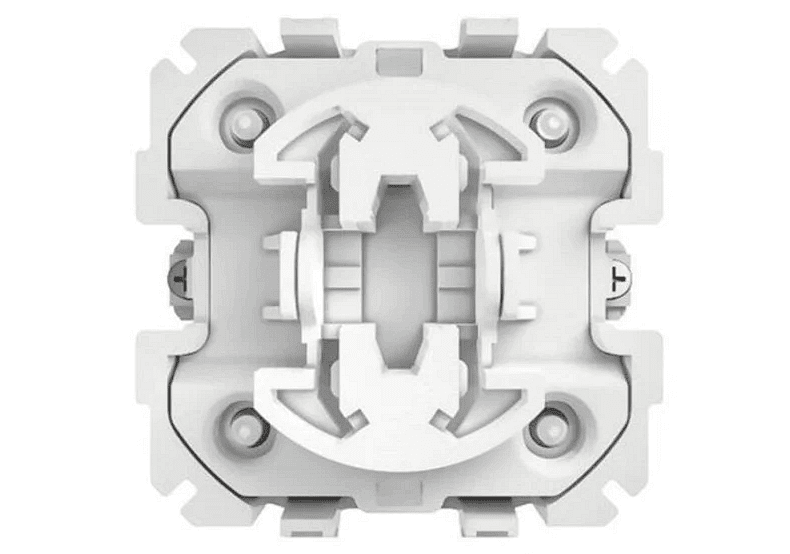

Fibaro Walli Roller Shutter Unit

Fibaro Walli Roller Shutter Unit is intelligent roller blinds, gates and blinds controller. Equipped with functionalities known from FIBARO modules. Can be used with FIBARO Walli covers or other compatible: GIRA – System 55 (Standard 55, E2, Event, Event Clear),Legrand – Céliane, Schneider – Odace.

Technical Characteristics:

• Power Supply: 110-230V~50/60 Hz
• Recommended external overcurrent protection: 10A type B circuit breaker (EU), 13A type B circuit breaker (Sweden)
• Active element: micro-gap relay μ
• Required limit switches: electronic or mechanical
• Recommended wires: cross-section area between 1.5-4.0mm2
• For installation in boxes: Ø = 60mm, depth ≥ 40mm
• Operating temperature: 0-35 °C
• Ambient humidity: 10–95% RH without condensation
• Rated load current: 4A – for motors with compensated power factor (inductive), 13A – for resistive loads
• Compatible load types: single-phase AC motors, resistive
• Radio protocol: Z-Wave
• Transmit power: EIRP max 6dBm
• Radio frequency: 868.4 or 869.85 MHz EU
• Range: Up to 40m indoors (depending on terrain and building structure)
