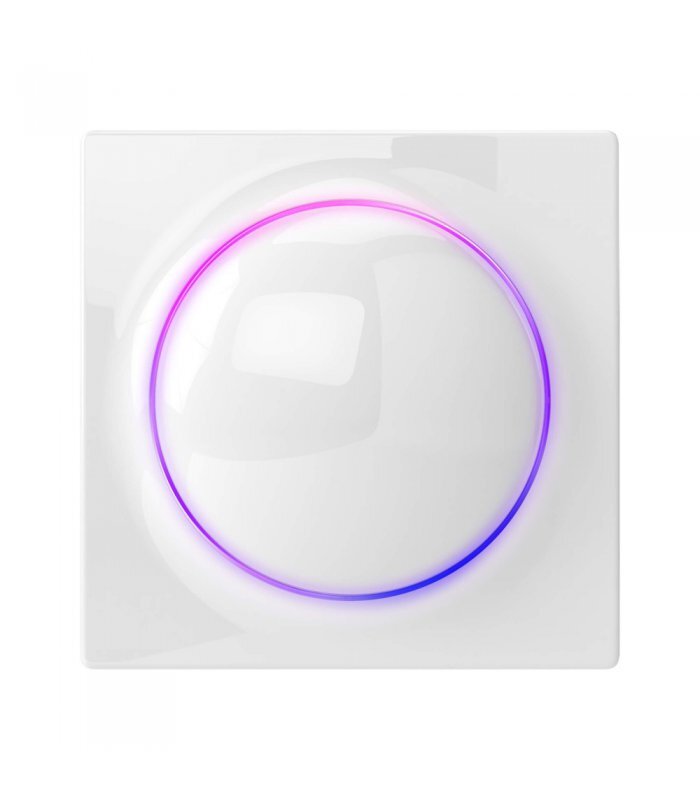

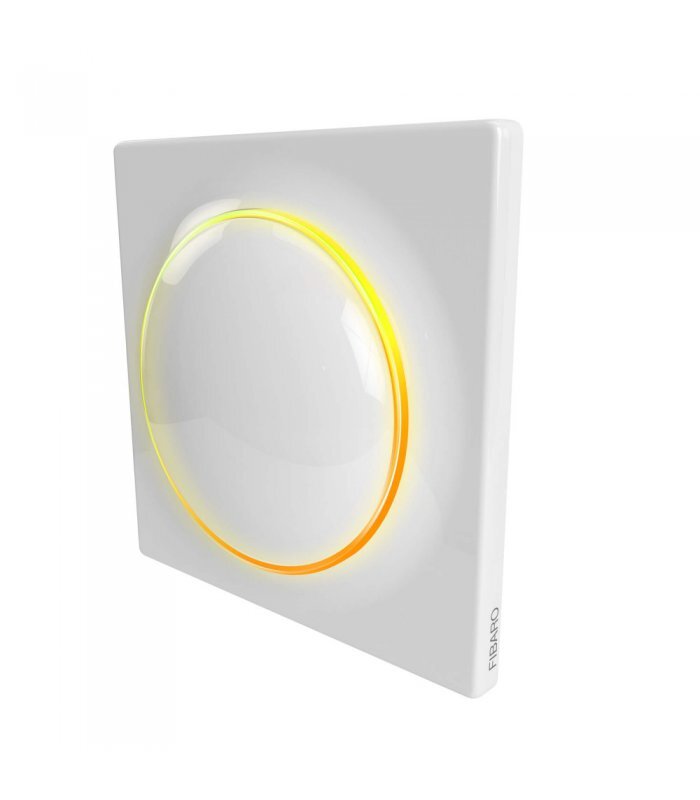

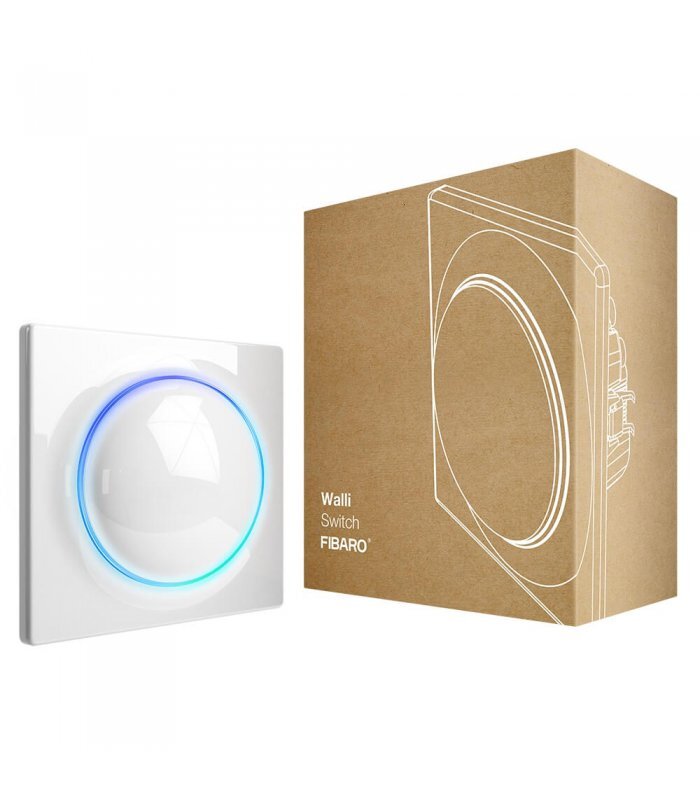

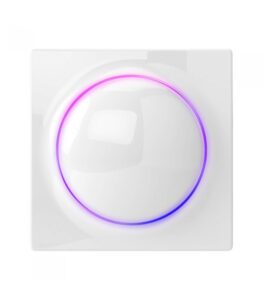

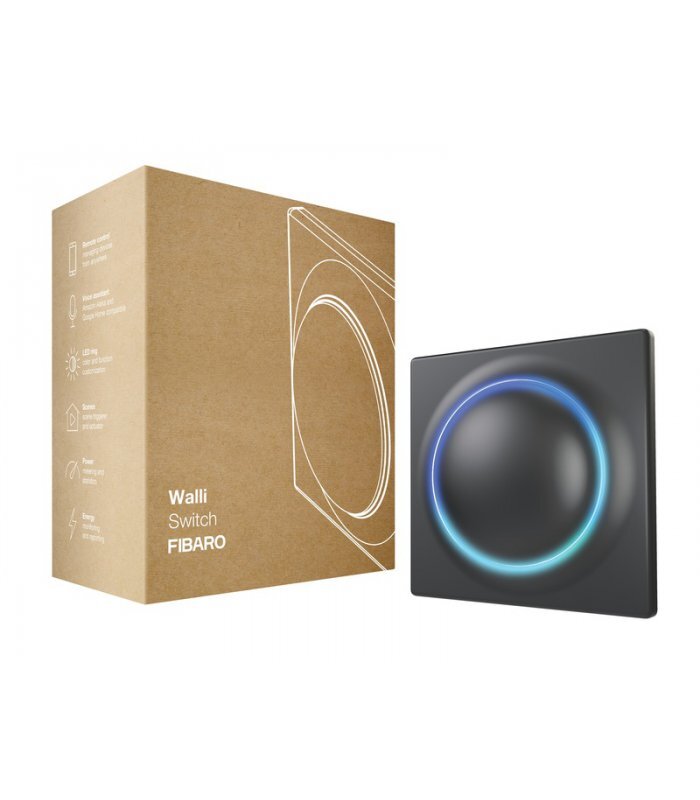

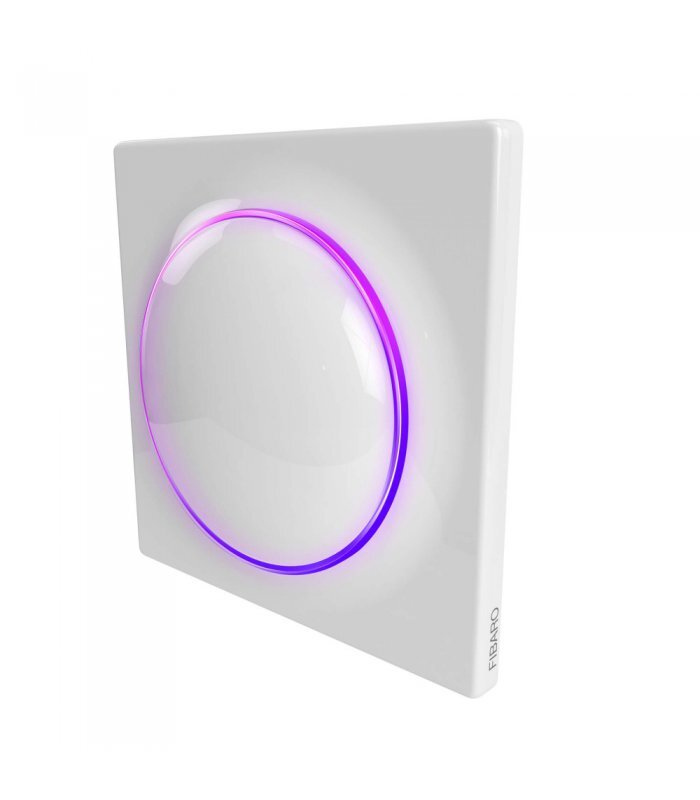

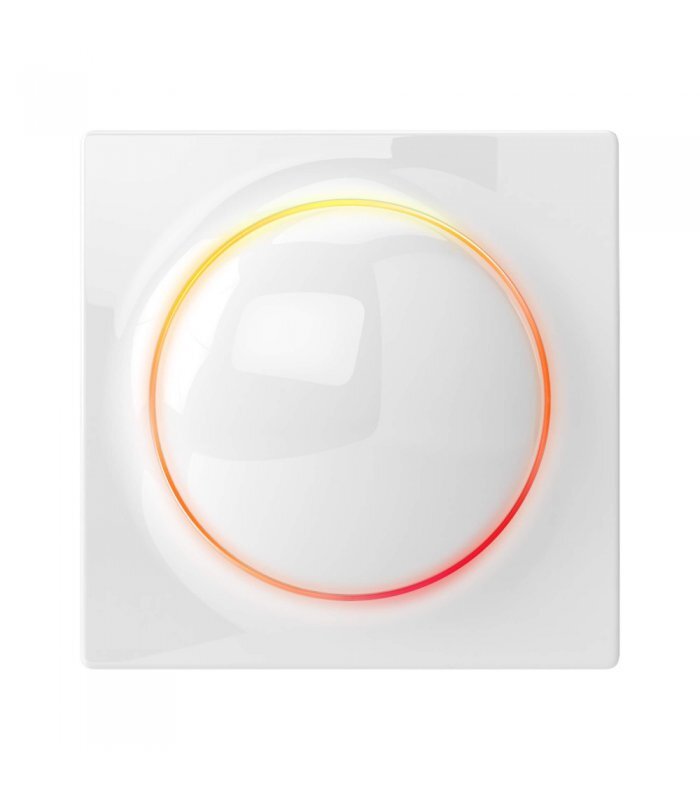

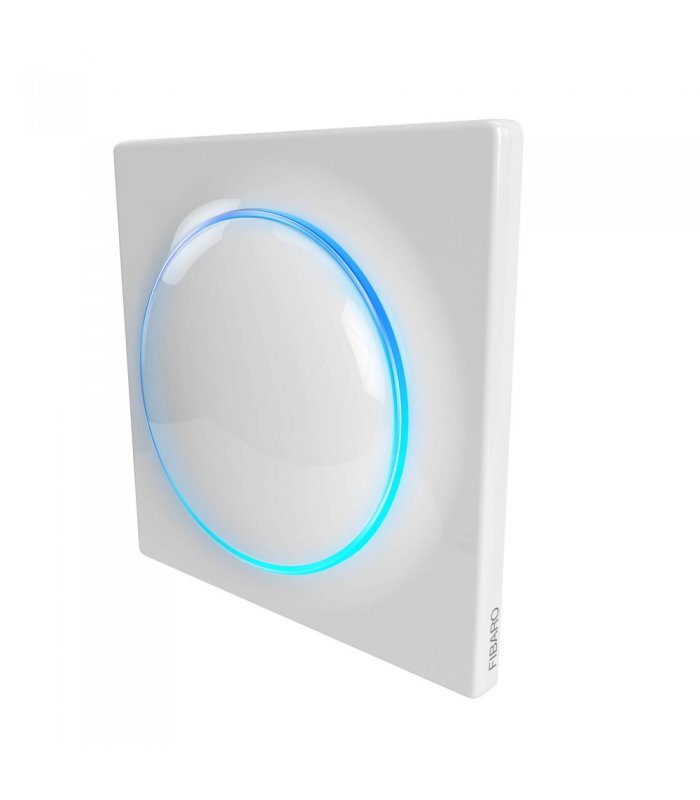

FIBARO Walli Switch

FIBARO Walli Switch is an intelligent wall switch designed to control one or two lighting circuits via the Z-Wave network. It is suitable for all types of lighting fixtures / bulbs (LED, incandescent, fluorescent), as well as electrical transformers. The device measures the active power and energy consumption of the connected load.

Features:

• Power supply: 110-230V ~ 50/60 Hz
• Recommended external overcurrent protection: 10A circuit breaker type B (EU)
• Recommended conductors: cross-sectional area between 1.5-4.0 mm2
• For mounting in boxes: Ø = 60 mm, depth ≥ 40 mm
• Operating temperature: 0-35 ° C
• Ambient humidity: 10–90% RH without condensation
• Rated load current: 13A per channel, total 16A
• Radio frequency: 868.4
• Number of controlled loads: 1/2 (default 2)
• Range: up to 40 m indoors (depending on the terrain and the structure of the building)
