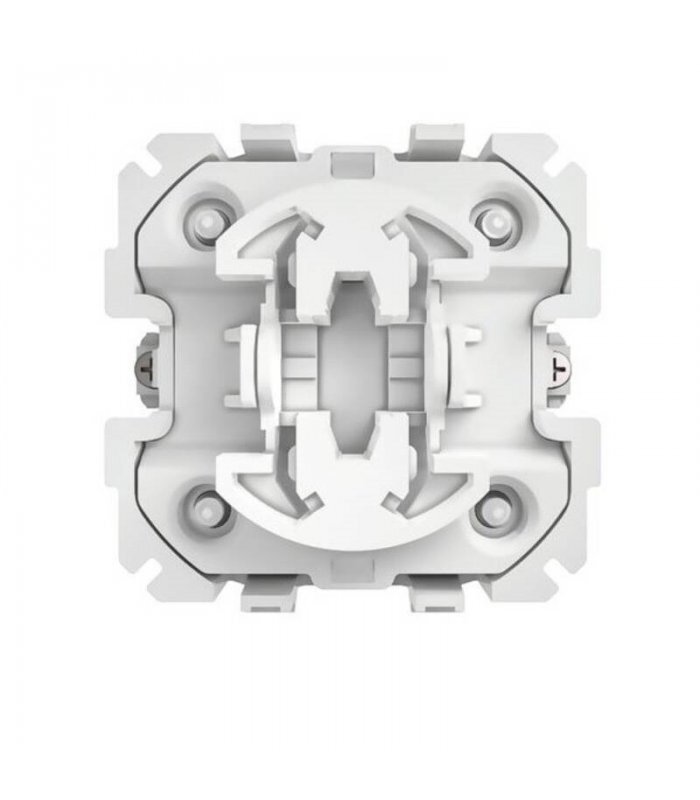

FIBARO Walli Switch Unit

FIBARO Wall Switch is an intelligent wall switch designed to control one or two lighting circuits via the Z-Wave network. It is suitable for all types of lighting fixtures / bulbs (LED, incandescent, fluorescent), as well as electrical transformers.
The device measures the active power and energy consumption of the connected load.

You can install it with FIBARO cover plate or other compatible: GIRA System 55 (Standard 55, E2, Event, Event Clear), Legrand Céliane or Schneider Odace (required parts and limitations were described in the full manual).

Without plastic Cover Plate and Button and Mounting Frame!

Features:

• Power supply: 110-230V ~ 50/60 Hz
• Recommended external overcurrent protection: 10A circuit breaker type B (EU)
• Recommended conductors: cross-sectional area between 1.5-4.0 mm2
• For mounting in boxes: Ø = 60 mm, depth ≥ 40 mm
• Operating temperature: 0-35 ° C
• Ambient humidity: 10–90% RH without condensation
• Rated load current: 13A per channel, total 16A
• Radio frequency: 868.4
• Number of controlled loads: 1/2 (default 2)
• Range: up to 40 m indoors (depending on the terrain and the structure of the building)
