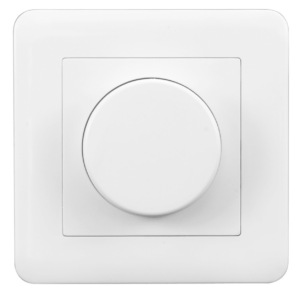

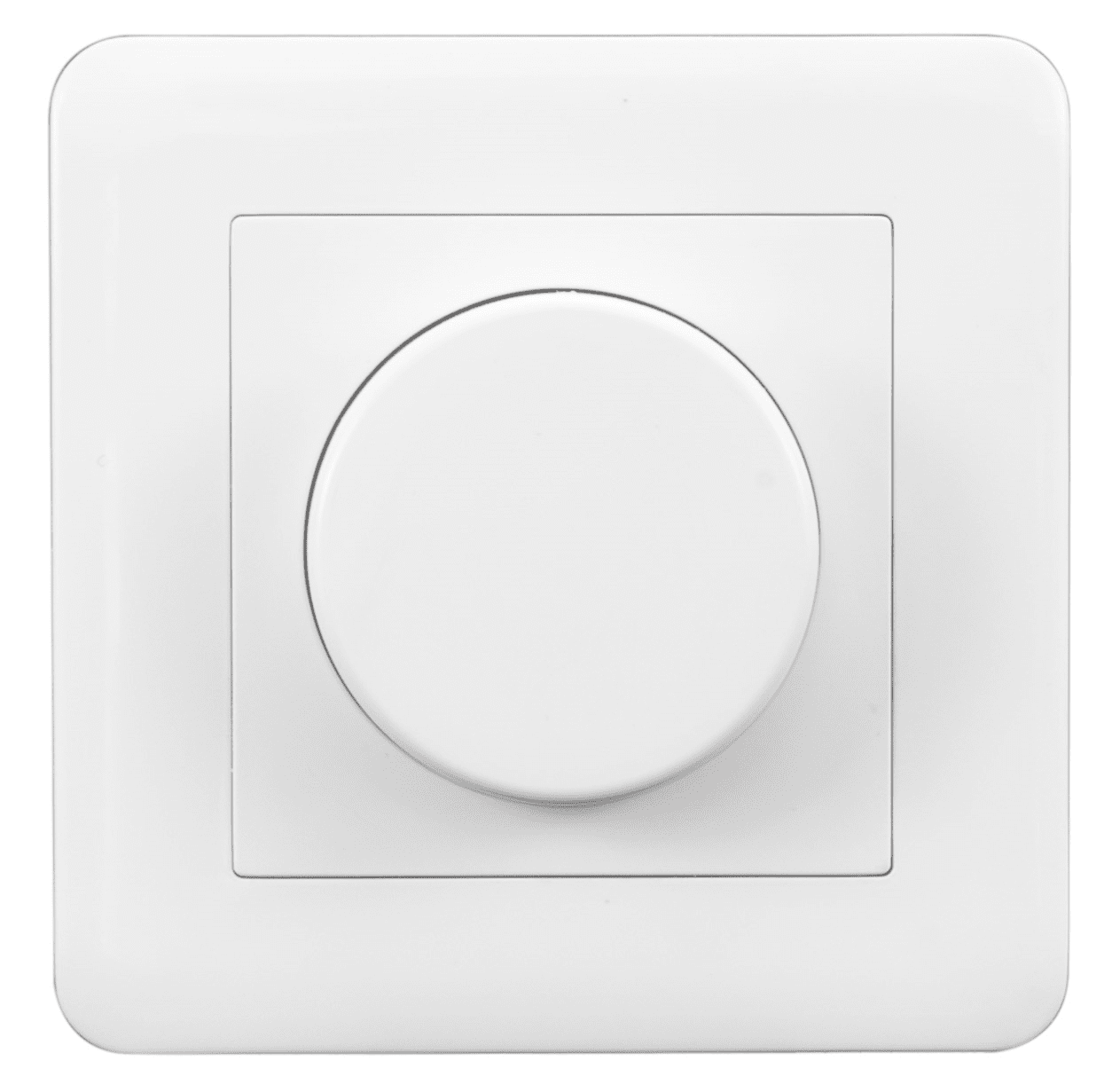

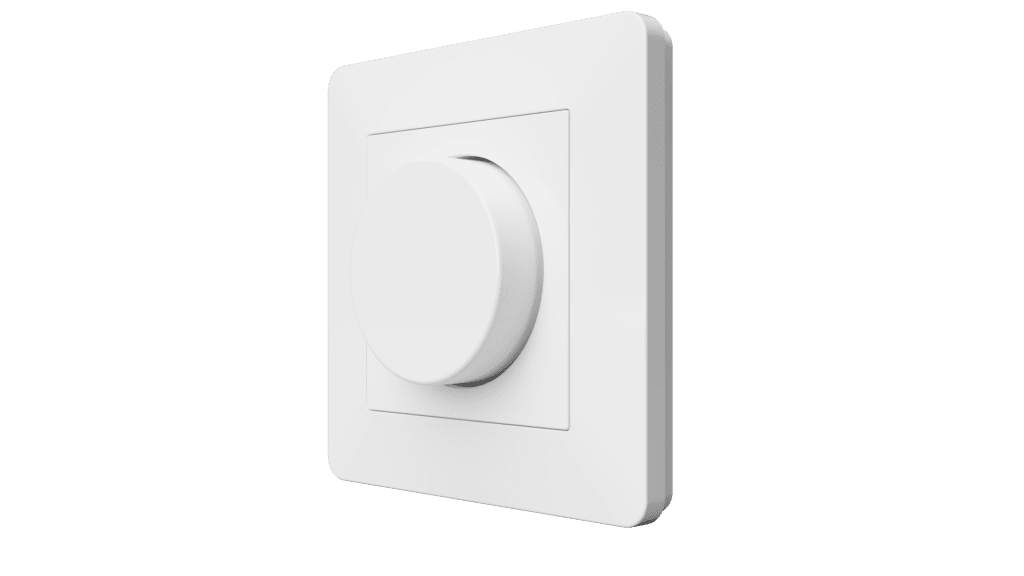

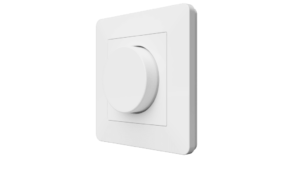

Heatit Z-Dim – Lighting Dimmer

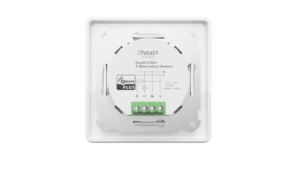

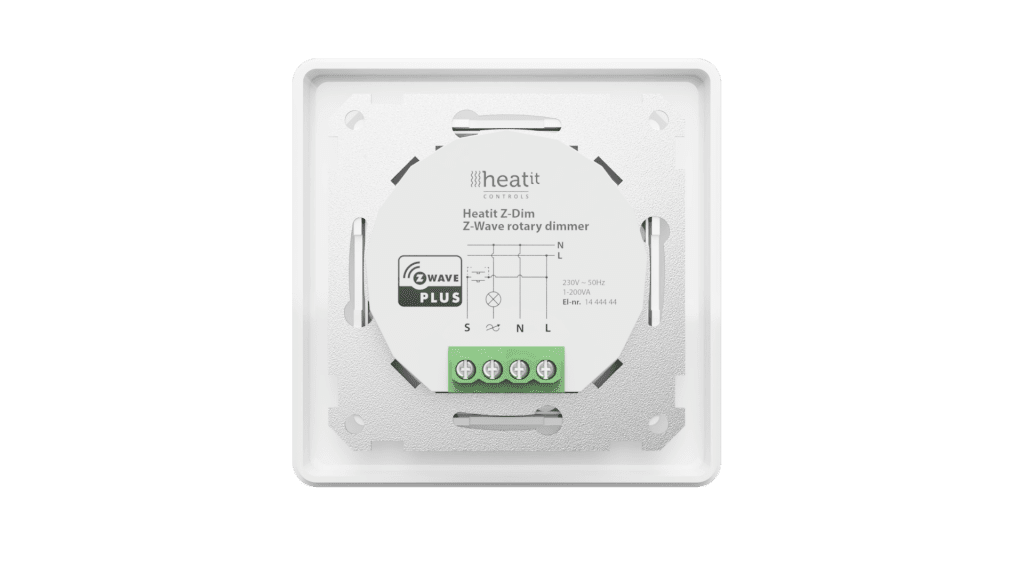

Heatit Z-Dim is a rotary Z-Wave dimmer for many different types of light sources. Heatit Z-Dim works at low loads without making the lights flicker. It dims 1-200VA LED bulbs, dimmable LED drivers and electronic transformers. L + N wires must be connected.

The dimmer is equipped with a versatile switching option. This allows you to illuminate and dim a light source from the dimmer and later turn it of with another switch. Very practical for stairwells, long corridors, etc.

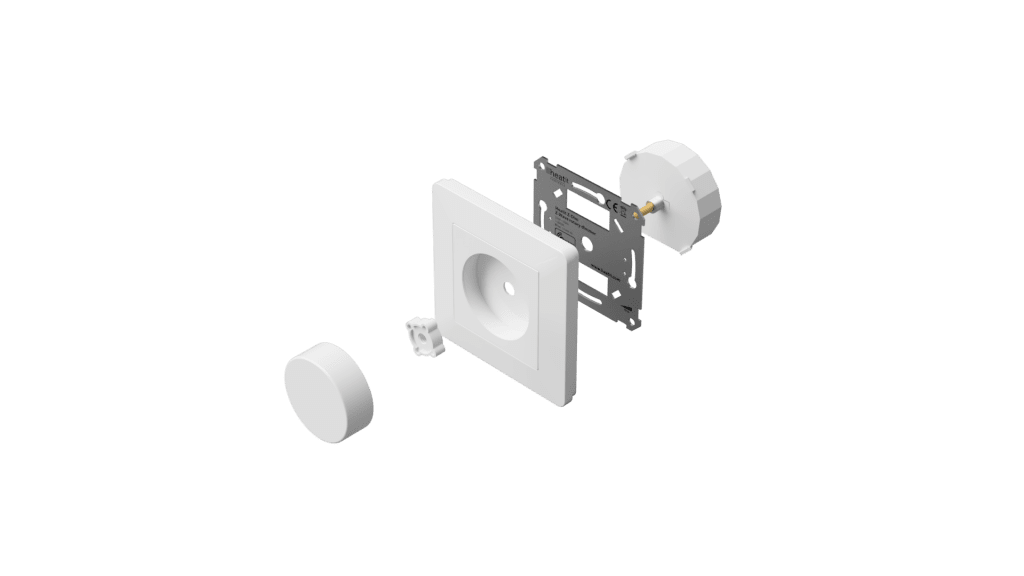

Heatit Z-Dim is compatible and can be mounted on frames type System 55.

Features:

• Z-Wave rotary dimmer.
• Compatible with: LED, 230V halogen, incandescent bulbs, dimmable LED drivers, electronic transformer.
• Starts at 1VA and dims up to 200VA LED’s.
• Versatile switching option.
• Electronic thermal shutdown with automatic reset.
• Firmware updates (OTA)
• Power measurement
• Supports encryption modes: S0, S2 Authenticated Class, S2 Unauthenticated Class

Specification:

• Protocol: Z-Wave, 868,4MHz
• Chip: Z-Wave 500 chip

• SDK 6.71.03
• Nominal Voltage: 230V AC 50Hz
• Power: 1 – 200VA
• Input current: 0,9A
• Controls pressure and rotating dimmer
• Work temperature: -20 ° C – 40 ° C
• Max. Connection: 2,5 mm²
• Installation depth: 15 mm
• IP code: IP 20
• Dimensions: (LхWхH) 84 x 84 x 43 mm
• Certificates: Z-Wave Plus, CE, EN 55015 / A2: 2009, EN 61547: 2009, EN 61000-3-2 / A2: 2009, EN 61000-3-3: 2008, EN 60669-2-1 / A12: 2010, EN 60669-1: A2: 2008, EMC 2014/30 / EU, RoHS 2011/65 / EU, LVD 2014/35 / ЕС
