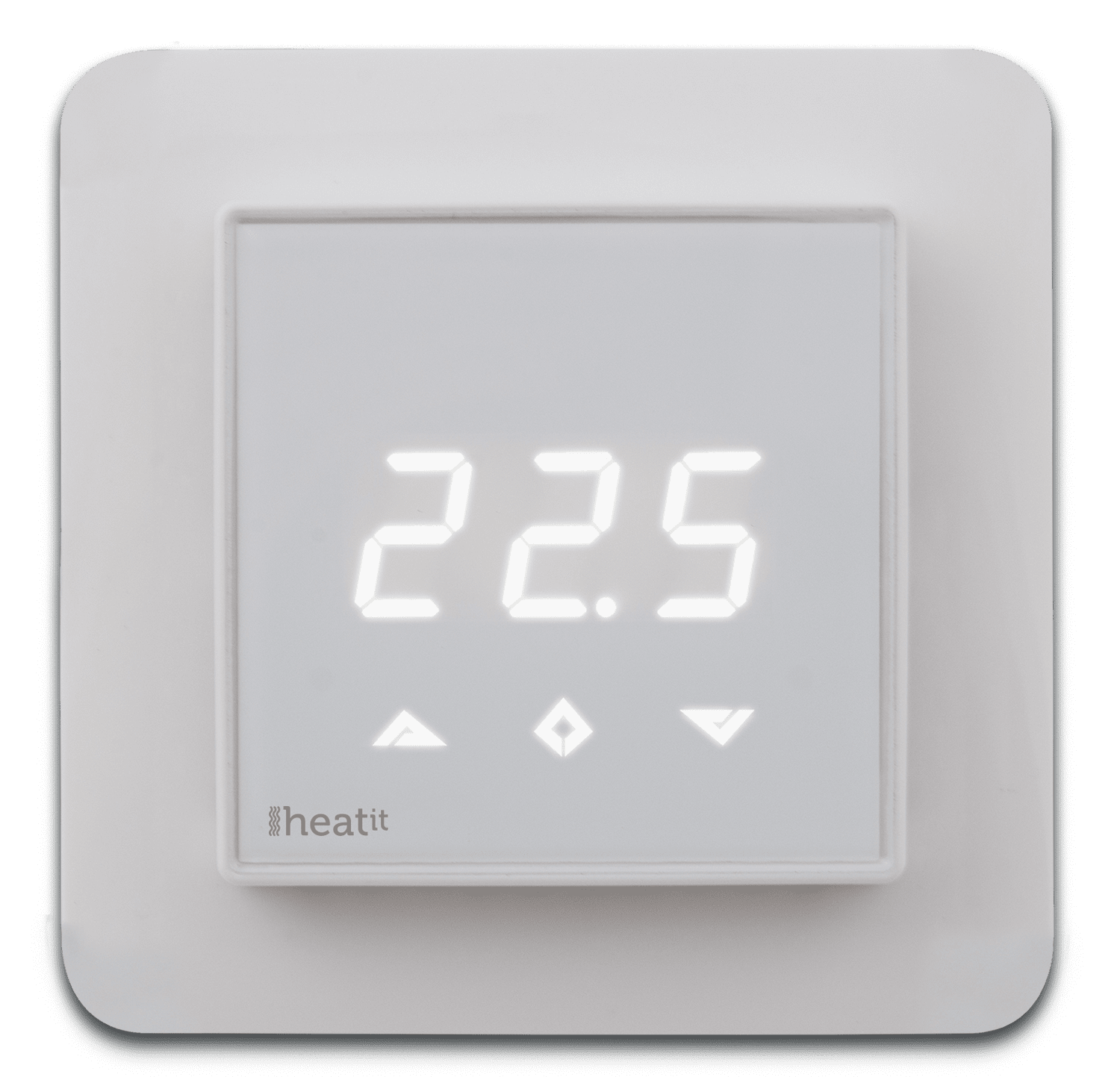

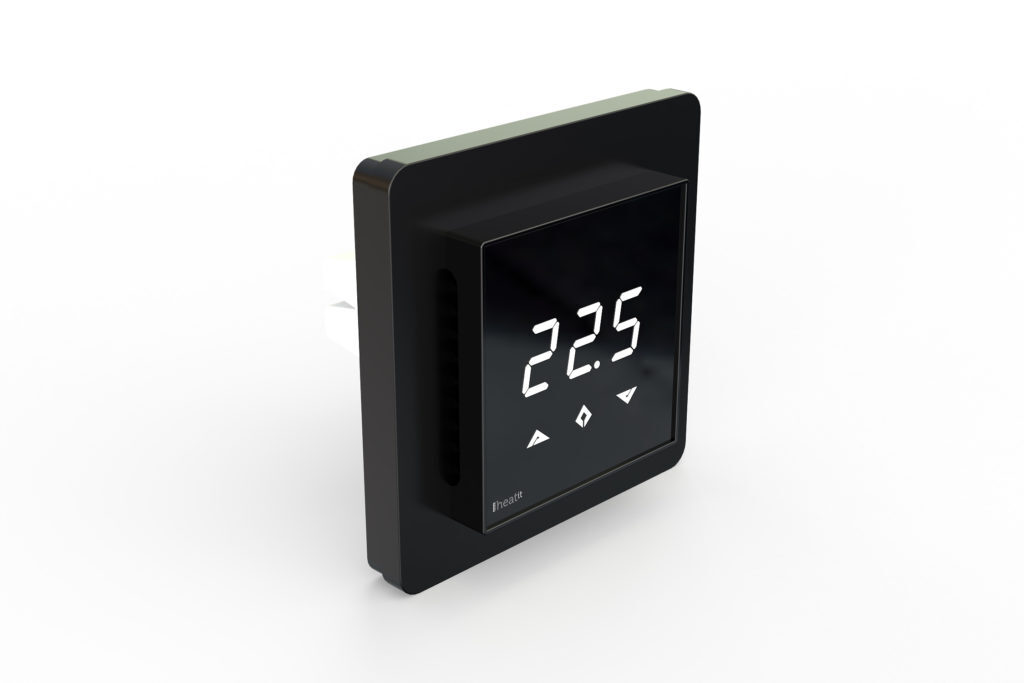

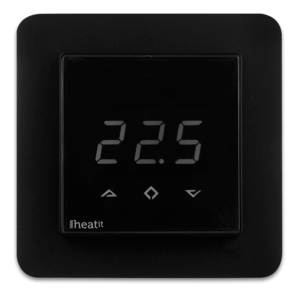

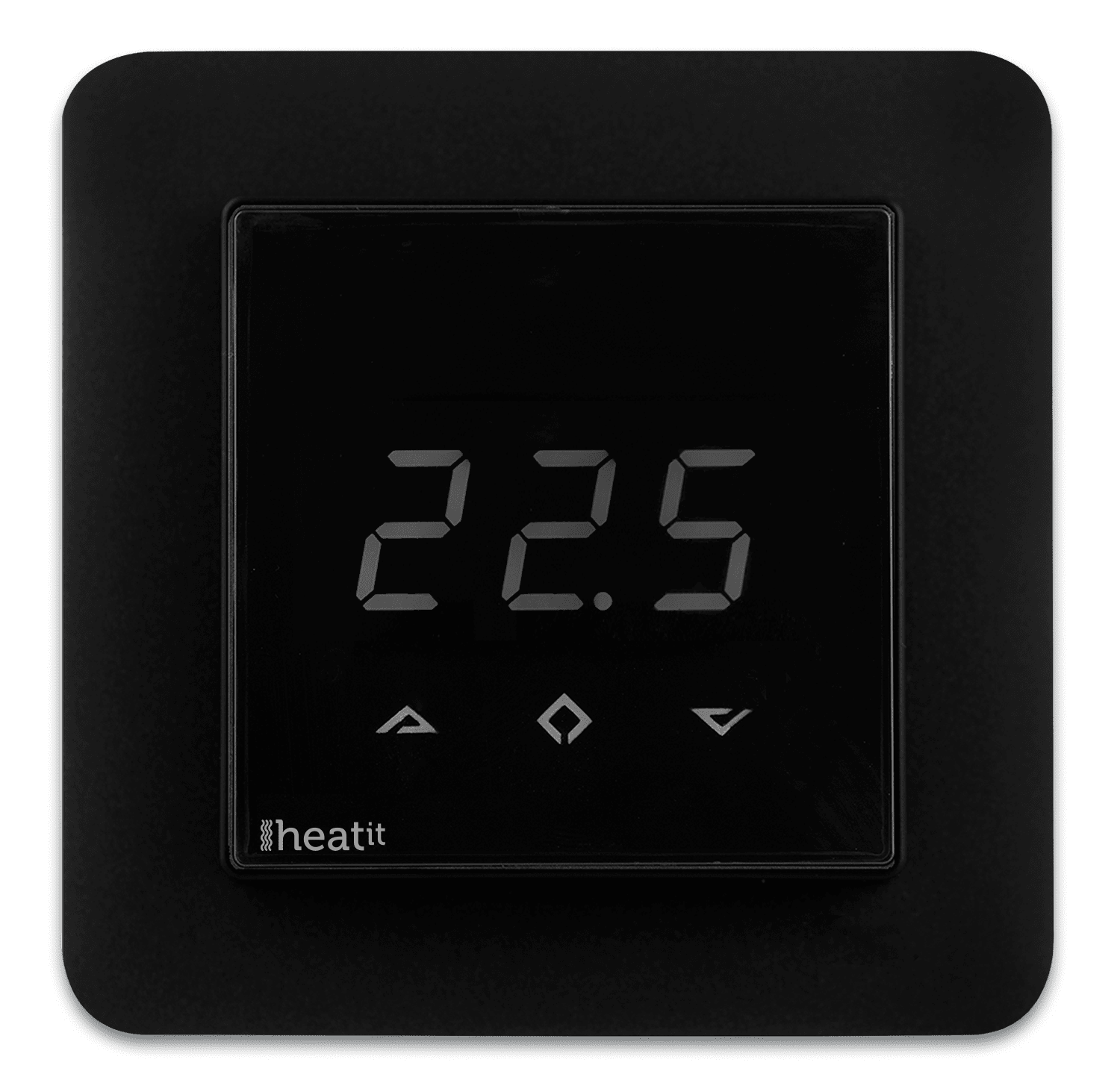

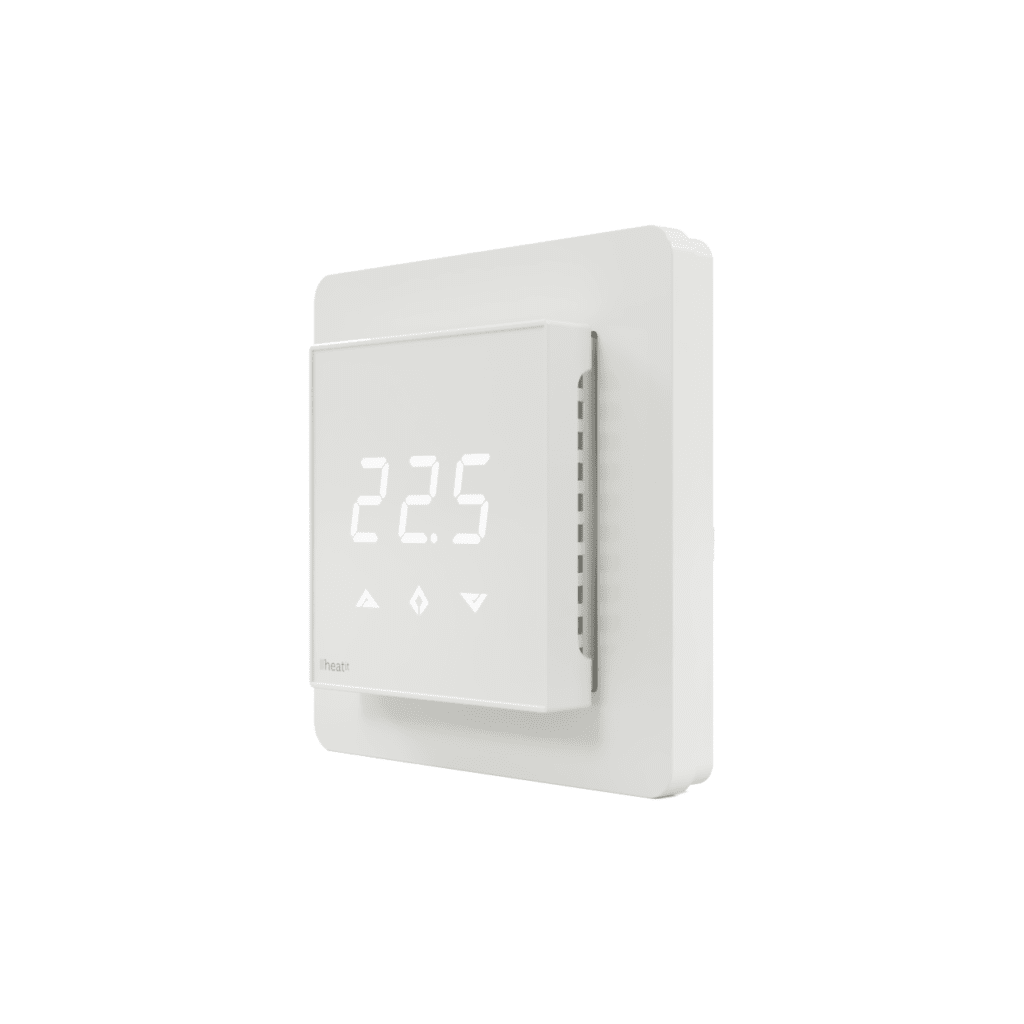

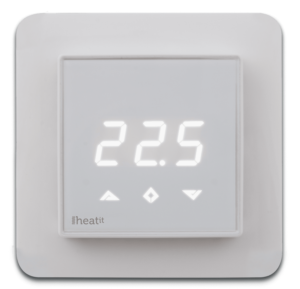

Heatit Z-TRM3 is an electronic thermostat for electric underfloor heating, designed to be installed in a standard wall box. The thermostat has a built-in Z-Wave chip that can be connected to home automation systems. Heatit Z-TRM3 is equipped with a single relay and can be mounted with System 55 frames. The thermostat can withstand a load of max. 16A/ 3600W at 230V. The thermostat can be used for water-based heating if it is connected to Heatit Z-Water.
Features:
- Floor sensor.
- Internal room sensor
- External room sensor (connected with cable)
- Temperature limiter
- SmartStart
- Weekly program/ set via controller.
- Temperature reading in the controller.
- Firmware update (OTA)
- Power measurement
- Relay LED status
- Single relay
- Lock mode /Lock mode for children
- Calibration
- Works with 5 associative groups with up to 5 devices in each group.
- Supports encryption modes: S0, S2 Authenticated Class, S2 Unauthenticated Class
Specification:
- Protocol: Z-Wave – 868,4MHz
- Chip: Z-Wave 500 chip
- Nominal Voltage: 230V 50 / 60Hz
- Max. Load: 3600W (Resistive load) 750W self-regulating heating cable.
- Max. Current:16А
- Energy consumption <2,0W
- Ambient temperature 0 ° C to 40 ° C (During work)
- Temperature range from 5 ° C to 40 ° C
- Hysteresis 0,3 ° C to 3,0 ° C (default 0,5 ° C)
- Compatible with NTC value sensors 10, 12, 15, 22, 33 & 47 kΩ at 25 ° C
- IP code: IP 21
- Certificates: Z-Wave Plus, CE, EN 60730-1, EN 60730-2-9, EMC 2014/30 / EU, RoHS 2011/65 / EU, LVD 2014/35 / EU
