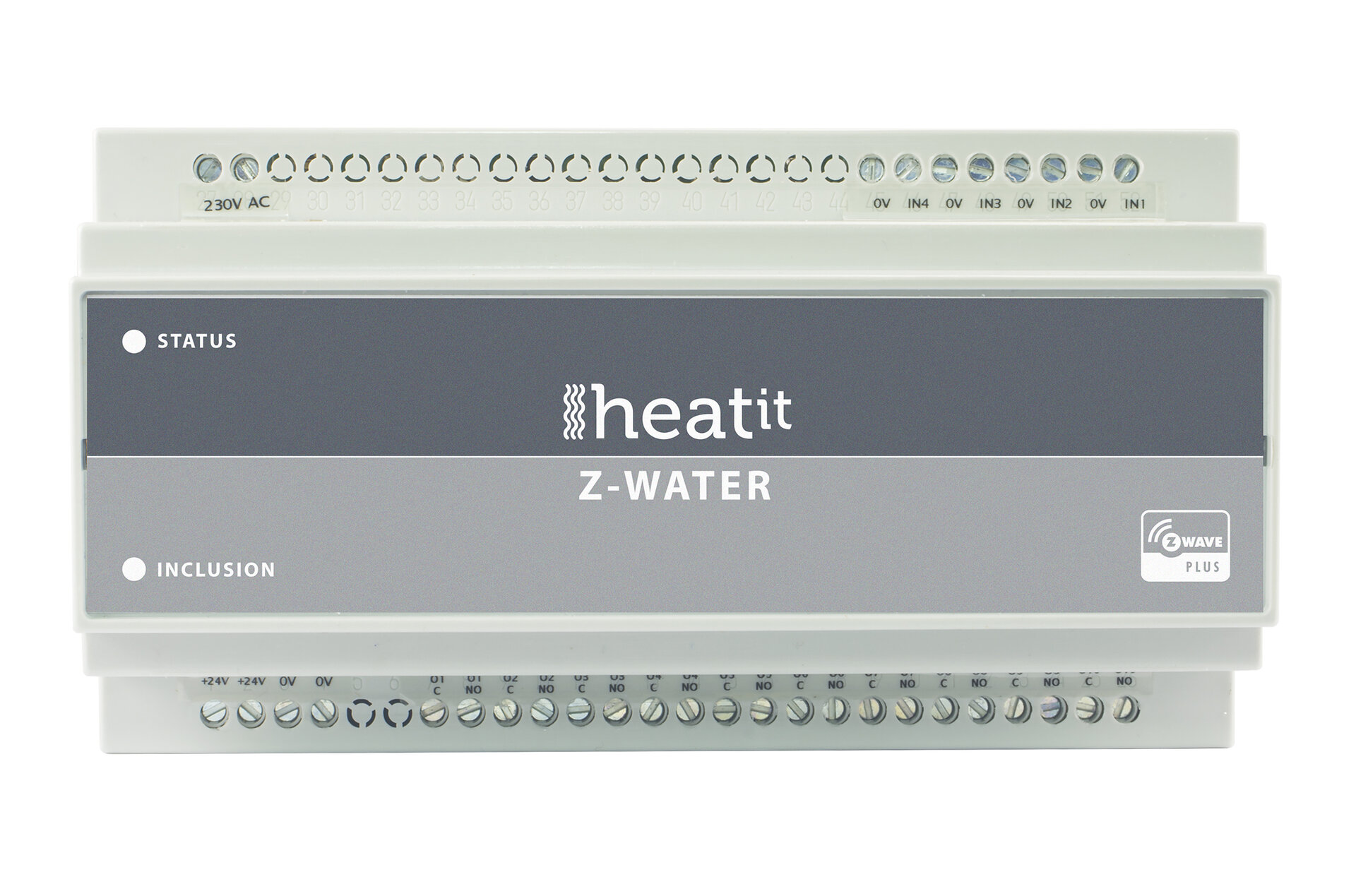

Heatit Z-Water

Heatit Z-Water is a regulator for electric actuators of heating valves and is designed for DIN rail mounting.

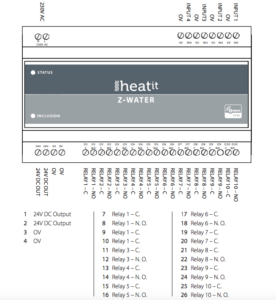

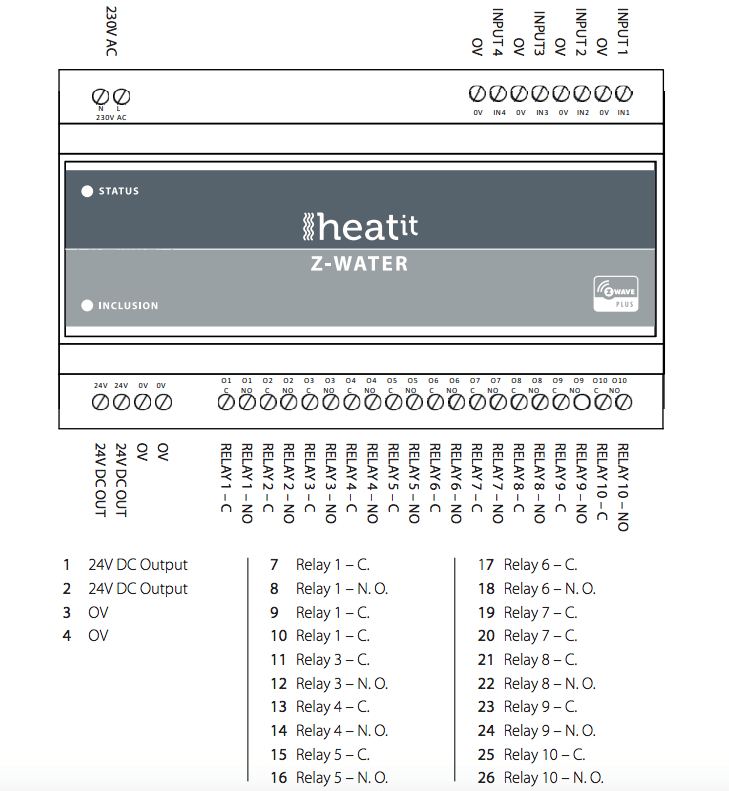

Heatit Z-Water is equipped with 10 relay outputs and has 4 analogue inputs. The module can be powered by 230V AC and is able to control actuators powered by 24V DC or 230VAC. Heatit Z-Water relay outputs can be freely controlled via the Z-Wave network and can be used for several purposes, for example control/ switch On & Off lighting, control of valve actuators of an underfloor heating system or control of other home automation systems.

Features:

• Relay outputs can be used to control actuator/ valves for water heating systems.
• It can be used to control both 24V electric actuators and 230V electric actuators.
• Can be used together with Heatit Z-Temp2 or Heatit Z-TRM3 thermostat in any area

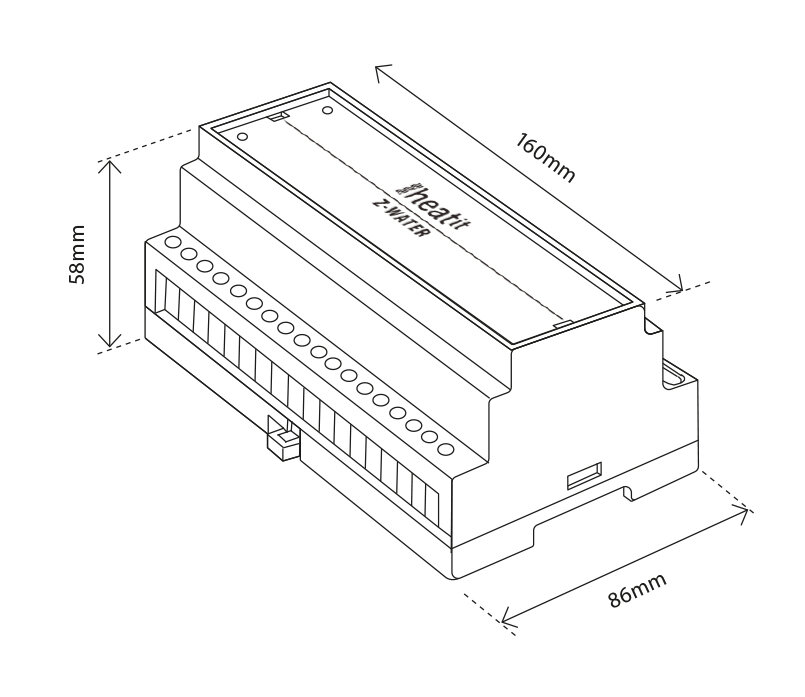

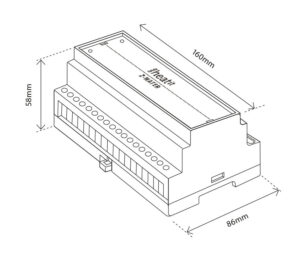

• DIN rail mounting
• Works as a Z-Wave repeater
• Firmware updates (OTA)
• Supports encryption modes: S0, S2 Authenticated Class, S2 Unauthenticated Class0


Specification:

• Protocol: Z-Wave
• SDK 6.71.00
• Nominal Voltage: 100V – 240V 50 / 60Hz
• Energy consumption: 0.6W in standby mode

• Fuse 3.15A Fast acting, UMF 250 Schurter Inc., part №: 3405.0171.11
• 24V DC Output Max. 1,17A, 28W
• Relay outputs: 5А
• Max. Switching voltage: 250V AC, 30V DC
• Max. Switching current: 5А
• Max. Switching power: 1250 VA, 150W
• Outputs
• Max. Input voltage: 10V DC
• Input impedance: 10 KΩ
• Output voltage of the circuit: 5V DC
• Supports Explorer frame
• Slave device type with routing options
• General device class: SWITCH_BINARY
• Specific device class: Valve Open Close
• Routing: Yes
• FLiRS: No
• Certificates: Z-Wave Plus, CE, EN 50491-3: 2009, EN 60669-2: 2004, EMC 2014/30 / EU, RoHS 2011/65 / EU, LVD 2014/35 / EU
