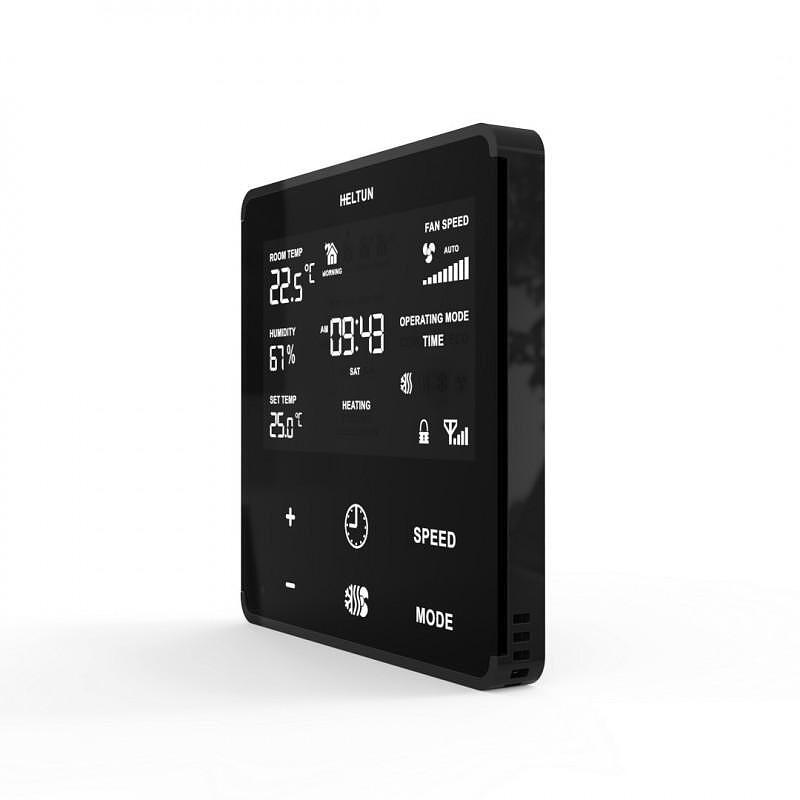

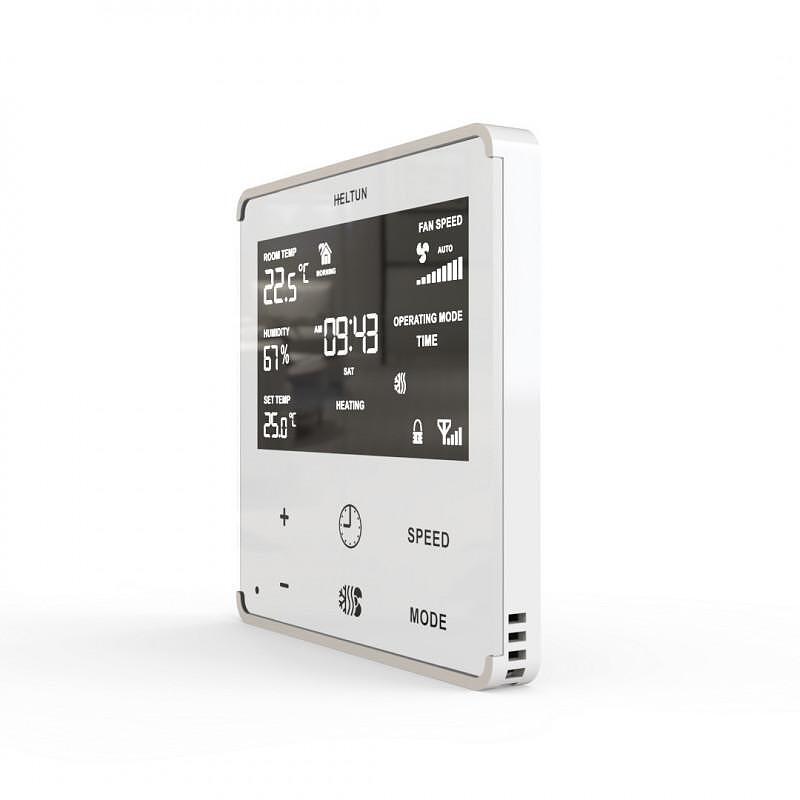

HELTUN Z-Wave Fan Coil Thermostat

The HELTUN Z-Wave Fan Coil Thermostat: a versatile tool for integrating 2-pipe and 4-pipe fan coil units into a smart home environment for remote control and energy savings. With compatibility for popular smart home hubs and elegant, thin design, this thermostat offers unique capabilities such as control of water radiators, underfloor heating, and more. With built-in power consumption tracking, sensitive touch controls, and a large LCD screen with ambient light control, this thermostat offers convenience and safety features such as overheating protection and child-safe mode. Easy to install, this Z-Wave Plus v2 compatible device is the perfect addition to your smart home.

Features :

• Front frame dimensions: 89x89x9mm
• Back dimensions: 53x53x28mm
• Material: Flame retardant plastic, tempered glass
• 3 frame colors: Silver, Black, White
• 2 glass colors: White, Black (custom on request)
• LCD: 72x42mm, black with white segments
• 6 sensitive capacitive touch buttons
• Operating temperature: 0°C – +50°C
• Power supply: 24 – 265 VAC/VDC
• Power consumption: 1W
• 5 relays with resistive load up to 5A each
  • 2 relays for cooling and heating valves
  • 3 relays for fan speed
• 2 independent relay inputs, dry contact type
• Relay life time: 100 000 switches
• Embedded ambient light sensor
• Embedded room temperature sensor
  • Measurement range: -30°C to +80°C
  • Accuracy: ±0.5°C
• Embedded humidity sensor
  • Measurement range: 0 – 80%RH
  • Accuracy: ±3.0%RH
• IP class: IP21
• Z-Wave Frequency: All countries
• Z-Wave SDK: V7.11.1
• Z-Wave Plus module: ZGM130S

*Compatible with: Aeotec, ComfortClick, Eedomus, Ezlo, Fibaro HC LITE, HC2, HC3, Jeedom, Home Assistant, Homey, Hubitat, RazBerry, SmartThings, Thinka, Zipato gateways and Z-Wave JS library
