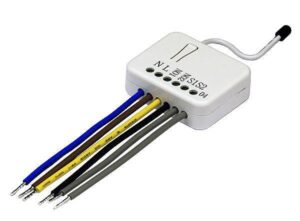

Philio Double Relay 2×1.5 kW with Energy Measurement

Philio Double Relay PAN04-1B provides control of two circuits via Z-Wave protocol, allowing you to save existing electrical switches. In this way, you will be able to switch on and off the connected consumers via the existing electrical switches, Z-Wave controller or via the button on the micromodule itself.

The micromodule has a built-in technology for recognizing the type of load, which allows it to turn on and off different types of lighting fixtures (incandescent, fluorescent or LED lamps).

In addition, the device has the ability to read and send the current value of electricity consumed by the load included in the circuit, as well as the total energy consumed in KWh.

The module has built-in overload protection.

You need to have a Z-Wave controller to connect this module to your network.

The module works as a Z-Wave repeater, which expands and improves the network coverage in your home.

* You need to have a neutral wire to connect this module.

Features:

• Remote switching on and off of two consumers
• Installation behind existing electrical switches
• Possibility for use with both push-button and ordinary electric switches
• Uses 400 Series Z-Wave chip, supporting multi-channel operations and 9.6 / 40 / 100kbps data transfer rate
• SDK Z-Wave 6.02
• Optimized antenna range
• Automatic function for connection to the Z-Wave network
• Overload protection
• ON / OFF function
• Automatic status report after power on / off
• Automatic report of the consumed electric energy from the loads at 5% change
• Very low self-consumption according to European Directive 2009/125 / EC no. 1275/2008
• Easy installation
