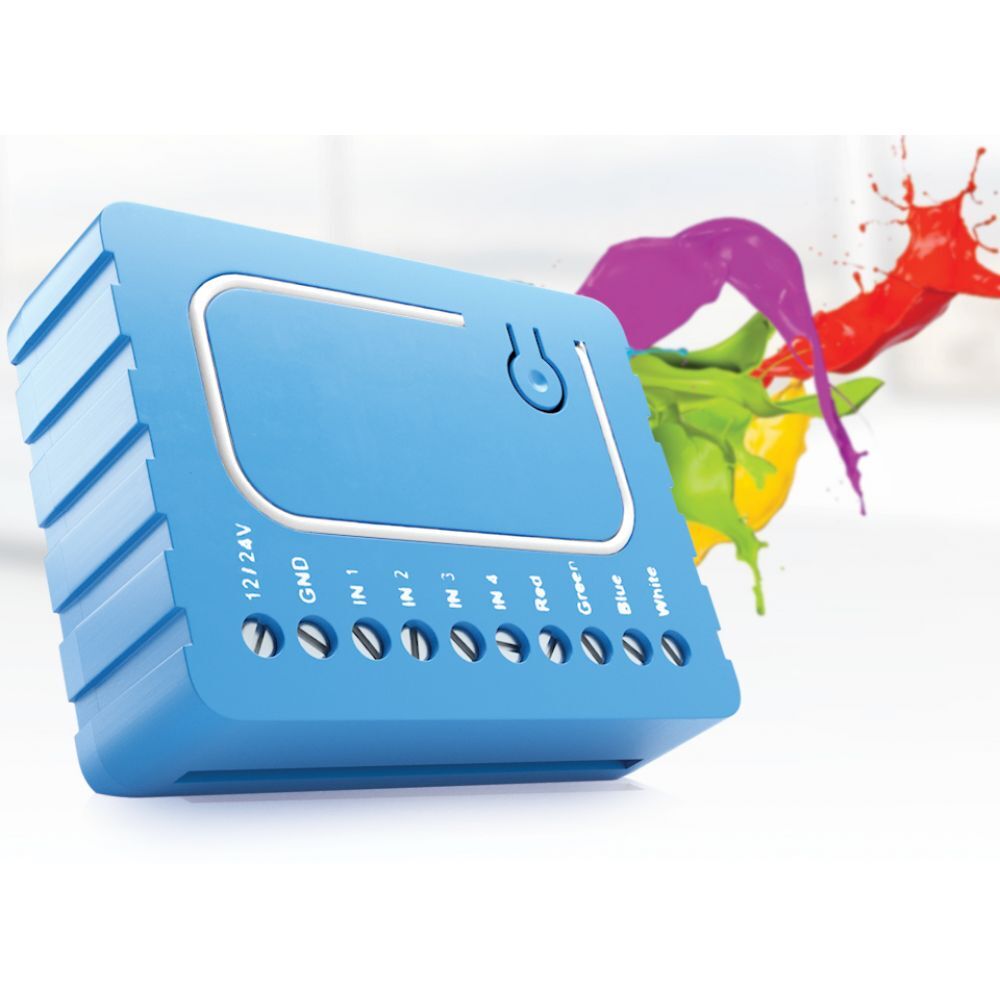

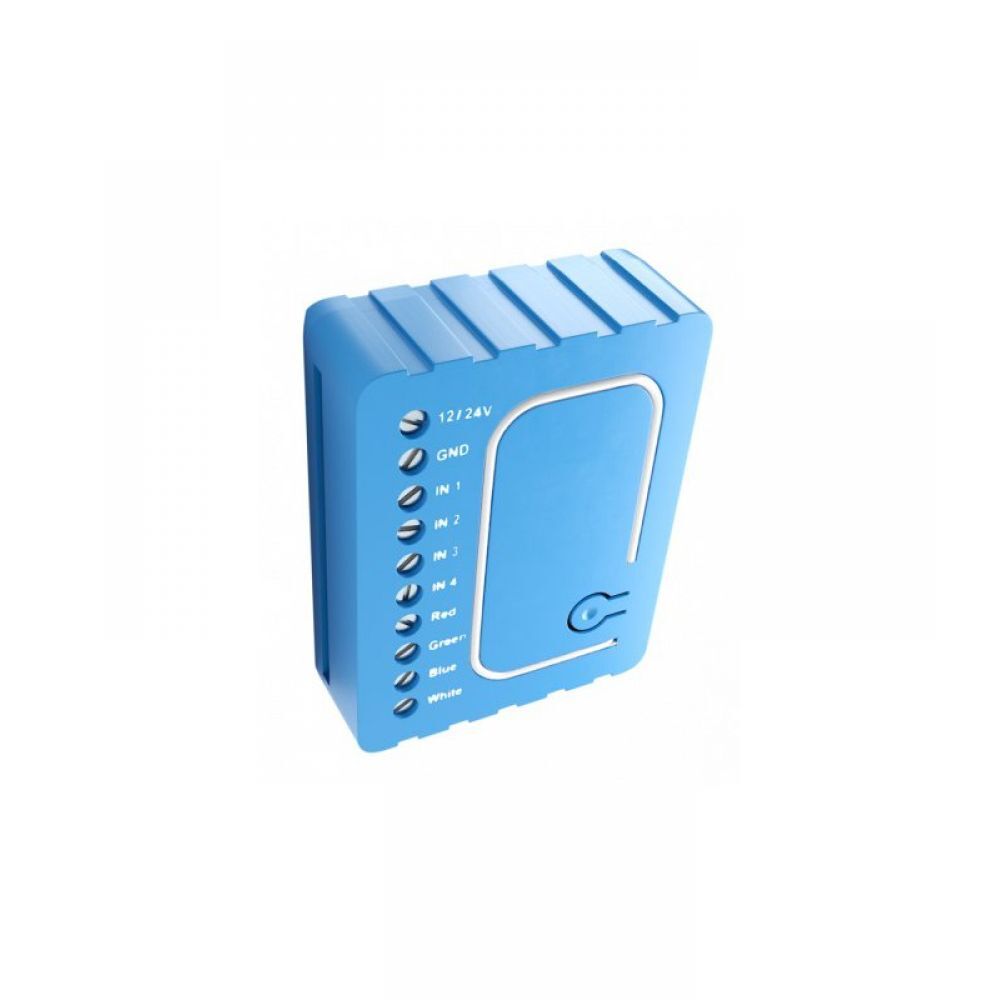

Qubino – RGBW Dimmer

The Qubino RGBW Dimmer is designed to control your RGB / RGBW LED strips or bulbs to create countless color options and includes 5 special scene effects (ocean, flash, rainbow, snow and sun). The wide range of colors allows you to “paint” your home according to your mood. The module can be used in combination with other Z-Wave devices and can be controlled both remotely, via the Z-Wave network, and via wall switches.

The dimmer can operate in a wide temperature range from 0 ° C to 40 ° C. Used to mix the colors of RGB / RGBW / LED strips and LED bulbs. Each module also acts as a repeater to improve the range and stability of the Z-Wave network.

Features:

• Power supply: 12 / 24V DC
• PWM output frequency: 488Hz
• Rated output power: 8A for single output channel, 13A at max.(3,25A for R.G.B.W. single output channel is suggested)
• Max load (e.g. halogen bulbs): At 12V- 156W combined, At 24V- 312W combined
• LED Indicator: Red/Green *1
• Operation temperature: 0℃~40℃
• Distance: up to 30 m indoors
• Dimensions (WxHxD): 40.5 mm x 32 mm x 14.5 mm
• Electricity consumption: 12V – 0.48W; 24V – 0.72W
• For installation in boxes: Ø ≥ 60 mm or 2M
