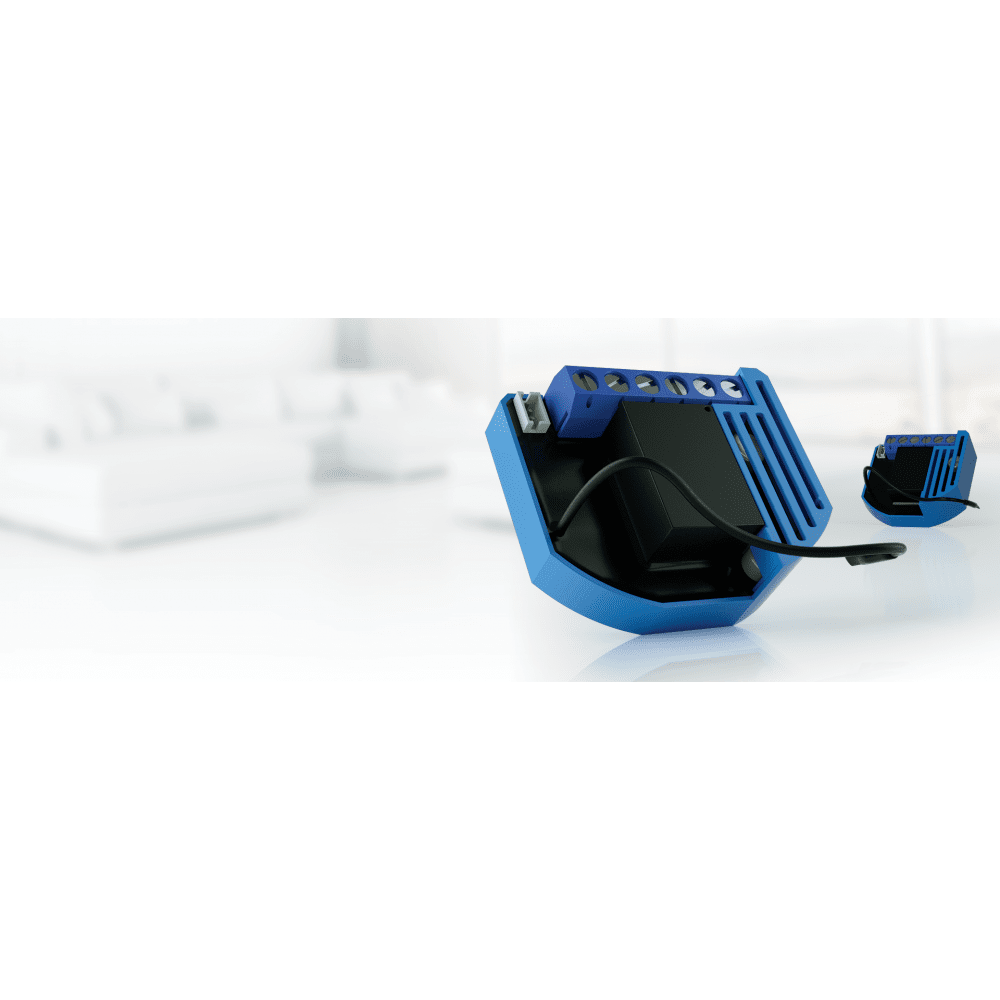

Qubino – Single Relay Module

Qubino Flush 1 Relay is a single-channel Z-Wave switch that is capable of switching one circuit and a maximum current of 10A. It connects wirelessly to your Z-Wave controller and fits into the console box of an existing wall switch, allowing you to wirelessly control devices.

This module is intended for connection to a three-wire network, which means that a neutral conductor must be present in the console box.

Features:

• Monitor energy consumption
• Low power consumption 0.4W
• Installation behind existing electrical switches
• Maximum load at alternating current (resistive load): 1 X 10A / 230V AC
• Maximum load at direct current (resistive load): 1 X 10A / 24V DC – 240W
• Accuracy of consumption measurement: ± 3W (@ <50W), ± 3% (@> 50W)
• It is installed in boxes with size: Ø ≥ 60mm or 2M
