Shelly 1 – WiFi Relay

Shelly 1 controls an electrical circuit, e.g. lighting, up to 3.5kW. The device is available for monitoring and control, allowing remote control of electrical circuits via mobile phone, computer or home automation system.

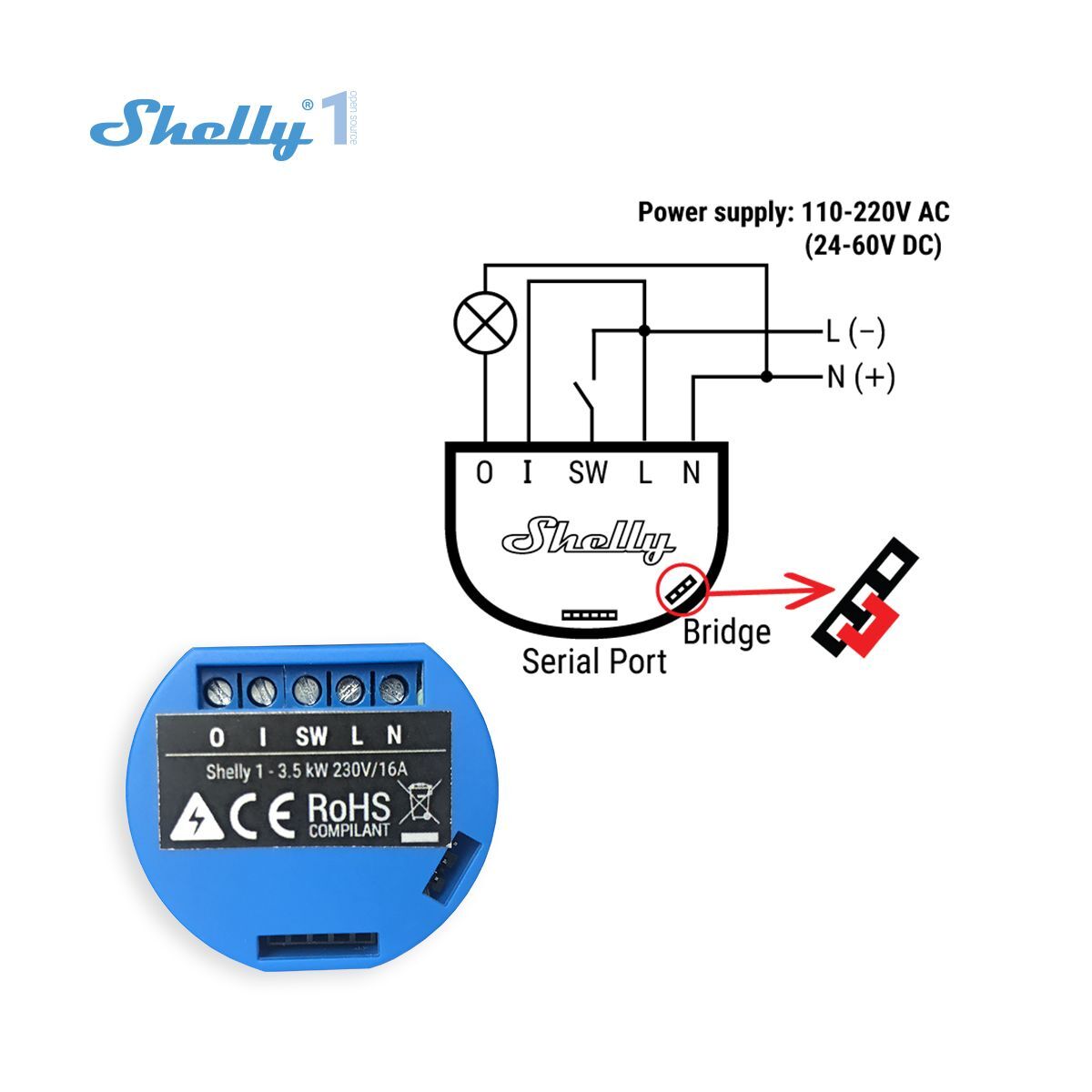

* A neutral conductor is required for the installation of this relay!

Features:

• Model: Shelly1
• Dimensions: 41x36x17 mm
• Radio protocol: WiFi 802.11 b / g / n
• Power supply: 100-240V AC, 50/60 Hz; 24-60V DC; 12V DC
• MAX load: 16A / 240V
• Operating temperature: -40 ° C ~ 40 ° C
• Operating frequency: 2400 ～ 2483.5 MHz
• Range: up to 50 meters outdoors; up to 30 meters indoors
