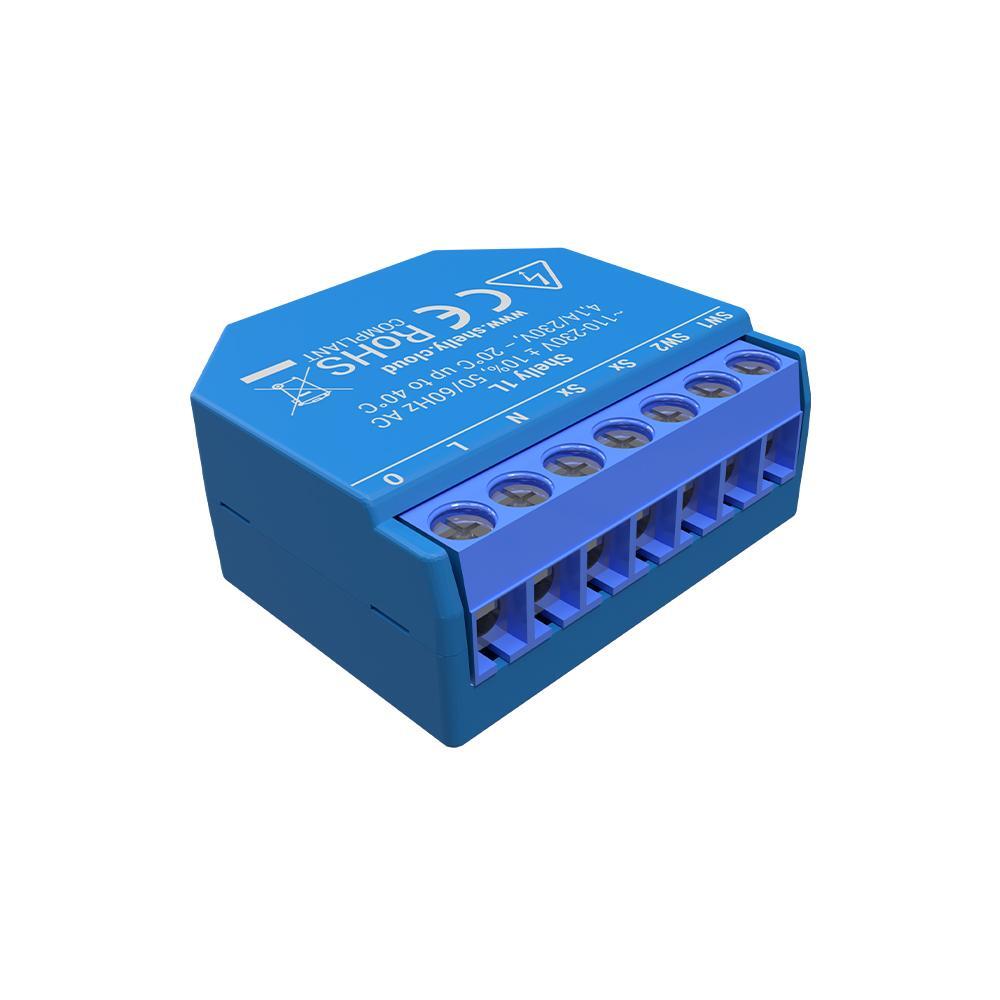

Shelly 1L

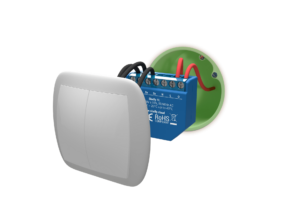

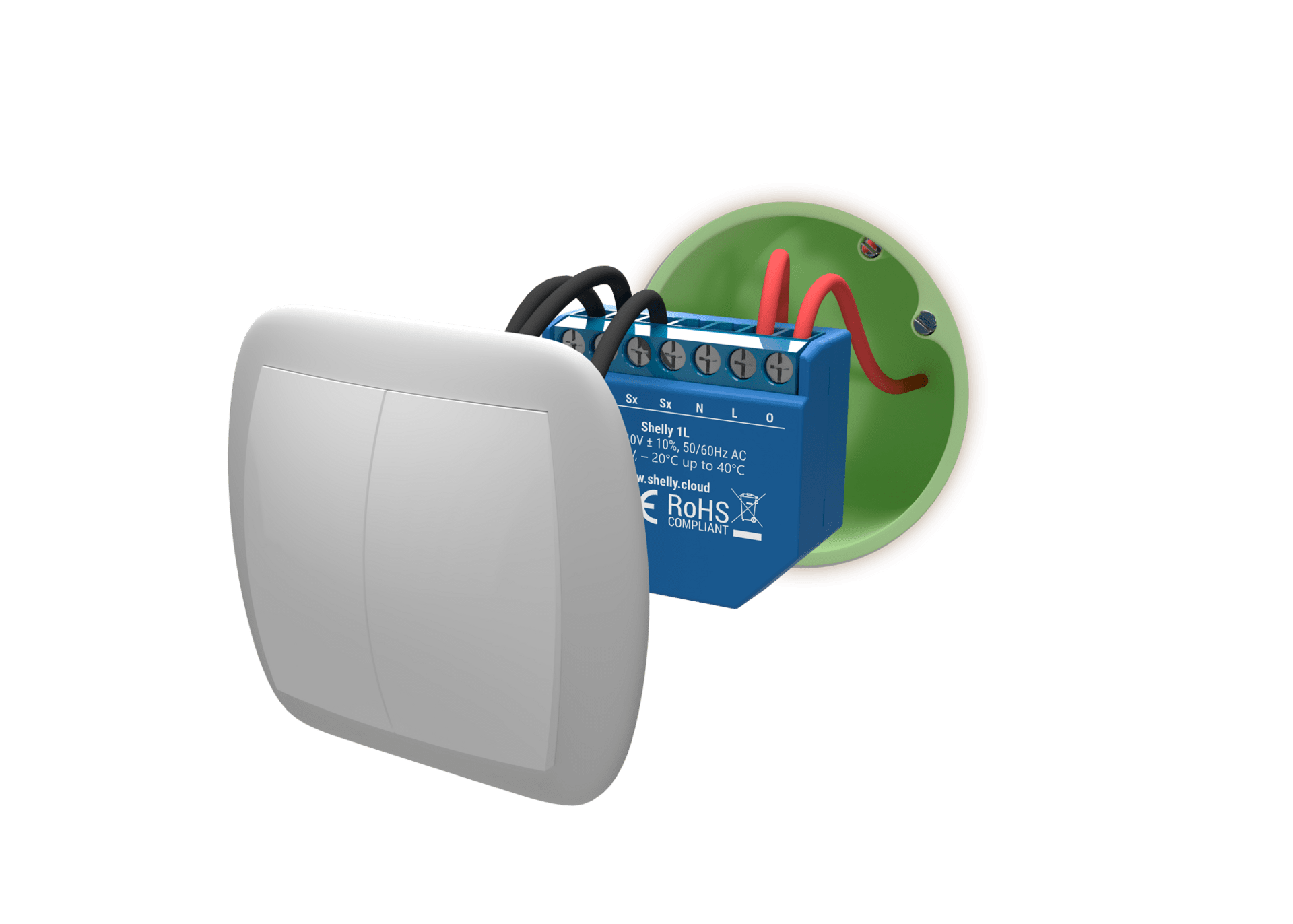

Shelly 1L controls one electrical circuit with consumption up to 1kW. Suitable for installation in a standard wall bracket.

Shelly 1L can be installed with or without a neutral wire. When the device is used without a neutral wire, at least 20W consumption is required to operate. If the connected lighting is less consumable, it is necessary to use Shelly Bypass.

Power on the device and control your light, fan, or other appliances only by Live wire, no neutral required to be connected to the device.

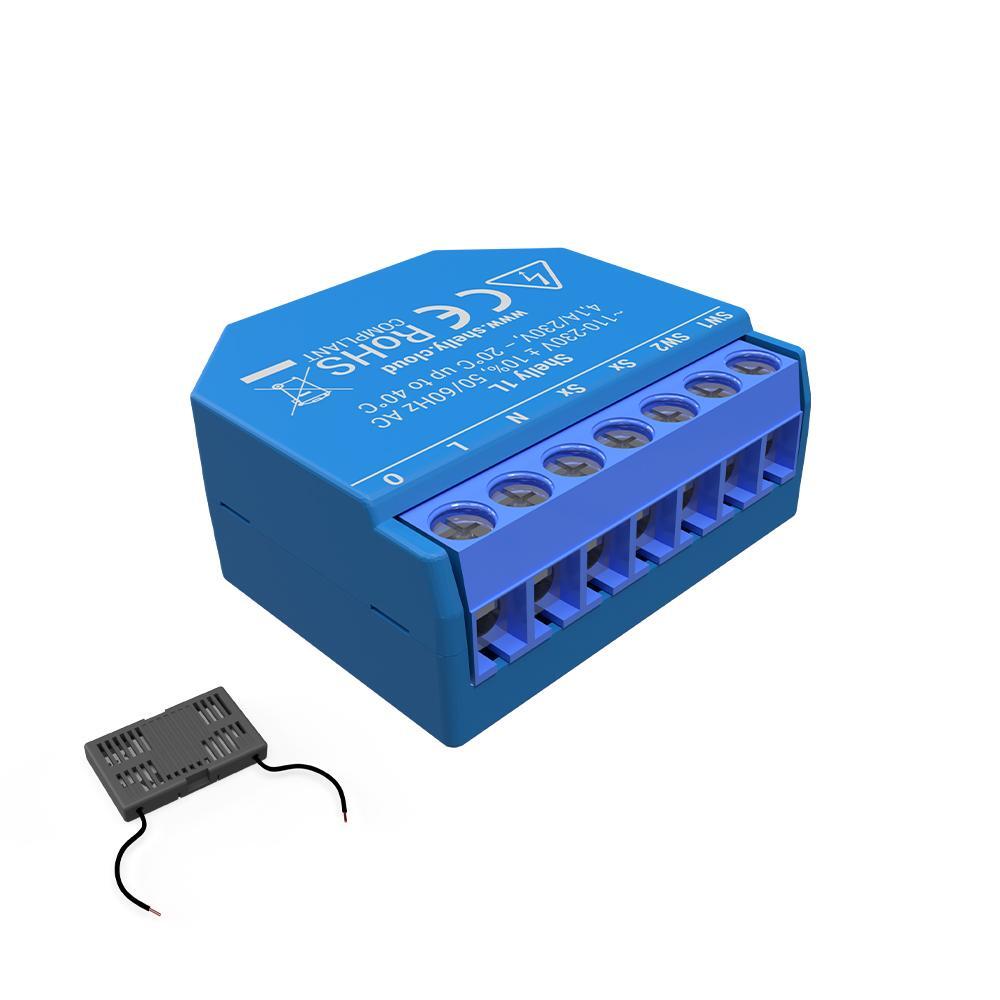

* Shelly Bypass is an optional accessory that is sold separately.

Features:

• Model: Shelly1L
• Power supply: 110-230V ± 10% 50 / 60Hz AC
• Maximum electrical load:
  • 4.1A / 230V
  • 4.1A / 110V
• Maximum short-circuit electricity: 5A (1200W)
  • 1200W / 230V
  • 600W / 110V
• Supported load type (with and without zero)
  • Resistive – eg lights, heaters, etc.
  • Inductive – for example LED lights, transformers, fans, motors, etc.
  • Capacitive for example starting capacitors of motors, generators, synchronous motors, etc.
• Supported light types:
  • Incandescent lamps
  • Fluorescent lamps
  • Halogen lamps
  • Adjustable LED
  • Non-adjustable LED
  • Fluorescent tubes
  • Neon lamps
• Operating temperature: from -20 ° C to + 40 ° C
• Radio protocol: WiFi 802.11 b / g / n
• Radio frequency: 2400 – 2500 MHz
• Range of action: up to 50 meters outdoors; up to 30 meters in a building
• Dimensions (HxWxD) 41 x 36 x 17 mm
• Electrical consumption: <1 W
