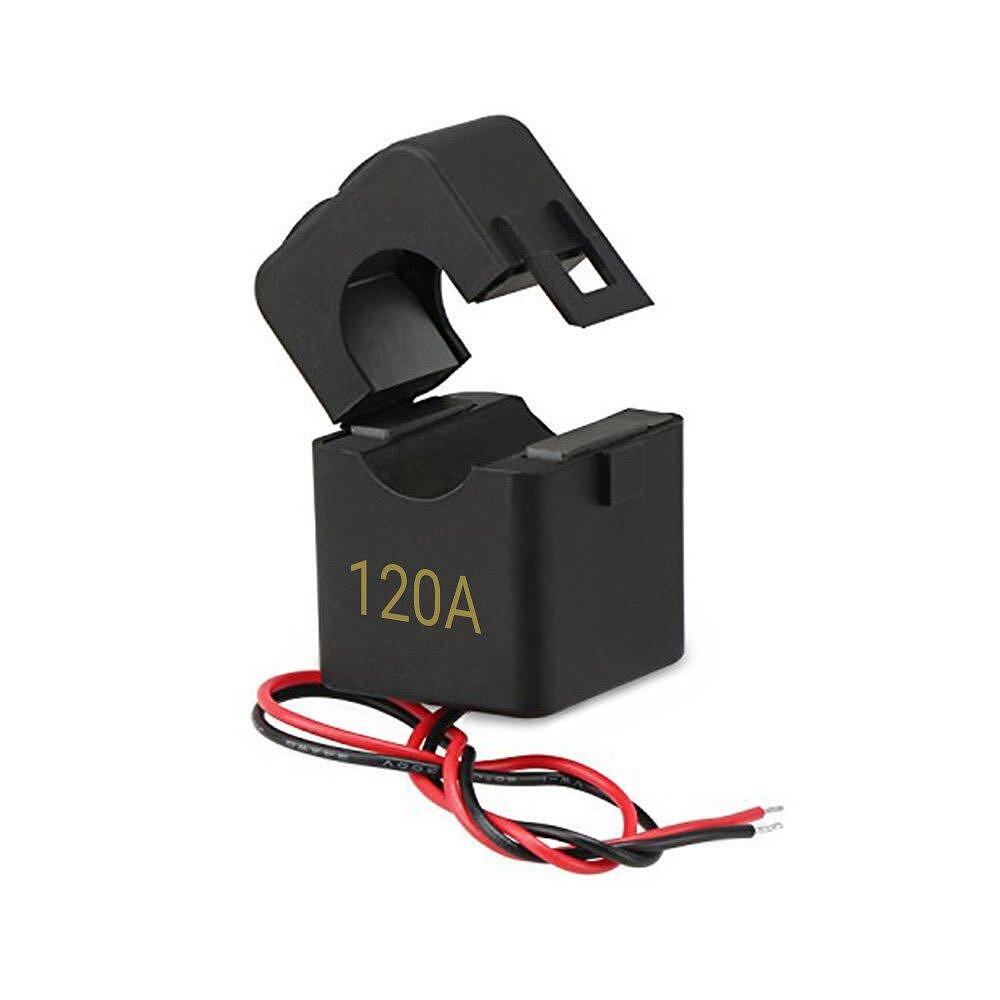

Shelly Current Transformer 120A

This split core current transformer allows to measure current up to 120A. Voltage measurement is performed by the Shelly EM module.

*For correct working transformer needs to be connected to Shelly EM module.

Features:

• Current Transformer : 120A
• Accuracy : 1%
• Core : Ferrite core
• Electrical Strength : 3000VAC 1mA60s
• Internal diameter : 17mm
• Load Resistance : 20Ω
• Rated Primary Current : 120A
• Rated Secondary Current : 40mA
• Saturation current : ≥120A
• Size : 31mm x 45mm x 30mm
• Compatible with : Shelly EM
