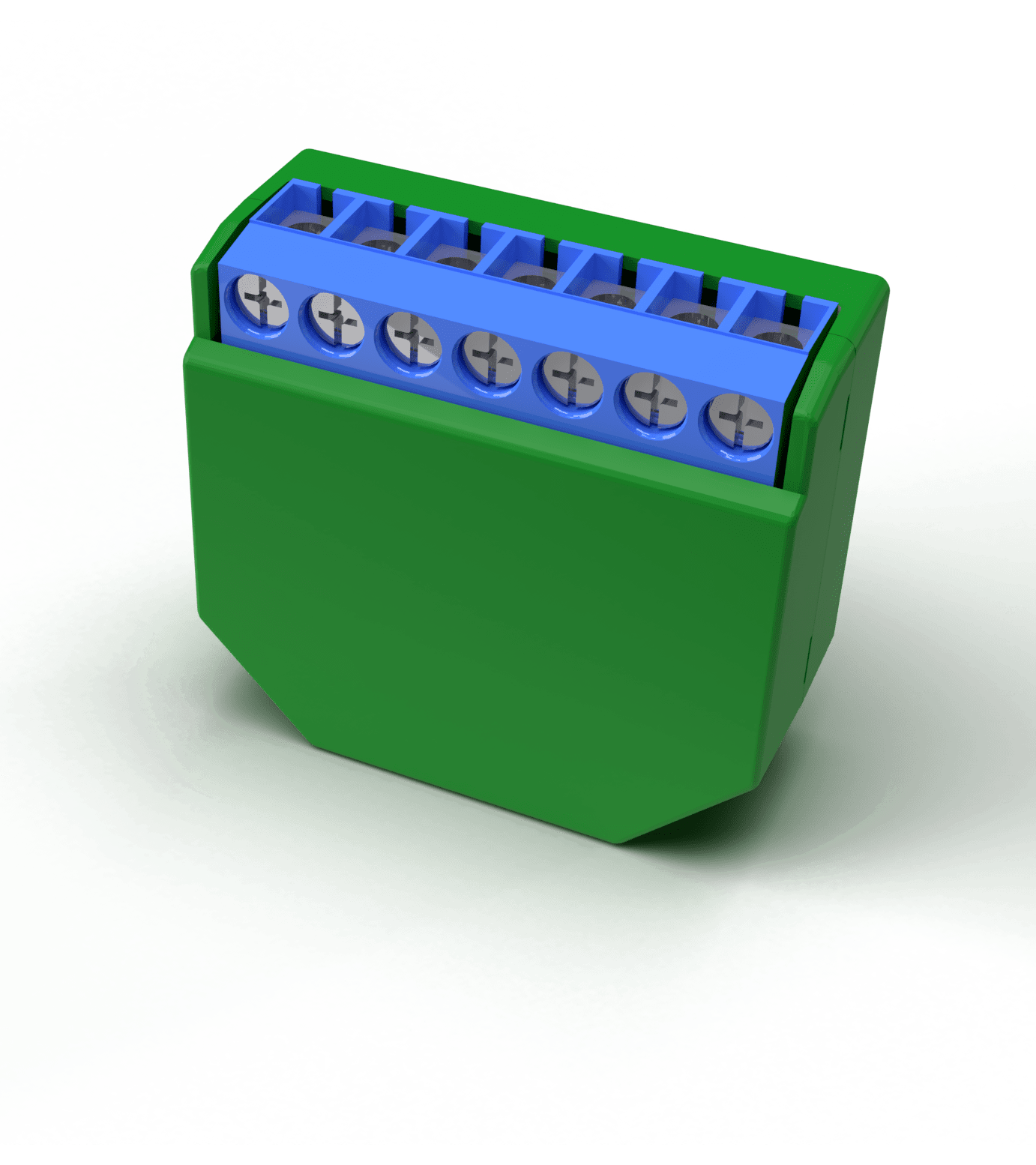

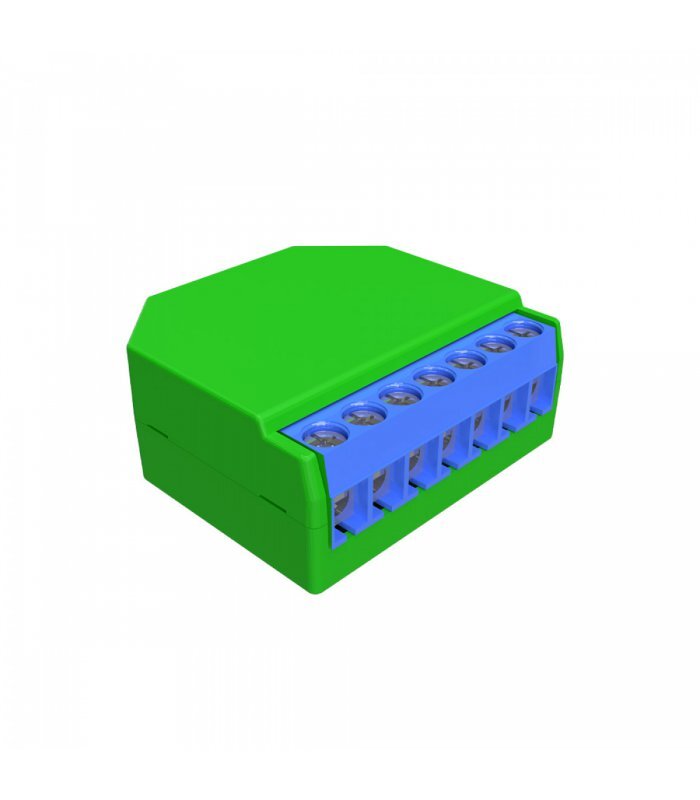

Shelly Dimmer 2

Shelly Dimmer 2 is designed to control and dim light. It is designed for installation in a standard wall bracket, behind the lighting switches.

Shelly Dimmer 2 can be installed with or without neutral wire. When the device is used without a neutral wire, at least 10W of power consumption is required to operate. If the connected lamp has less consumption, it is necessary to add Shelly Bypass.

* Shelly Bypass is an optional accessory that is sold separately.

Features:

• Model: Shelly Dimmer 2
• Power supply: 110-240V ± 10% 50 / 60Hz AC
• Operating current: 0.1 – 1.1A
• Device temperature protection: 105 ° C
• Operating temperature: from 0 ° C to 35 ° C
• Supported light types:
  • Incandescent bulbs and halogen bulbs: 1-220W
  • Dimmable LED bulbs: 50-200VA / 1W – 200W
  • Resistive-inductive loads ferromagnetic transformers: 50-150VA
• Operating temperature: from 0 ° C to 35 ° C
• Operating frequency: 2400 ～ 2500 MHz
• Range: up to 50 meters outdoors; up to 30 meters indoors
• Radio protocol: WiFi 802.11 b / g / n
• Dimensions (HxWxD): 42 x 36 x 14 mm
