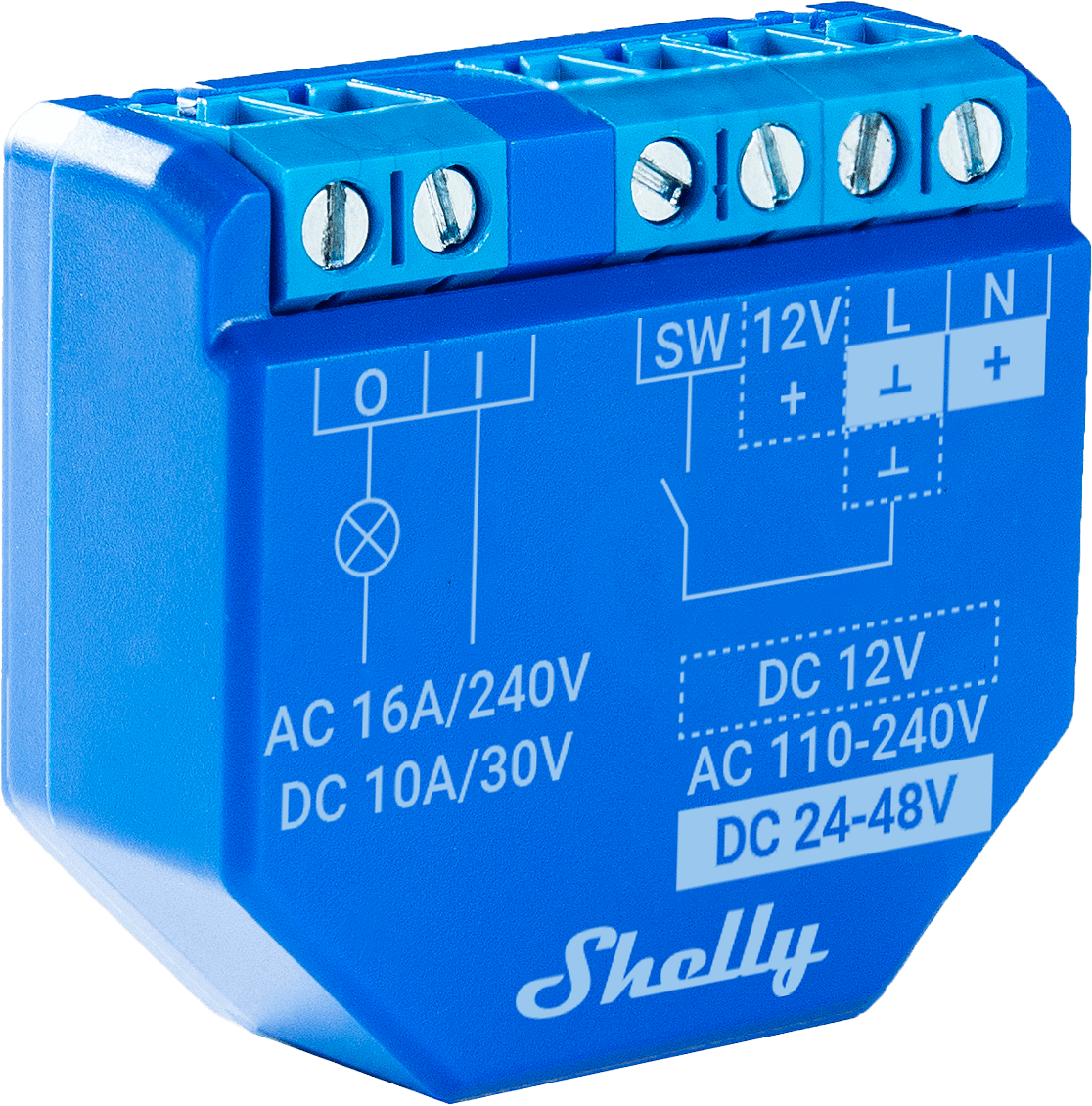

Shelly Plus 1

Shelly Plus 1 is a WiFi-operated relay switch, 1 channel 16A. It controls wide range of home appliances and office equipment (lights, power lines, security systems, heating radiators, air conditioners, etc.) from anywhere with the smallest WiFi-operated relay switch, with Bluetooth connectio.

Shelly Plus 1 is compatible with Amazon Alexa, Home Assistant, Smart Things and other 3rd party home automation platforms. Shelly Plus devices can also be grouped with all Shelly devices, as well as other smart home devices on the home network.

*Shelly Plus 1 does not require a Hub device.

Functionalities :

• Wi-Fi operated – Connect Shelly Plus 1 to your Wi-Fi network. No HUB required
• Bluetooth – Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App
• Low voltage support – Shelly Plus 1 can be powered by 110-240V AC, 12V DC, or 24-48V DC
• Dry contacts – Use a wide range of output voltage levels. Supports low voltages
• Extremely fast processor – For immediate command execution and notification
• Enhanced safety – Enhanced over-temperature protection with software thresholds for control and prevention of failures
• Enhanced security – MQTT and WSS support, TLS and custom certificates support for a broad range of use cases
• Improved API interface – Broad range of cloud connections and local integrations with much lower integration cost

Technical Characteristics:

• Power supply AC: 110-230V ±10%, 50/60Hz
• Maximum load : 16A
• Power supply DC: 24 – 240V / 12V stabilized
• Channels: 1 Channel
• Dry contacts: Yes
• Roller shutter mode: No
• Device temperature protection: Yes
• Overload protection: No
• Power measurement: No
• Working without a neutral line: No
• HTTP/HTTPS webhooks: Yes
• Custom scripts (mJs): Yes
• Operational temperature: -20°C to + 40 °C
• Device power consumption: < 1 W
• Intelligent On/Off : Yes
• Local and remote control : Yes
• Sunrise/Sunset : Yes
• Weekly Schedule : Yes
• UL Listed option : No
• Wireless : Yes
• Wi-Fi Protocol : 802.11 b/g/n
• Wi-Fi Radio frequency : 2412 – 2484 MHz
• Wi-Fi Radio signal power : 1mW
• Wi-Fi Range : Up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
• Bluetooth : Yes
• Size : 42 x 38 x 17mm
