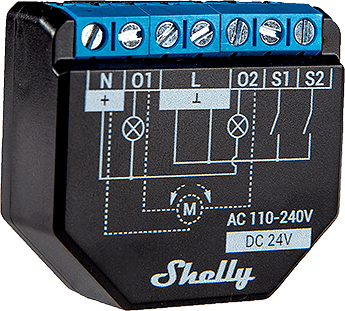

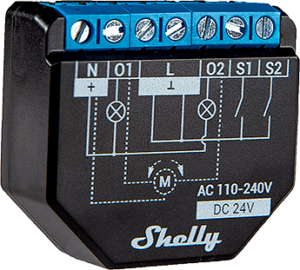

Shelly Plus 2PM is a one-phase, two channel smart relay supporting up to 10A per channel and 16A total current (18A peak). It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption. Cover (roller) control allows for the control and monitoring of roller shutters, blinds, curtains, gates, or other bi-directional AC motors.
Shelly Plus 2PM is compatible with Amazon Alexa, Home Assistant, Smart Things and other 3rd party home automation platforms. Shelly Plus devices can also be grouped with all Shelly devices, as well as other smart home devices on the home network.
*Shelly Plus 2PM does not require Hub device.
Functionalities :
- Wi-Fi operated – Connect Shelly Plus 2PM to your Wi-Fi network. No HUB required
- Bluetooth- Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App
- Wide range of voltages supported – Shelly Plus 2PM can be powered by 110-240 VAC and 24 VDC. Supports up to 10A per channel and 16A total.
- Cover (roller) control – Control two-directional AC motors and set your desired position
- Power metering with data storage – Shelly Plus 2PM provides precise monitoring of the power consumption
- Extremely fast processor – For immediate command execution and notification
- Enhanced safety – Enhanced over-temperature protection with software thresholds for control and prevention of failures
- Enhanced security – MQTT and WSS support, TLS and custom certificates support for a broad range of use cases
- Improved API interface – Broad range of cloud connections and local integrations with much lower integration cost
Technical Characteristics:
- Power supply AC: 110-240V ±10%, 50/60Hz
- Power supply DC: 24 V ±10%,
- Channels: 2 channels
- Max. current per channel: 10A
- Max. total device current: 16A (18A peak)
- Max. switching voltage: 240 VAC / 30 VDC
- Dry contacts: No
- Cover (roller) control: Yes, with position control – roller shutters, blinds, awnings, curtains, gates, shades, sliding door, garage door, bi-directional AC motors
- Overload protection: Yes
- Power measurement: Yes
- Overtemperature protection: Yes
- Working without a neutral line: No
- HTTP/HTTPS webhooks: Yes
- Custom scripts (mJs): Yes
- Operational temperature: 0 to + 40 °C
- Device power consumption: < 1.4 W
- Local and remote control: Yes
- Sunrise/Sunset: Yes
- Weekly Schedule: Yes
- UL Listed option: No
- Wireless: 802.11 b/g/n
- Wi-Fi Radio frequency: 2400 – 2500 MHz
- Wi-Fi Radio signal power: 1mW
- Wi-Fi Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
- Size: 42 x 38 x 17mm
