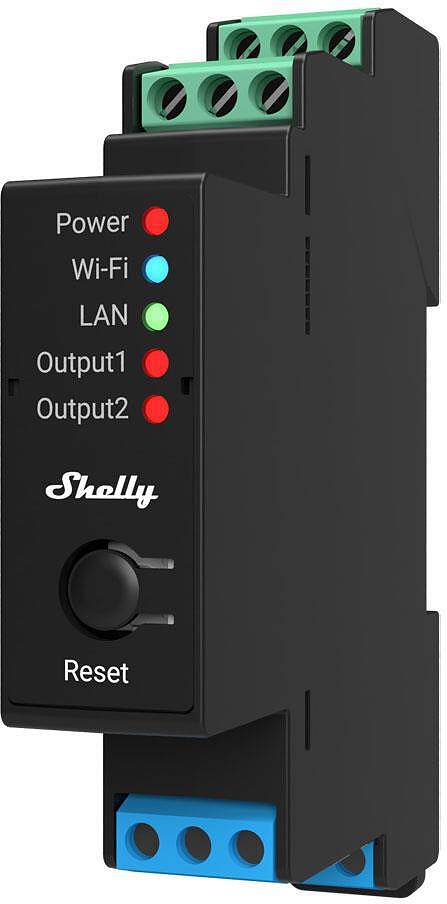

Shelly Pro 2PM

Shelly Pro 2PM is a professional 2- channel relay with Wi-Fi, LAN, and Bluetooth connection. Suitable for office and business facility automation with remote control and precise power management. DIN rail mountable insde a breaker box. Enhanced safety features and compatible with most used home automation platforms. Control lights, roller shutters, garage doors, gates, awnings, shades, pool covers, bi-directional AC motors.

Shelly Pro 2PM

• LAN, Wi-Fi, and Bluetooth connection
• 2 output, 16A each. Total device maximum of 25A
• Power metering on each channel and free storage data
• Cover (roller) control – roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
• DIN rail mountable

Features:

• Power supply AC : 110-240V ±10%, 50/60Hz
• Device temperature protection : Yes
• Bluetooth : Yes
• HTTP/HTTPS webhooks : Yes
• Custom scripts(mJs) : Yes
• Intelligent On/Off : Yes
• Ethernet : Yes

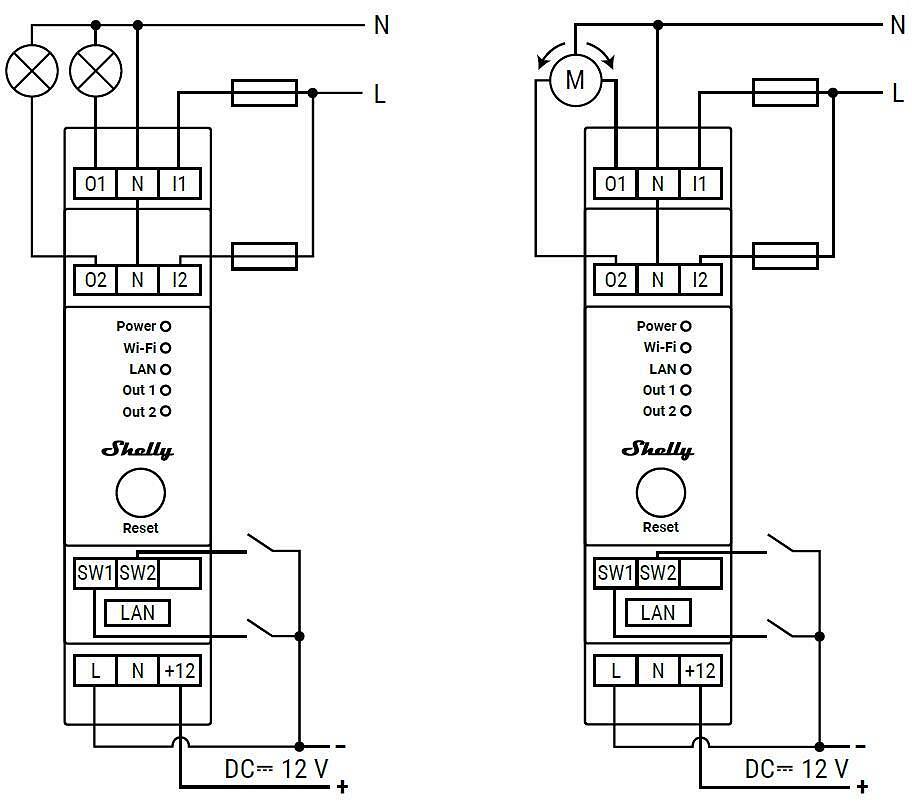

• Power supply DC : 12VDC ± 10%
• Dry contacts : Ne
• Roller shutter mode : No
• Overload protection : Yes
• Power measurement : Yes
• Channels : 2 Channels
• Maximum load : up to 16A per channel with up to 25A for the whole device
• Operational temperature : 0°C to + 40 °C
• Device power consumption : < 4 W
• Local and remote control : Yes
• Sunrise/Sunset : Yes
• Weekly Schedule : Yes
• UL Listed option : No
• Wireless/WiFi Protocol : 802.11 b/g/n
• Radio frequency : 2412 – 2484 MHz
• Radio signal power : 1mW
• Range : up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
• Size : 18,5mm x 89,5mm x 68,5mm
