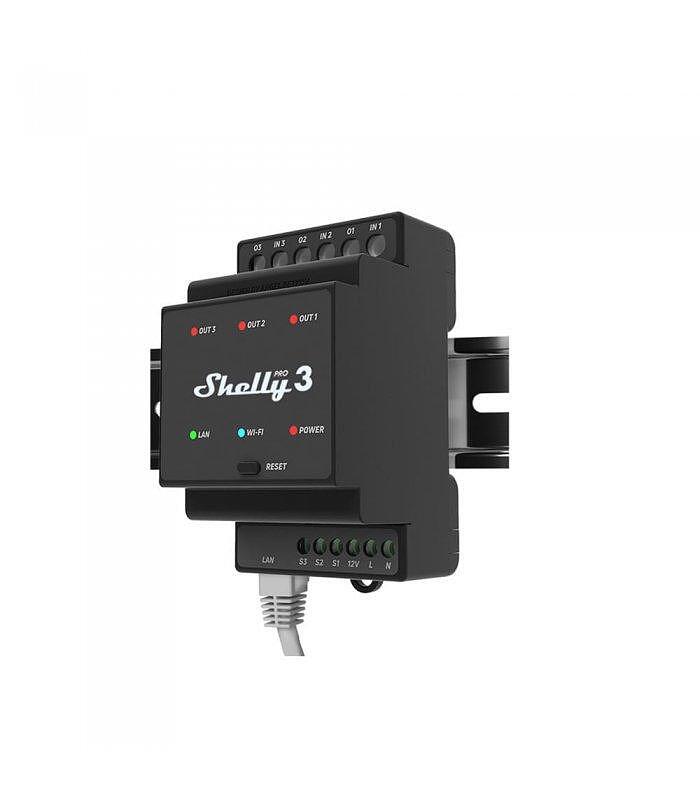

Shelly Pro 3 – Relay Switch 3x 16A

The Shelly Pro Line is a new, professional line of WiFi and Bluetooth relays with LAN connection and precise control, providing a superior home and facility automation experience. With advanced safety features, the Shelly Pro Line allows for full automation and control without the need for additional cables or wiring. It is suitable for homes, offices, stores, businesses, and manufacturing facilities, and is DIN rail mountable, which makes it easy to install and suitable for all types of buildings. It is especially perfect for new buildings and manufacturing facilities, where it can be fully automated based on your specific needs. The Shelly Pro Line also has enhanced safety features such as temperature protection, overpower protection, overvoltage protection, and flame retardancy. The device does not require a hub to function and can be controlled directly through your smartphone with the Shelly Cloud App. It is also fully compatible with Amazon Alexa, Home Assistant, SmartThings, and other third-party home automation platforms.

Features :

• HTTP/HTTPS WEBHOOKS FOR QUICK CONNECTION – Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control another compatible equipment or 3 rd party automation system.
• SCRIPTING FOR CUSTOM AUTOMATION – Shelly Pro line fully supports mjS scripting, allowing customers to create own features and functionalities! The allow multiple scripts to be executed together
• SMART ACTIONS FOLLOWING THE SUNRISE/SUNSET
• CUSTOM AUTOMATION WITH WEEKLY SCHEDULING

Technical Characteristics:

• Power supply 110-240 VAC, 50/60 Hz;
• Max load per channel: 16 A
• Total max. current of all outputs 48 A
• Complies with EU standards: RE Directive 2014/53/EU; LVD 2014/35/EU; EMC 2014/30/EU; RoHS2 2011/65/EU
• Working temperature: -20°C to 40°C
• Max RF output power: 13.35 dBm
• Wireless/WiFi Protocol: 802.11 b/g/n (2.4 GHz)
• Frequency: 2412 – 2472 MHz
• Operational range (depending on local conditions): up to 50 m outdoors, up to 30 m indoors
• Electrical consumption: < 3 W
• Wire cross section range: 0.5 – 1.5 mm² (blue), 0.5 – 2.5 mm² (green)
