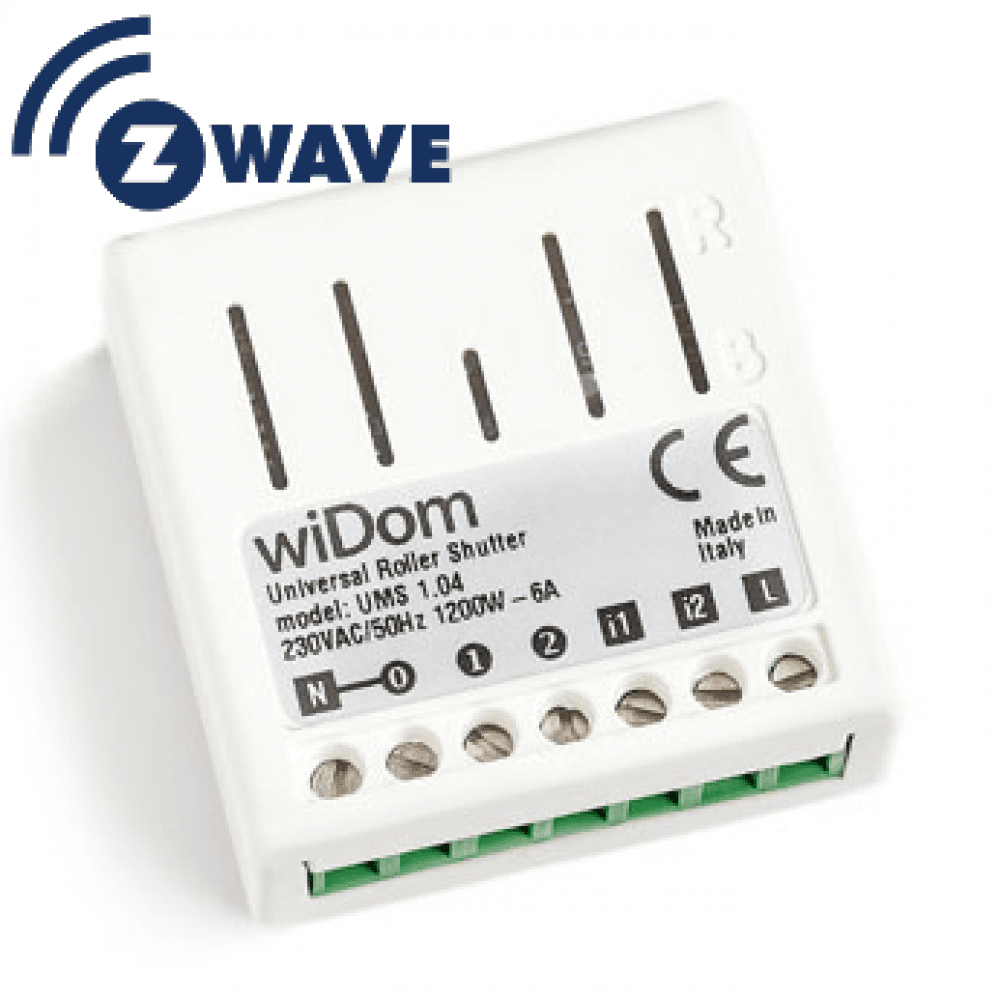

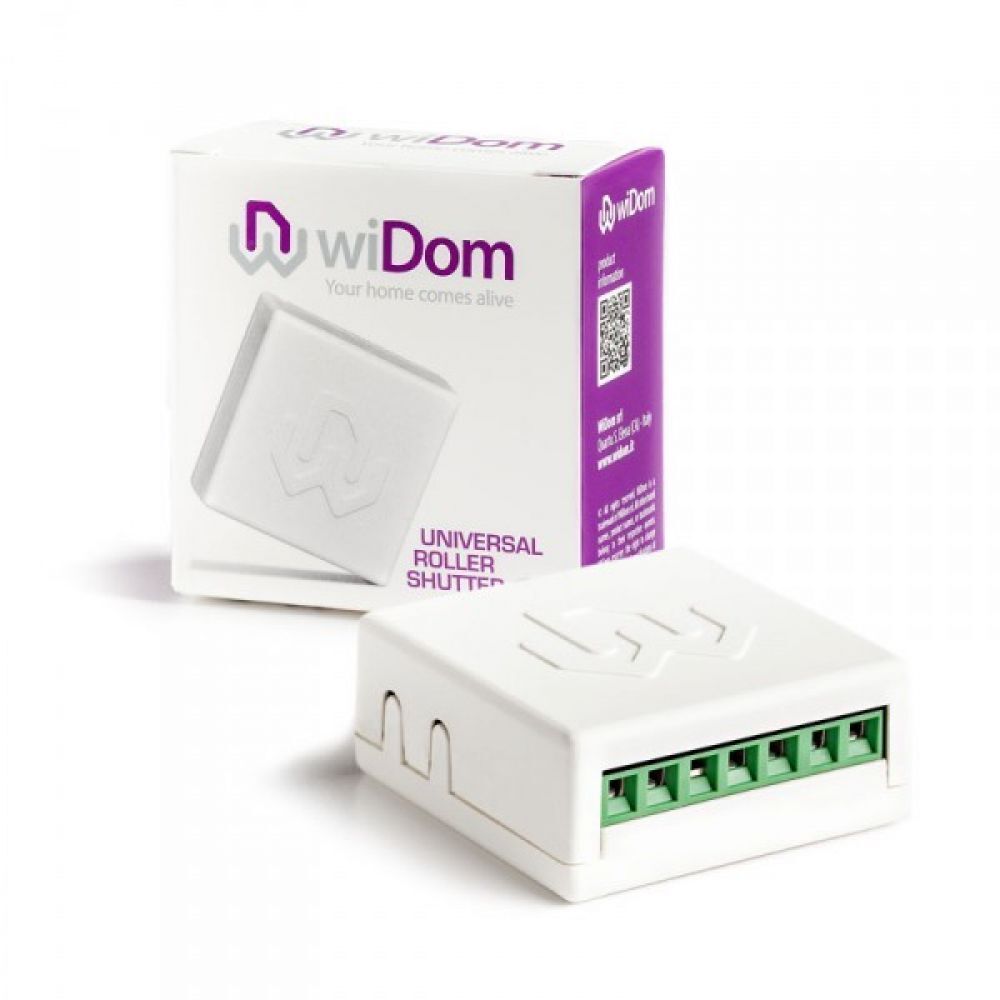

wiDom Universal Roller Shutter

Radio controlled, designed to work with electric motors for roller blinds, awnings and others. It can be controlled by a radio signal or by a switch directly connected to the module. In the event of a power failure, the system automatically performs calibration.

The system can keep two preferential positions: one for opening movement(up) to the preferred position and one for closing movement(down). These positions are activated by the user by pressing the Up or Down button twice, respectively.

The system is able to respond to alarms from other devices, such as CO2 levels, broken glass, floods and more.

Fully configurable to meet different requirements and ready to use at the same time, without any additional configuration.

Features:

• Power supply: 230V 50/60 Hz
• Radio frequency: 868.4MHz
• Range up to 60m outdoors and up to 30m indoors.
• Consumption <230 mW in standby mode, <500 mW with engine running.

Possible device states:

When the Up/Down button is held down, the motor moves in the corresponding direction and stops when the button is released.

When the Up/Down button is pressed twice, the blind moves until it reaches the predefined position.
