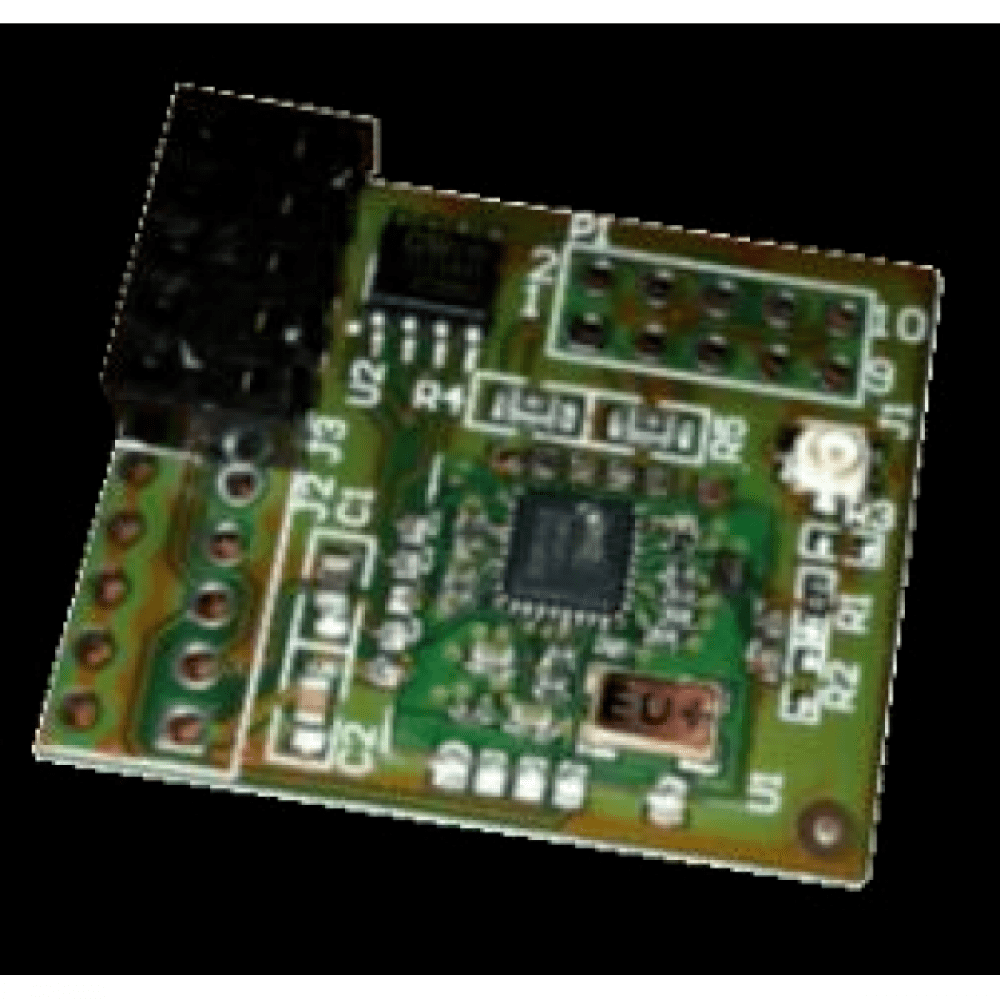

ZME_SERIAL Circuit Board

ZME_SERIAL is a small board that connects a serial interface to a wireless Z-Wave network. The connection is made via a 5×1 jumper connector, which can be used both in the normal position and in the reverse. The outputs are 3.3V, TXD, RXD, GND, NC. The module uses Z-Wave 300 chip with loaded Z-Wave.me firmware and 32K EEPROM. It has an additional 2×5 pin connector compatible with the Sigma Designs programmer.
